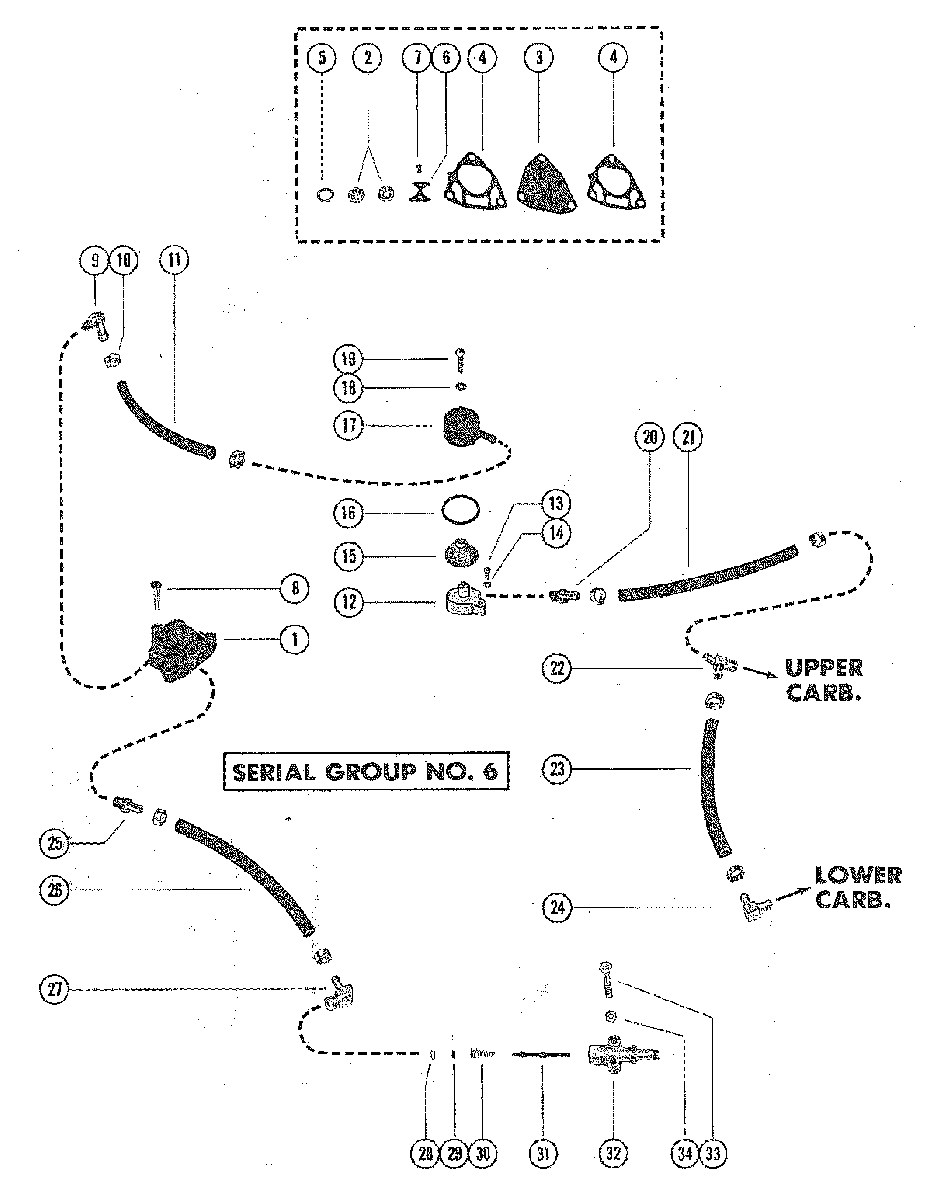

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP NO. 6) для Mercury - 850 (4 CYL.) 7010108 THRU 7071372

  • №
    Артикул
    Название
  • 1
    58888A4 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084276 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A5 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-69067 SCREW, PUMP MOUNTING (1 3/8")
    SCREW, PUMP MOUNTING (1 3/8")
  • 9
    22-19688 FITTING, FUEL PUMP (OUTLET)
    FITTING, FUEL PUMP (OUTLET)
  • 10
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 11
    32-8M0108355 FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
    FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
  • 12
    70929 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 13
    10-70939 SCREW, BASE TO TRANSFER PORT COVER
    SCREW, BASE TO TRANSFER PORT COVER
  • 14
    12-20533 WASHER, BASE SCREW
    WASHER, BASE SCREW
  • 15
    35-59072 SCREEN, FILTER - INLET
    SCREEN, FILTER - INLET
  • 16
    25-35480 "O" RING, COVER TO HOUSING
    "O" RING, COVER TO HOUSING
  • 17
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 18
    27-25848 GASKET, NYLON - FILTER COVER SCREW
    GASKET, NYLON - FILTER COVER SCREW
  • 19
    10-37370 SCREW, COVER TO FUEL PUMP (5/8")
    SCREW, COVER TO FUEL PUMP (5/8")
  • 20
    22-64705 FITTING, FILTER BASE
    FITTING, FILTER BASE
  • 21
    32-8M0108355 FUEL LINE, FILTER COVER TO CARBURETOR (8 7/8")
    FUEL LINE, FILTER COVER TO CARBURETOR (8 7/8")
  • 22
    22-66328 FITTING, TEE - UPPER CARBURETOR
    FITTING, TEE - UPPER CARBURETOR
  • 23
    32-8M0108355 FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")
    FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")
  • 24
    22-19688 FITTING, ELBOW - LOWER CARBURETOR
    FITTING, ELBOW - LOWER CARBURETOR
  • 25
    22-64705 FITTING, FUEL LINE TO FUEL PUMP (INLET)
    FITTING, FUEL LINE TO FUEL PUMP (INLET)
  • 26
    32-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (12 1/2")
    FUEL LINE, ADAPTOR TO FUEL PUMP (12 1/2")
  • 27
    22-63981 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 28
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 29
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 30
    24-30189 SPRING, ADAPTOR STEM
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
    SPRING, ADAPTOR STEM
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
  • 31
    30185Q3 STEM, CHECK UNIT ADAPTOR
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
    STEM, CHECK UNIT ADAPTOR
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
  • 32
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
    ADAPTOR, CHECK UNIT (FUEL LINE)
    UNITED STATES 4153349 AND BELOW
    AUSTRALIA 8030639 AND BELOW
    BELGIUM 9086163 AND BELOW
    CANADA 7054482 AND BELOW
  • 30
    24-23067T SPRING, ADAPTOR STEM
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    SPRING, ADAPTOR STEM
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
  • 31
    23069 STEM, CHECK UNIT ADAPTOR
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    STEM, CHECK UNIT ADAPTOR
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
  • 32
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    ADAPTOR, CHECK UNIT (FUEL LINE)
    UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
  • 33
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 34
    11-826709109 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
