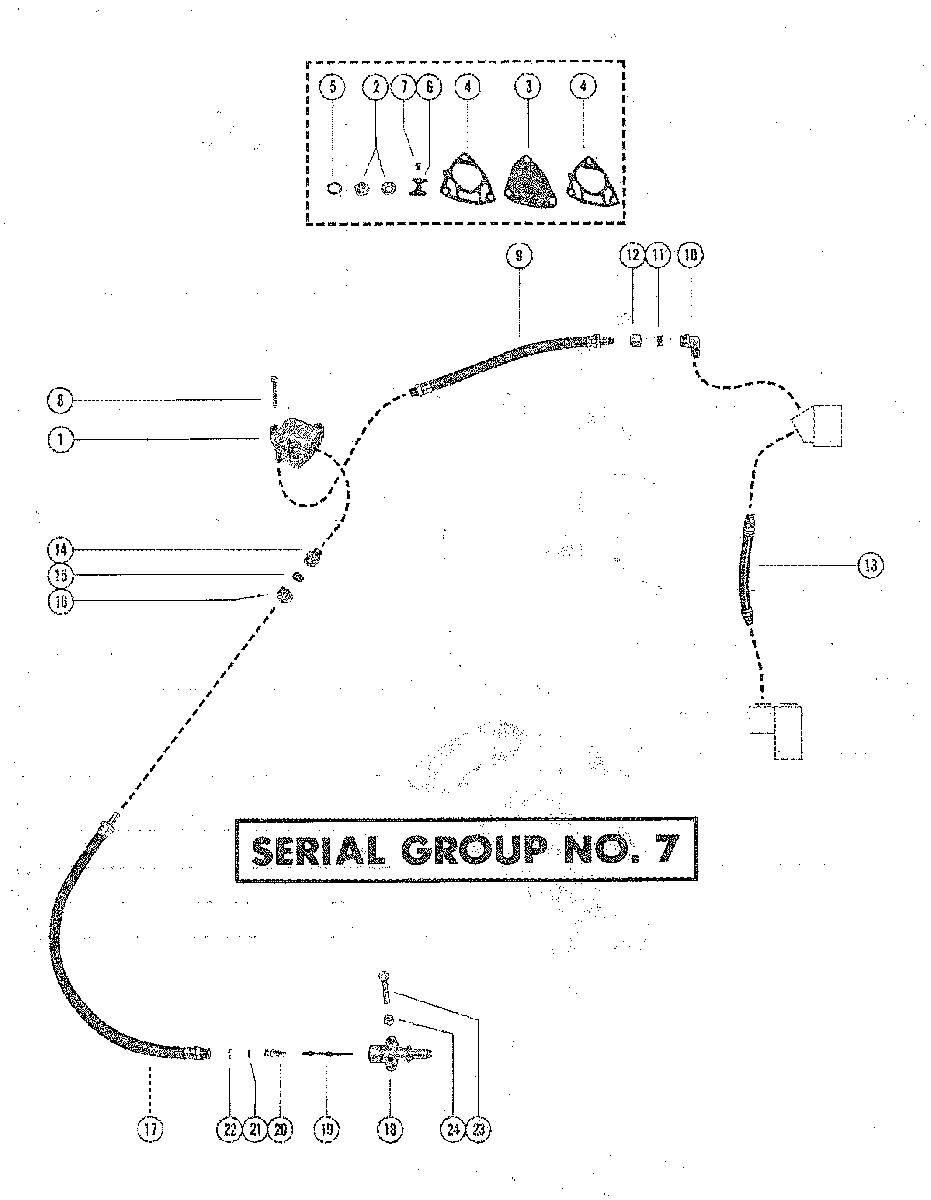

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP NO. 7) для Mercury - 850 (4 CYL.) 7010108 THRU 7071372

  • №
    Артикул
    Название
  • 1
    58888A4 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084276 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A5 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 8
    10-69067 SCREW, PUMP MOUNTING (1 3/8")
    SCREW, PUMP MOUNTING (1 3/8")
  • 9
    32-55827A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")
    FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")
  • 10
    22-59351 ELBOW, UPPER CARBURETOR
    ELBOW, UPPER CARBURETOR
  • 11
    22-30175 SLEEVE, UPPER CARBURETOR ELBOW
    SLEEVE, UPPER CARBURETOR ELBOW
  • 12
    22-30177 NUT, UPPER CARBURETOR ELBOW
    NUT, UPPER CARBURETOR ELBOW
  • 13
    32-59352 FUEL LINE, CARBURETOR TO CARBURETOR (6 5/8")
    FUEL LINE, CARBURETOR TO CARBURETOR (6 5/8")
  • 14
    22-30468 CONNECTOR, FUEL PUMP
    CONNECTOR, FUEL PUMP
  • 15
    22-30175 SLEEVE, CONNECTOR
    SLEEVE, CONNECTOR
  • 16
    22-30177 NUT, CONNECTOR
    NUT, CONNECTOR
  • 17
    32-55829 FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (15")
    FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (15")
  • 18
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 19
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 20
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 21
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 22
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 23
    10-88488 SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
    SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
  • 23
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 24
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
