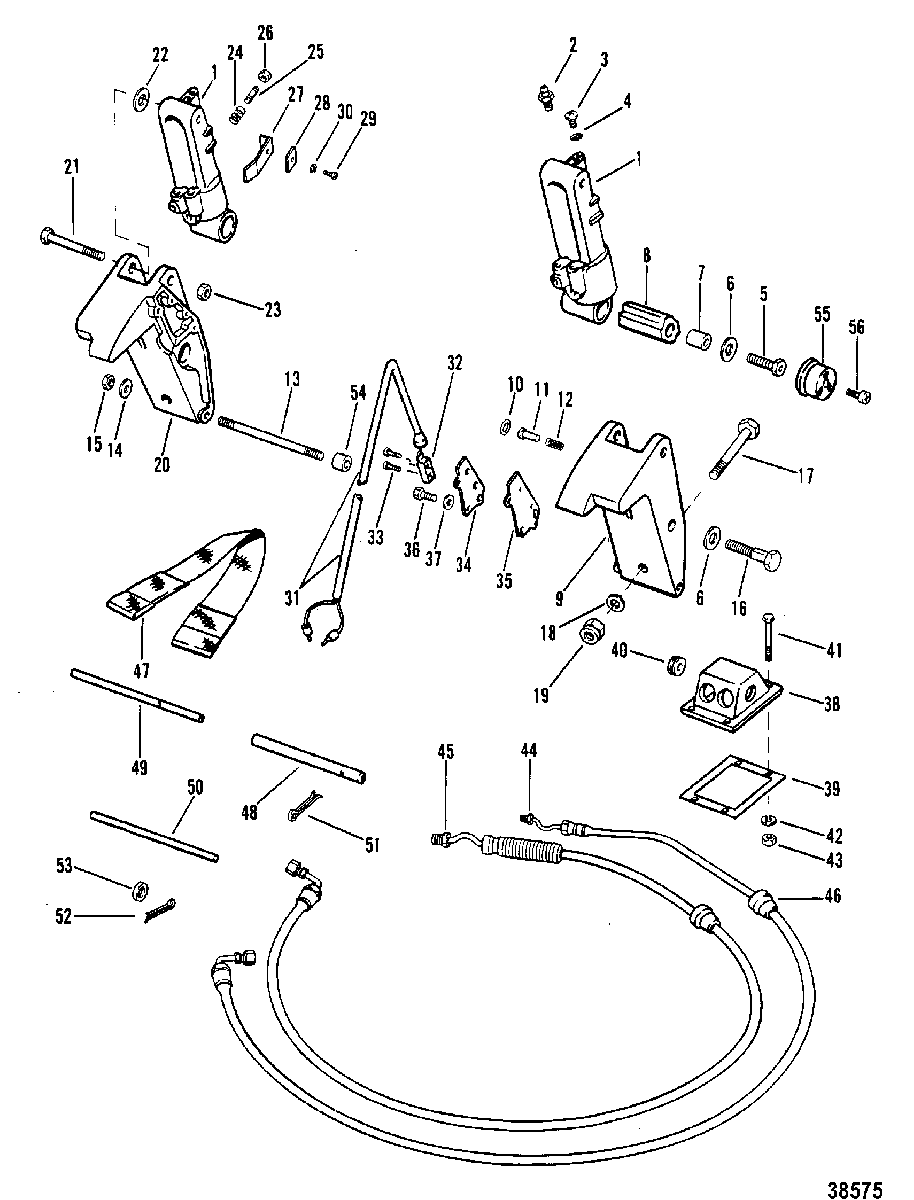

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900
-
№АртикулНазвание
-
192194A14 TRIM CYLINDER
(IDENTIFY BY CASTING #78439)TRIM CYLINDER
(IDENTIFY BY CASTING #78439) -
192194A14 TRIM CYLINDER
(IDENTIFY BY NO CASTING #)TRIM CYLINDER
(IDENTIFY BY NO CASTING #) -
222-74036 FITTING, Grease, TRIM CYLINDERFITTING, Grease, TRIM CYLINDER
-
310-45265 SCREW, (#10-32 x .3125), BLEEDSCREW, (#10-32 x .3125), BLEED
-
425-45016 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
510-45264 SCREW, (.500-20 x 1.500), TRIM CYLINDER
WITH TAPPED HOLESCREW, (.500-20 x 1.500), TRIM CYLINDER
WITH TAPPED HOLE -
510-92050 SCREW, (.500-20 x 1.500), TRIM CYLINDER
WITHOUT TAPPED HOLESCREW, (.500-20 x 1.500), TRIM CYLINDER
WITHOUT TAPPED HOLE -
612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRIM CYLINDER BOLTWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRIM CYLINDER BOLT
-
723-45280 SPACER, TRIM CYLINDER - LOWERSPACER, TRIM CYLINDER - LOWER
-
823-94907A1 BUSHING, RUBBER - TRIM CYLINDERBUSHING, RUBBER - TRIM CYLINDER
-
989108A3 BRACKET, TRIM CYLINDER (PORT)BRACKET, TRIM CYLINDER (PORT)
-
1026-70608 SEAL, Oil, PORT BRACKETSEAL, Oil, PORT BRACKET
-
1189290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1224-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1316-45282 STUD, (.312-24 x 16.620), MOUNTING BRACKETSTUD, (.312-24 x 16.620), MOUNTING BRACKET
-
1413-26993 LOCKWASHER, (.312), MOUNTING BRACKET STUDLOCKWASHER, (.312), MOUNTING BRACKET STUD
-
1511-28770 NUT, (.312-24) Stainless Steel, MOUNTING BRACKET STUDNUT, (.312-24) Stainless Steel, MOUNTING BRACKET STUD
-
1610-45263 SCREW, (.500-20 x .2.250), MOUNTING BRACKETSCREW, (.500-20 x .2.250), MOUNTING BRACKET
-
1710-68298 BOLT, (.375-16 x 3.250), MOUNTING BRACKET TO TRANSOMBOLT, (.375-16 x 3.250), MOUNTING BRACKET TO TRANSOM
-
1710-89673 SCREW, (.375-16 x 5.00), MOUNTING BRACKET TO TRANSOMSCREW, (.375-16 x 5.00), MOUNTING BRACKET TO TRANSOM
-
1812-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1911-82671112 NUT, MOUNTING BRACKET BOLTNUT, MOUNTING BRACKET BOLT
-
2089111T BRACKET, TRIM CYLINDER (STARBOARD)BRACKET, TRIM CYLINDER (STARBOARD)
-
2110-45328 SCREW, (.437-20 x 3.560), TRIM CYLINDER TO MOUNTING BRACKETSCREW, (.437-20 x 3.560), TRIM CYLINDER TO MOUNTING BRACKET
-
2212-37807 WASHER, TRIM CYLINDER SCREW
(STARBOARD ONLY)WASHER, TRIM CYLINDER SCREW
(STARBOARD ONLY) -
2311-20696 NUT, TRIM CYLINDER SCREWNUT, TRIM CYLINDER SCREW
-
2424-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2516-8M0034461 STUD, (#10-32 x .930), ADJUSTING - CUT-OUT LIMIT SWITCHSTUD, (#10-32 x .930), ADJUSTING - CUT-OUT LIMIT SWITCH
-
2611-859124 NUT, (#10-32) Stainless Steel, JAM - LIMIT SWITCH ADJUSTING STUDNUT, (#10-32) Stainless Steel, JAM - LIMIT SWITCH ADJUSTING STUD
-
2799897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2886967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2910-68513 SCREW, (#10-32 x .375) Stainless Steel, RETAINING PLATE AND CAMSCREW, (#10-32 x .375) Stainless Steel, RETAINING PLATE AND CAM
-
3013-26996 LOCKWASHER, (#10) Stainless Steel, RETAINING PLATE AND CAM SCREWLOCKWASHER, (#10) Stainless Steel, RETAINING PLATE AND CAM SCREW
-
3145326A2 SWITCH ASSEMBLY, CUT- OUT LIMITSWITCH ASSEMBLY, CUT- OUT LIMIT
-
3223-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCHBUSHING, RUBBER - CUT-OUT LIMIT SWITCH
-
3310-47255 SCREW, (#4-40 x .625), CUT OUT LIMIT SWITCHSCREW, (#4-40 x .625), CUT OUT LIMIT SWITCH
-
3489272 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3527-892731 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3610-34994 SCREW, (#10-32 x 1.00) Stainless Steel, LIMIT SWITCH COVERSCREW, (#10-32 x 1.00) Stainless Steel, LIMIT SWITCH COVER
-
3712-38833 WASHER, LIMIT SWITCH COVER SCREWWASHER, LIMIT SWITCH COVER SCREW
-
3887774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3927-87775 GASKET, INLET COVERGASKET, INLET COVER
-
4025-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
4110-32866 SCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOATSCREW, (#10-32 x 2.00) Stainless Steel, INLET COVER TO BOAT
-
4213-26996 LOCKWASHER, (#10) Stainless Steel, INLET COVER SCREWLOCKWASHER, (#10) Stainless Steel, INLET COVER SCREW
-
4311-68219 NUT, (#10-32) Stainless Steel, INLET COVER SCREWNUT, (#10-32) Stainless Steel, INLET COVER SCREW
-
4432-88005 HOSE
TRIM-CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.HOSE
TRIM-CYLINDER TO CONTROL VALVE (5') - 12/32" O.D. -
4532-88006 HOSE, LIFT-CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)HOSE, LIFT-CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
-
4623-35977 GROMMET, RUBBER (3/8" I.D. - 1" LONG)GROMMET, RUBBER (3/8" I.D. - 1" LONG)
-
4623-35977 GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)
-
4625-12602002 GROMMET, RUBBER (7/16" I.D. -7/8" LONG)GROMMET, RUBBER (7/16" I.D. -7/8" LONG)
-
4773519A1 STRAP, Tilt StopSTRAP, Tilt Stop
-
4869259 TUBE, MOUNTING - TILT STOPTUBE, MOUNTING - TILT STOP
-
4977669 PIN, MOUNTING TUBEPIN, MOUNTING TUBE
-
5063473 TUBE, CUSHIONTUBE, CUSHION
-
5118-36002 COTTER PIN, MOUNTING TUBE PINCOTTER PIN, MOUNTING TUBE PIN
-
5218-45882 COTTER PIN, TILT PIN RETAININGCOTTER PIN, TILT PIN RETAINING
-
5312-39304 WASHER, TILT PINWASHER, TILT PIN
-
5423-89112 BUSHING, MOUNTING BRACKETBUSHING, MOUNTING BRACKET
-
5570679 COVER, TRIM CYLINDER
NOT USED ON LATE MODELSCOVER, TRIM CYLINDER
NOT USED ON LATE MODELS -
5610-37655 SCREW, (#10-32 x .500), TRIM CYLINDER COVER
NOT USED ON LATE MODELSSCREW, (#10-32 x .500), TRIM CYLINDER COVER
NOT USED ON LATE MODELS
