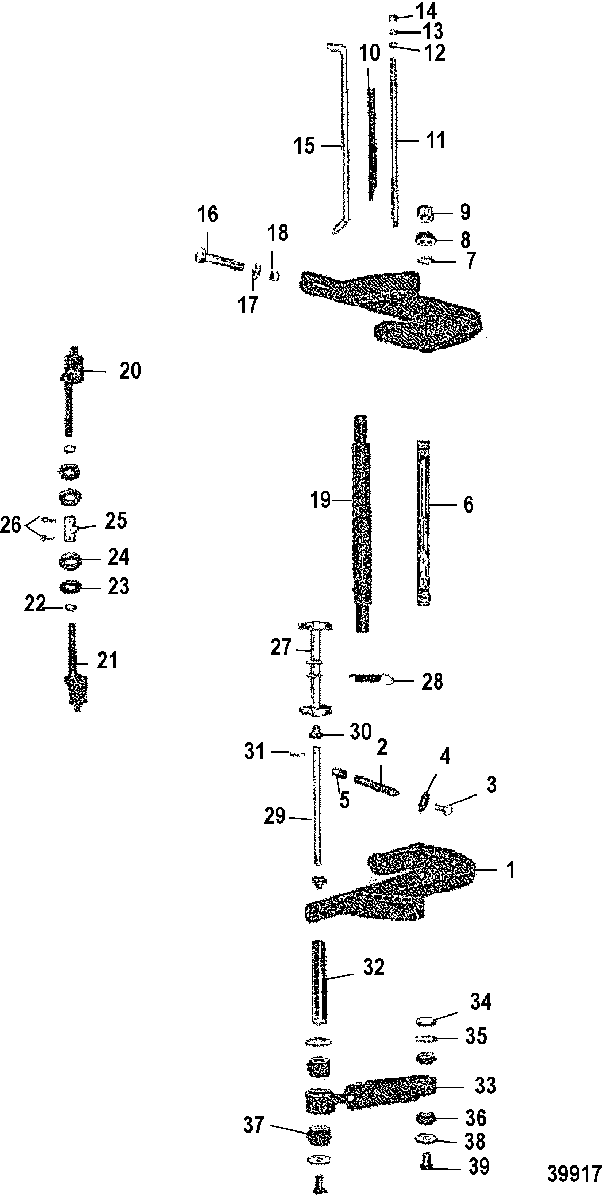

CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900

  • №
    Артикул
    Название
  • 1
    1440-8394A2 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    10-78495 SCREW, (.312-24 x .680), THUMB SCREW
    SCREW, (.312-24 x .680), THUMB SCREW
  • 4
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    75043 CAP, THUMB SCREW
    CAP, THUMB SCREW
  • 6
    8M0041936 TILT TUBE
    TILT TUBE
  • 7
    13-89634 WASHER, TILT TUBE
    WASHER, TILT TUBE
  • 8
    11-858869 NUT, (.875-14), TILT TUBE
    NUT, (.875-14), TILT TUBE
  • 9
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 10
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 11
    16-59625 STUD
    NON POWER TRIM
    STUD
    NON POWER TRIM
  • 12
    12-36001 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 13
    13-26993 LOCKWASHER, (.312), CLAMP BRACKET STUD
    LOCKWASHER, (.312), CLAMP BRACKET STUD
  • 14
    11-28770 NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
    NUT, (.312-24) Stainless Steel, CLAMP BRACKET STUD
  • 15
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    NON POWER TRIM
    PIN ASSEMBLY, Tilt Lock
    NON POWER TRIM
  • 16
    10-68298 BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM
    BOLT, (.375-16 x 3.250), CLAMP BRACKET TO TRANSOM
  • 17
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 16
    10-68299 SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO TRANSOM
    SCREW, (.375-16 x 3.00) Stainless Steel, CLAMP BRACKET TO TRANSOM
  • 17
    12-68300 WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT
    WASHER, (..88 x .39 x .06), CLAMP BRACKET BOLT
  • 18
    11-82671112 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 19
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 20
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 21
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 22
    25-627021 O-RING, (.301 x .070), TILT LOCK
    O-RING, (.301 x .070), TILT LOCK
  • 23
    12-76388 WASHER, TILT LOCK
    WASHER, TILT LOCK
  • 24
    26-22734 SEAL, Oil, SWIVEL BRACKET (TILT LOCK)
    SEAL, Oil, SWIVEL BRACKET (TILT LOCK)
  • 25
    79659 COUPLING, TILT LOCK
    COUPLING, TILT LOCK
  • 26
    18-47959 COTTER PIN, TILT LOCK COUPLING
    COTTER PIN, TILT LOCK COUPLING
  • 27
    87431 LOCK ASSEMBLY, Reverse
    NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below
    LOCK ASSEMBLY, Reverse
    NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below
  • 27
    14664A3 LOCK ASSEMBLY, Reverse
    NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up
    LOCK ASSEMBLY, Reverse
    NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up
  • 28
    24-78203A2 SPRING
    NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below
    SPRING
    NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below
  • 28
    24-78203A2 SPRING
    NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up
    SPRING
    NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up
  • 29
    56349 SHAFT, REVERSE LOCK PIVOT
    NON POWER TRIM
    SHAFT, REVERSE LOCK PIVOT
    NON POWER TRIM
  • 30
    23-69132 BUSHING, PIVOT SHAFT
    NON POWER TRIM
    BUSHING, PIVOT SHAFT
    NON POWER TRIM
  • 31
    18-45882 COTTER PIN, LOCK TO SHAFT
    NON POWER TRIM
    COTTER PIN, LOCK TO SHAFT
    NON POWER TRIM
  • 32
    55-696531 PIN, LOWER SHOCK MOUNTING
    PIN, LOWER SHOCK MOUNTING
  • 33
    55-58780A7 SHOCK ABSORBER MERCURY
    NON POWER TRIM
    SHOCK ABSORBER MERCURY
    NON POWER TRIM
  • 34
    23-73203 BUSHING, UPPER SHOCK BUSHING TO BRACKET
    NON POWER TRIM
    BUSHING, UPPER SHOCK BUSHING TO BRACKET
    NON POWER TRIM
  • 35
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    NON POWER TRIM
    WASHER, UPPER BUSHING RETAINER (INNER)
    NON POWER TRIM
  • 36
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    NON POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    NON POWER TRIM
  • 37
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    NON POWER TRIM
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    NON POWER TRIM
  • 38
    12-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
    NON POWER TRIM
    WASHER, UPPER/LOWER SHOCK PIN (LOWER)
    NON POWER TRIM
  • 39
    10-69375 SCREW, UPPER AND LOWER SHOCK PIN
    NON POWER TRIM
    SCREW, UPPER AND LOWER SHOCK PIN
    NON POWER TRIM
  • -
    27-73645A87 GASKET SET
    GASKET SET
