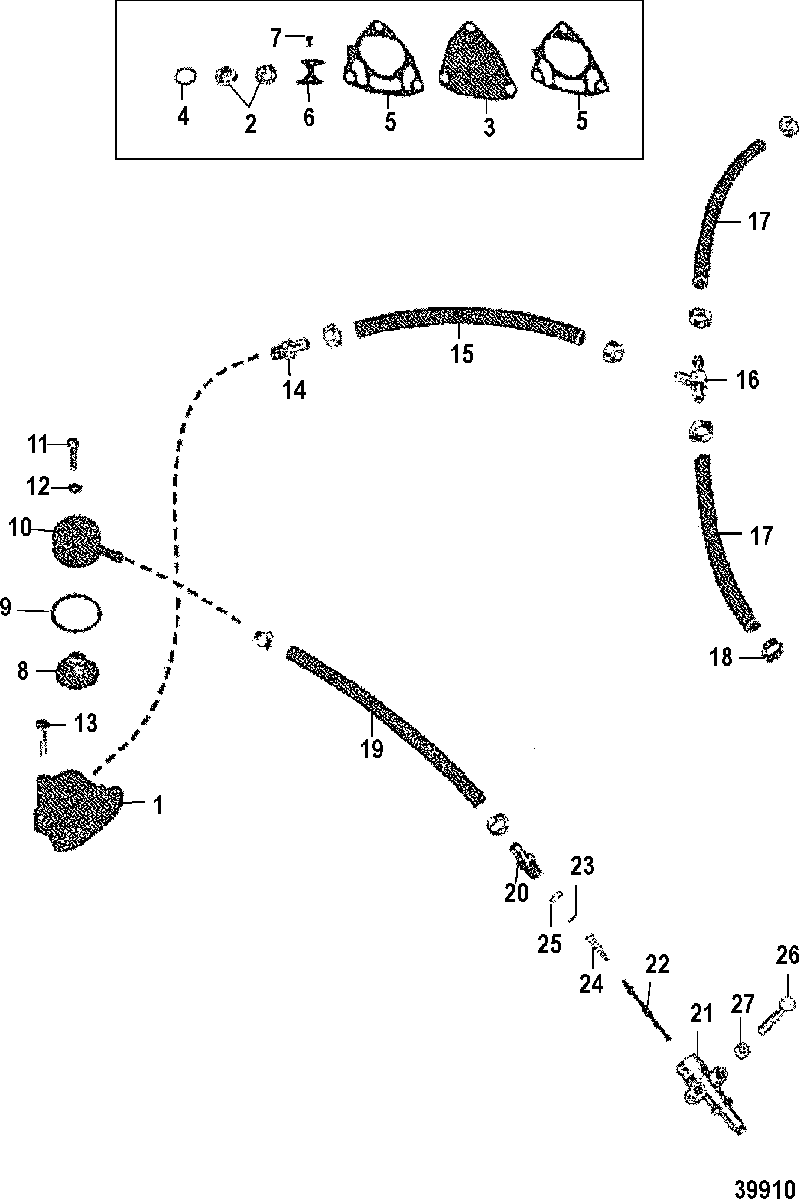

FUEL PUMP AND FUEL LINES для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 5582562 THRU 6432900

  • №
    Артикул
    Название
  • 1
    73434A5 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-8M0084276 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    55278A5 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    NSS NOT SOLD SEPARATE, GASKET, CHECK VALVE
    NOT SOLD SEPARATE, GASKET, CHECK VALVE
  • 5
    NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP
    NOT SOLD SEPARATE, GASKET, FUEL PUMP
  • 6
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 7
    10-43725 SCREW, CHECK VALVE TO FUEL PUMP (1/4")
    SCREW, CHECK VALVE TO FUEL PUMP (1/4")
  • 8
    35-73532 FILTER, Fuel
    FILTER, Fuel
  • 9
    25-35480 O-RING, (1.237 x .103), COVER TO FUEL PUMP
    O-RING, (1.237 x .103), COVER TO FUEL PUMP
  • 10
    35-14805A2 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 11
    10-37370 SCREW, (#10-32 x .580), COVER TO FUEL PUMP
    SCREW, (#10-32 x .580), COVER TO FUEL PUMP
  • 12
    27-25848 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 13
    10-70939 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")
    SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")
  • 13
    10-69067 SCREW, (.250-20 x 1.375), FUEL PUMP TO UPPER TRANSFER COVER
    SCREW, (.250-20 x 1.375), FUEL PUMP TO UPPER TRANSFER COVER
  • 14
    22-64705 FITTING, FUEL PUMP (OUTLET)
    FITTING, FUEL PUMP (OUTLET)
  • 15
    32-8M0108355 LINE, Fuel, TEE TO FUEL PUMP (11")
    LINE, Fuel, TEE TO FUEL PUMP (11")
  • 16
    22-73318 TEE, Plastic, FUEL LINE
    TEE, Plastic, FUEL LINE
  • 17
    32-8M0108355 LINE, Fuel, CARBURETOR TO TEE TO CARBURETOR (3")
    LINE, Fuel, CARBURETOR TO TEE TO CARBURETOR (3")
  • 18
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 19
    32-8M0108355 LINE, Fuel, ADAPTOR TO FUEL PUMP (15")
    LINE, Fuel, ADAPTOR TO FUEL PUMP (15")
  • 20
    22-63187 FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
    FITTING, Barb (.250-18), FUEL LINE TO ADAPTOR
  • 21
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 73419 CASTING ON REF. #21
    ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 73419 CASTING ON REF. #21
  • 21
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 30186 CASTING ON REF. #21
    ADAPTOR, CHECK UNIT (FUEL LINE)
    IDENTIFIED BY 30186 CASTING ON REF. #21
  • 22
    23069 STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 73419 CASTING ON REF. #21
    STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 73419 CASTING ON REF. #21
  • 22
    30185Q3 STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 30186 CASTING
    STEM, CHECK UNIT ADAPTOR
    IDENTIFIED BY 30186 CASTING
  • 23
    25-16524 O-RING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #21
    O-RING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #21
  • 23
    25-16524 O-RING, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING
    O-RING, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING
  • 24
    24-23067T SPRING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #21
    SPRING, ADAPTOR STEM
    IDENTIFIED BY 73419 CASTING ON REF. #21
  • 24
    31089 STRIP, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING
    STRIP, ADAPTOR STEM
    IDENTIFIED BY 30186 CASTING
  • 25
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 26
    10-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTOM COWL
  • 27
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • -
    27-73645A87 GASKET SET
    GASKET SET
