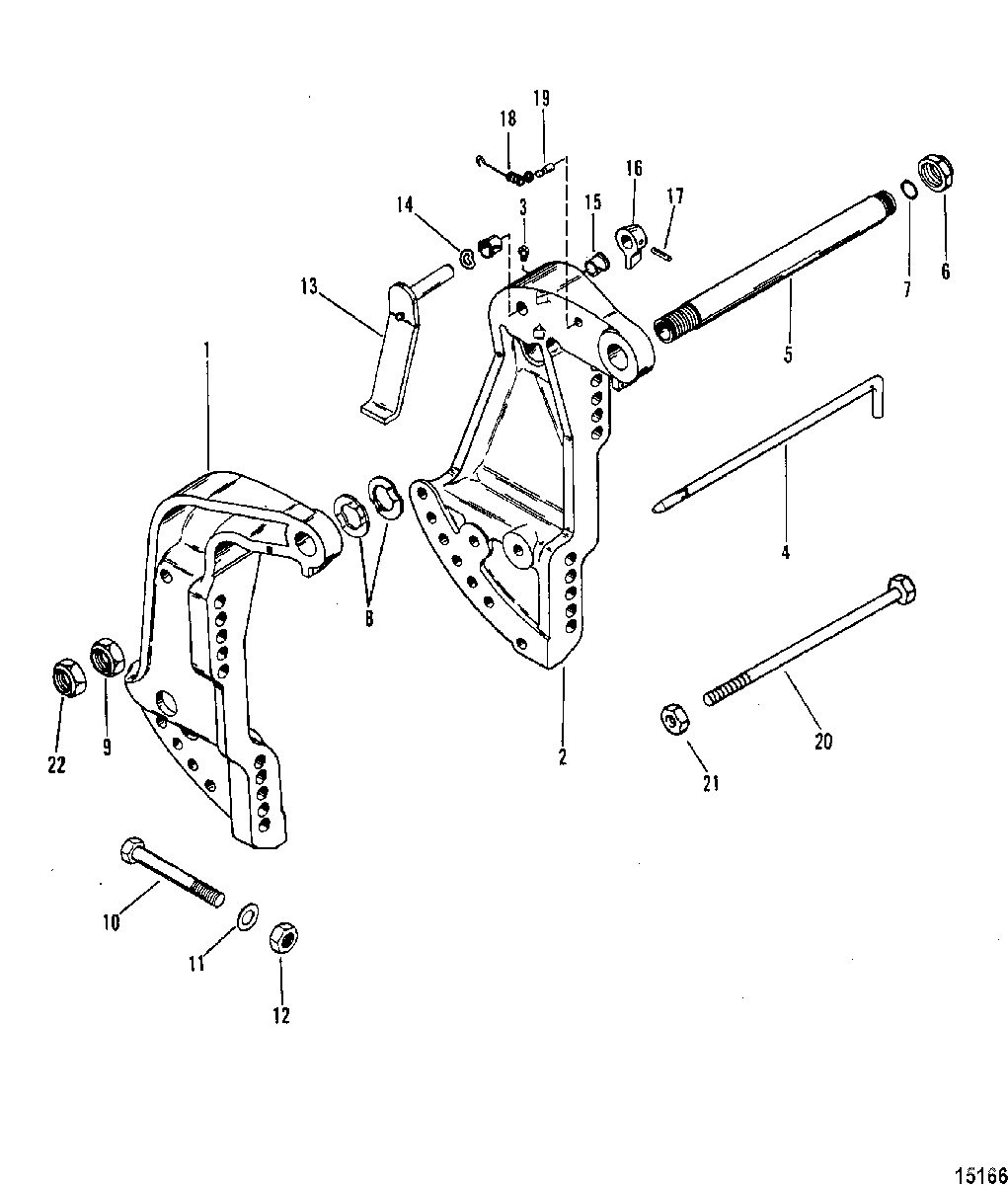

Transom Bracket для Mercury - 80 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    3401-8718F7 BRACKET ASSEMBLY, Transom, Starboard, Black
    BRACKET ASSEMBLY, Transom, Starboard, Black
  • 2
    3400-8716A8 BRACKET ASSEMBLY, Transom, Port, Black
    BRACKET ASSEMBLY, Transom, Port, Black
  • 1
    3401-8718F8 BRACKET ASSEMBLY, Transom, Starboard, Gray
    BRACKET ASSEMBLY, Transom, Starboard, Gray
  • 2
    3400-8716A9 BRACKET ASSEMBLY, Transom, Port, Gray
    BRACKET ASSEMBLY, Transom, Port, Gray
  • 1
    3401-8718F8 BRACKET ASSEMBLY, Transom, Starboard, Oyster
    BRACKET ASSEMBLY, Transom, Starboard, Oyster
  • 2
    3400-8716A9 BRACKET ASSEMBLY, Transom, Port
    BRACKET ASSEMBLY, Transom, Port
  • 3
    22-98727 FITTING, Grease, Port, Transcom Bracket
    FITTING, Grease, Port, Transcom Bracket
  • 4
    17-8M0026068 PIN ASSEMBLY, Tilt Lock, Non-Power Trim
    PIN ASSEMBLY, Tilt Lock, Non-Power Trim
  • 5
    826125A1 TILT TUBE
    TILT TUBE
  • 6
    11-82671327 NUT, Tilt Tube (1"-14) Black
    NUT, Tilt Tube (1"-14) Black
  • 6
    11-82671327 NUT, Tilt Tube (1"-14) Gray
    NUT, Tilt Tube (1"-14) Gray
  • 7
    25-45711 O-RING, (.612 x .103), Tilt Tube
    O-RING, (.612 x .103), Tilt Tube
  • 8
    13-88750 WASHER, Tilt Tube
    WASHER, Tilt Tube
  • 9
    11-858869 NUT, (.875-14), Tilt Tube (.875)
    NUT, (.875-14), Tilt Tube (.875)
  • 10
    10-677551 SCREW, (.500-20 x 4.500), Transom Bracket To Transom
    SCREW, (.500-20 x 4.500), Transom Bracket To Transom
  • 11
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Transom Bracket Bolt
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Transom Bracket Bolt
  • 11
    12-24501 WASHER, Transom Bracket Bolt
    (Upper, Oyster)
    WASHER, Transom Bracket Bolt
    (Upper, Oyster)
  • 12
    11-91962 NUT, (.500-20), Transom Bracket Bolt
    NUT, (.500-20), Transom Bracket Bolt
  • 13
    8M0115104 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 14
    13-99611 WAVE WASHER, Tilt Lever
    WAVE WASHER, Tilt Lever
  • 15
    23-65830 NYLINER, Tilt Lever
    NYLINER, Tilt Lever
  • 16
    99633 KNOB, Tilt Lock Lever, Black
    KNOB, Tilt Lock Lever, Black
  • 16
    99633 KNOB, Tilt Lock Lever, Gray
    KNOB, Tilt Lock Lever, Gray
  • 16
    99633 KNOB, Tilt Lock Lever, Oyster
    KNOB, Tilt Lock Lever, Oyster
  • 17
    17-99615 PIN, Groove
    PIN, Groove
  • 18
    24-99622 SPRING
    SPRING
  • 19
    17-99604 PIN, Groove
    PIN, Groove
  • 20
    10-96930A1 BOLT ASSEMBLY, Tilt Lock, Power Trim
    BOLT ASSEMBLY, Tilt Lock, Power Trim
  • 21
    11-23161 NUT, (.375-24), Power Trim
    NUT, (.375-24), Power Trim
  • 22
    11-8M0041651 NUT, (.875-14), Power Trim
    NUT, (.875-14), Power Trim
