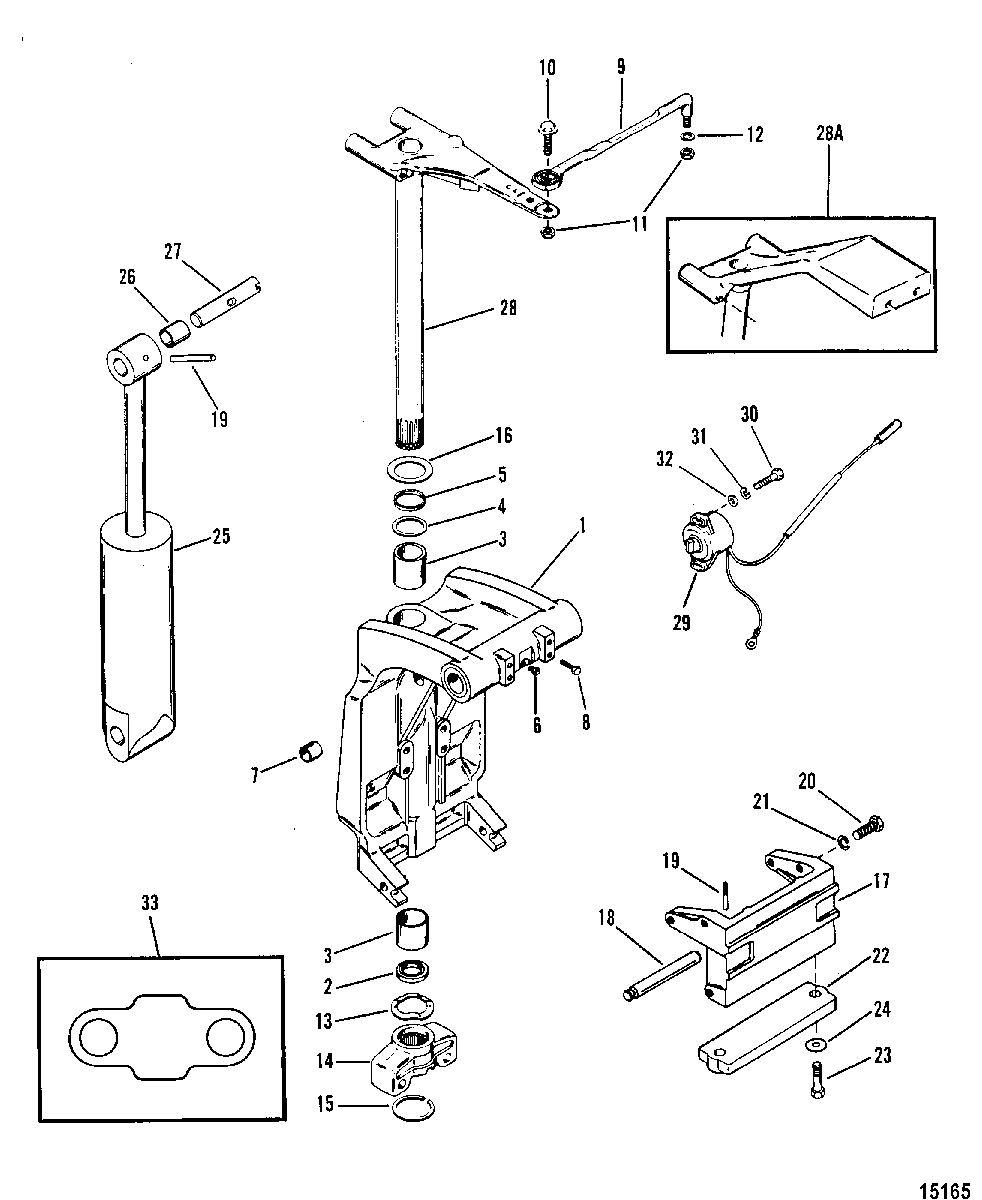

Swivel Bracket and Steering Arm для Mercury - 80 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
    SWIVEL BRACKET ASSEMBLY, Black
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
    SWIVEL BRACKET ASSEMBLY, Gray
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Oyster
    SWIVEL BRACKET ASSEMBLY, Oyster
  • 2
    26-87735 SEAL, Oil, Swivel Bracket, Lower
    SEAL, Oil, Swivel Bracket, Lower
  • 3
    23-818764 BUSHING, Swivel Bracket, Lower And Upper
    BUSHING, Swivel Bracket, Lower And Upper
  • 4
    25-33466 O-RING, Swivel Bracket, Upper
    O-RING, Swivel Bracket, Upper
  • 5
    23-67668 SPACER, Swivel Bracket, Upper
    SPACER, Swivel Bracket, Upper
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, Swivel Bracket
    BUSHING, Swivel Bracket
  • 8
    10-64014 SCREW, (.250-28 x .500), Swivel Bracket
    SCREW, (.250-28 x .500), Swivel Bracket
  • 9
    92876A12 LINK ASSEMBLY, Steering, Black And Gray
    LINK ASSEMBLY, Steering, Black And Gray
  • 10
    10-849838 SCREW, (.375-24 x 1.25)
    (Steering Link To Steering Arm 1.125 Inch Black And Gray)
    SCREW, (.375-24 x 1.25)
    (Steering Link To Steering Arm 1.125 Inch Black And Gray)
  • 11
    11-8M0042636 NUT, (.375-24), Steering Link Screw, Black And Gray
    NUT, (.375-24), Steering Link Screw, Black And Gray
  • 12
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    (Steering Link To Steering Arm Black And Gray
    WASHER, (.406 x .734 x .063) Stainless Steel
    (Steering Link To Steering Arm Black And Gray
  • 13
    13-78854 WAVE WASHER, Bottom Yoke
    WAVE WASHER, Bottom Yoke
  • 14
    42961A06 YOKE ASSEMBLY, Bottom, Black
    YOKE ASSEMBLY, Bottom, Black
  • 14
    42961A06 YOKE ASSEMBLY, Bottom, Gray
    YOKE ASSEMBLY, Bottom, Gray
  • 14
    42961A06 YOKE ASSEMBLY, Bottom, Oyster
    YOKE ASSEMBLY, Bottom, Oyster
  • 15
    53-67684 RING, Retaining, Bottom Yoke
    RING, Retaining, Bottom Yoke
  • 16
    12-67670 WASHER, Thrust, Swivel Bracket
    WASHER, Thrust, Swivel Bracket
  • 17
    99653 BRACKET, Shock Absorber
    Not Used With Power Trim
    BRACKET, Shock Absorber
    Not Used With Power Trim
  • 18
    99619 SHAFT, Shock Absorber
    (Lower, Not Used With Power Trim)
    SHAFT, Shock Absorber
    (Lower, Not Used With Power Trim)
  • 19
    17-821539 PIN, Groove
    (Shock Absorber, Not Used With Power Trim)
    PIN, Groove
    (Shock Absorber, Not Used With Power Trim)
  • 20
    10-4000377 SCREW, (M10 x 30)
    (Bracket, Not Used With Power Trim)
    SCREW, (M10 x 30)
    (Bracket, Not Used With Power Trim)
  • 21
    13-400258 LOCKWASHER, (M10) Stainless Steel
    (Bracket Screw, Not Used With Power Trim)
    LOCKWASHER, (M10) Stainless Steel
    (Bracket Screw, Not Used With Power Trim)
  • 22
    97-818298Q1 ANODE ASSEMBLY
    (Not Used With Power Trim)
    ANODE ASSEMBLY
    (Not Used With Power Trim)
  • 23
    10-4000332 SCREW, (M6 x 35), Anode
    (Not Used With Power Trim)
    SCREW, (M6 x 35), Anode
    (Not Used With Power Trim)
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
    (Not Used With Power Trim)
    WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
    (Not Used With Power Trim)
  • 25
    55-99724T15 SHOCK ABSORBER
    (Not Used With Power Trim Black
    SHOCK ABSORBER
    (Not Used With Power Trim Black
  • 25
    55-99724T15 SHOCK ABSORBER
    (Not Used With Power Trim Gray)
    SHOCK ABSORBER
    (Not Used With Power Trim Gray)
  • 25
    55-99724T15 SHOCK ABSORBER
    (Not Used With Power Trim Oyster)
    SHOCK ABSORBER
    (Not Used With Power Trim Oyster)
  • 26
    23-821207 BUSHING, Shock Absorber
    (Not Used With Power Trim)
    BUSHING, Shock Absorber
    (Not Used With Power Trim)
  • 27
    99625002 SHAFT, Shock Absorber, Upper
    (Not Used With Power Trim)
    SHAFT, Shock Absorber, Upper
    (Not Used With Power Trim)
  • 28
    99661A2 SWIVEL PIN ASSEMBLY, Round End, Black
    SWIVEL PIN ASSEMBLY, Round End, Black
  • 28
    99661A4 SWIVEL PIN ASSEMBLY, Mariner, Gray
    SWIVEL PIN ASSEMBLY, Mariner, Gray
  • 28
    99661A18 SWIVEL PIN ASSEMBLY
    (Round End Oyster, Sea Ray)
    SWIVEL PIN ASSEMBLY
    (Round End Oyster, Sea Ray)
  • 28
    99661A18 SWIVEL PIN ASSEMBLY
    (Round End Gray, Sea Ray)
    SWIVEL PIN ASSEMBLY
    (Round End Gray, Sea Ray)
  • 28
    99661A35 SWIVEL PIN ASSEMBLY, Stub End, Black
    SWIVEL PIN ASSEMBLY, Stub End, Black
  • 28
    99661A35 SWIVEL PIN ASSEMBLY, Stub End, Gray
    SWIVEL PIN ASSEMBLY, Stub End, Gray
  • 28A
    12079A8 SWIVEL PIN ASSEMBLY, Handle Models, Black
    SWIVEL PIN ASSEMBLY, Handle Models, Black
  • 28A
    12079A9 SWIVEL PIN ASSEMBLY
    Handle Models Gray
    SWIVEL PIN ASSEMBLY
    Handle Models Gray
  • 29
    8M0098273 SENDER ASSEMBLY, Trim
    Handle Models Oyster
    SENDER ASSEMBLY, Trim
    Handle Models Oyster
  • 30
    10-852368 SCREW, (#10-24 x .750), Trim Sender, Oyster
    SCREW, (#10-24 x .750), Trim Sender, Oyster
  • 31
    13-26996 LOCKWASHER, (#10) Stainless Steel
    Trim Sendsr Score Oyster
    LOCKWASHER, (#10) Stainless Steel
    Trim Sendsr Score Oyster
  • 32
    12-89302 WASHER, (.203 x .406 x .040), Trim Sender Screw
    WASHER, (.203 x .406 x .040), Trim Sender Screw
  • 33
    11288001 BUMPER, Bottom Yoke
    X-Long
    BUMPER, Bottom Yoke
    X-Long
