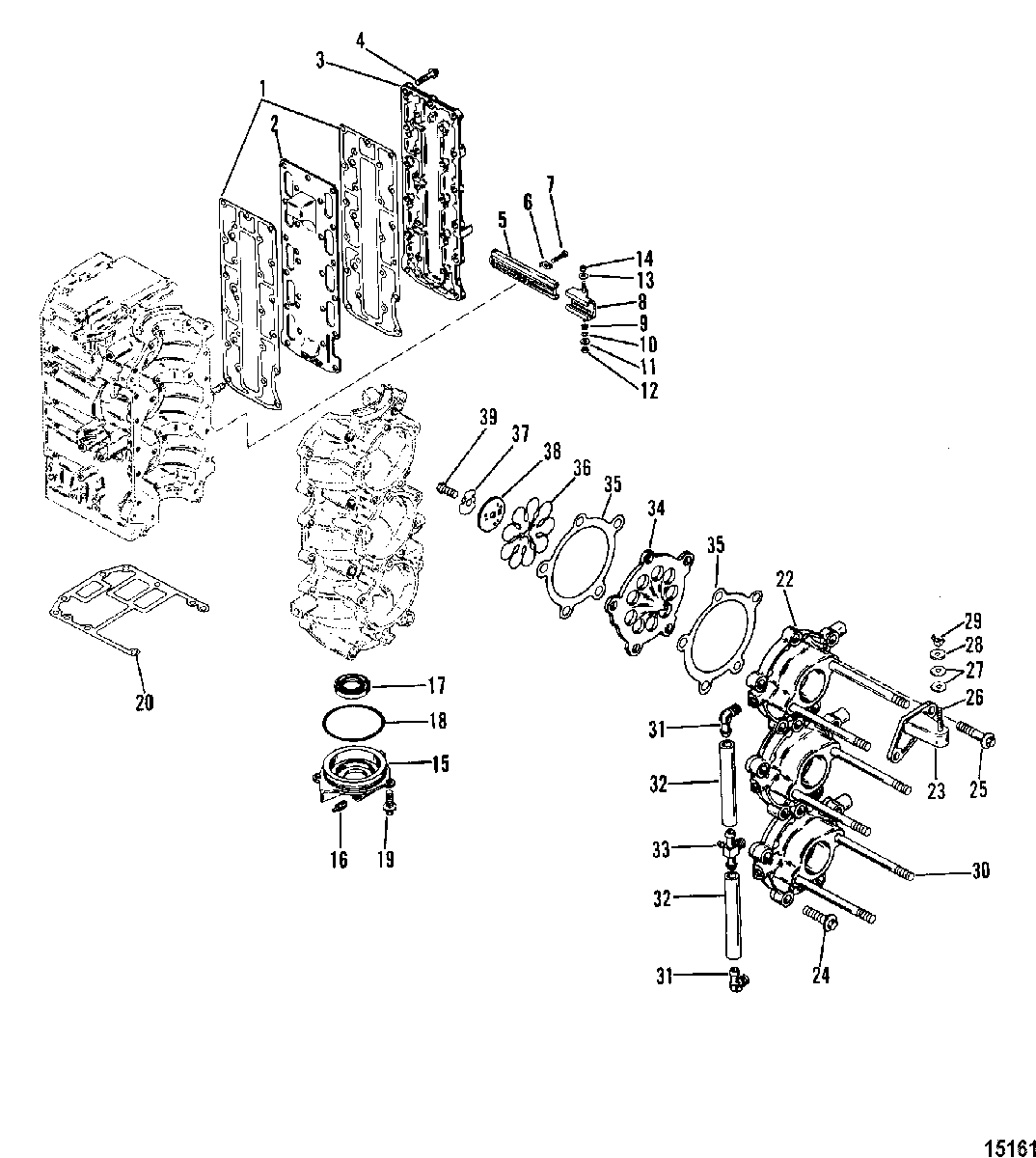

Induction Manifold and Reed Block для Mercury - 80 (3 CYL.) 0B240451 THRU 0C221999

  • №
    Артикул
    Название
  • 1
    27-43004009 GASKET, Baffle Plate
    GASKET, Baffle Plate
  • 2
    42878A2 PLATE, Baffle
    PLATE, Baffle
  • 3
    42878A2 COVER, Exhaust Manifold
    COVER, Exhaust Manifold
  • 4
    10-82127335 SCREW, (M8 x 1.25 x 35) , Exhaust Manifold, Baffle Plate
    SCREW, (M8 x 1.25 x 35) , Exhaust Manifold, Baffle Plate
  • 5
    42881A1 SHIFT RAIL ASSEMBLY
    SHIFT RAIL ASSEMBLY
  • 6
    14-42981 TAB WASHER
    TAB WASHER
  • 7
    10-40001134 SCREW, (M8 x 25), Shift Rail
    SCREW, (M8 x 25), Shift Rail
  • 8
    988851 SLIDE, Shift Control
    SLIDE, Shift Control
  • 9
    23-42994 BUSHING, Slide
    BUSHING, Slide
  • 10
    13-29720 WAVE WASHER, Slide
    WAVE WASHER, Slide
  • 11
    12-24664 WASHER, (M4 x 20), Slide
    WASHER, (M4 x 20), Slide
  • 12
    11-401386 NUT, (M6)
    NUT, (M6)
  • 13
    12-35459 WASHER
    WASHER
  • 14
    11-401386 NUT, (M6)
    NUT, (M6)
  • 15
    1169-858552T2 END CAP ASSEMBLY, Lower
    END CAP ASSEMBLY, Lower
  • 16
    21-426585 CHECK VALVE
    CHECK VALVE
  • 17
    26-41953 SEAL
    SEAL
  • 18
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 19
    10-4010825 SCREW, Lower End Cap
    SCREW, Lower End Cap
  • 20
    27-430075 GASKET, Powerhead
    GASKET, Powerhead
  • 22
    884296T MANIFOLD, Induction
    MANIFOLD, Induction
  • 23
    42923 BRACKET, Flywheel Cover
    BRACKET, Flywheel Cover
  • 24
    10-82127335 SCREW, (M8 x 1.25 x 35) , Manifold
    SCREW, (M8 x 1.25 x 35) , Manifold
  • 25
    10-81742740 SCREW, Bracket And Manifold
    SCREW, Bracket And Manifold
  • 26
    16-8M0045410 STUD, Flywheel Cover
    STUD, Flywheel Cover
  • 27
    12-49221 WASHER, Cover Stud
    WASHER, Cover Stud
  • 28
    12-22887 WASHER, Cover Stud
    WASHER, Cover Stud
  • 29
    11-816874 WING NUT, Cover Stud
    WING NUT, Cover Stud
  • 30
    16-824470 STUD, Carburetor
    STUD, Carburetor
  • 31
    22-996642 ELBOW
    ELBOW
  • 32
    32-8M0108349 TUBING
    TUBING
  • 33
    22-432881 TEE
    TEE
  • 34
    42963A4 REED BLOCK ASSEMBLY (70)
    REED BLOCK ASSEMBLY (70)
  • 34
    42963A11 REED BLOCK ASSEMBLY (75/80/90) Handle
    REED BLOCK ASSEMBLY (75/80/90) Handle
  • 35
    27-139376 GASKET, Reed Block
    GASKET, Reed Block
  • 36
    34-43018A2 REED SET (70)
    REED SET (70)
  • 36
    34-43018A1 REED SET (75/80/90) Handle
    REED SET (75/80/90) Handle
  • 37
    14-429821 TAB WASHER
    TAB WASHER
  • 38
    42924 RETAINER, Reed
    RETAINER, Reed
  • 39
    10-4000171 SCREW, (M6 x 16), Reed To Reed Block
    SCREW, (M6 x 16), Reed To Reed Block
  • -
    27-43004A99 GASKET SET
    GASKET SET
