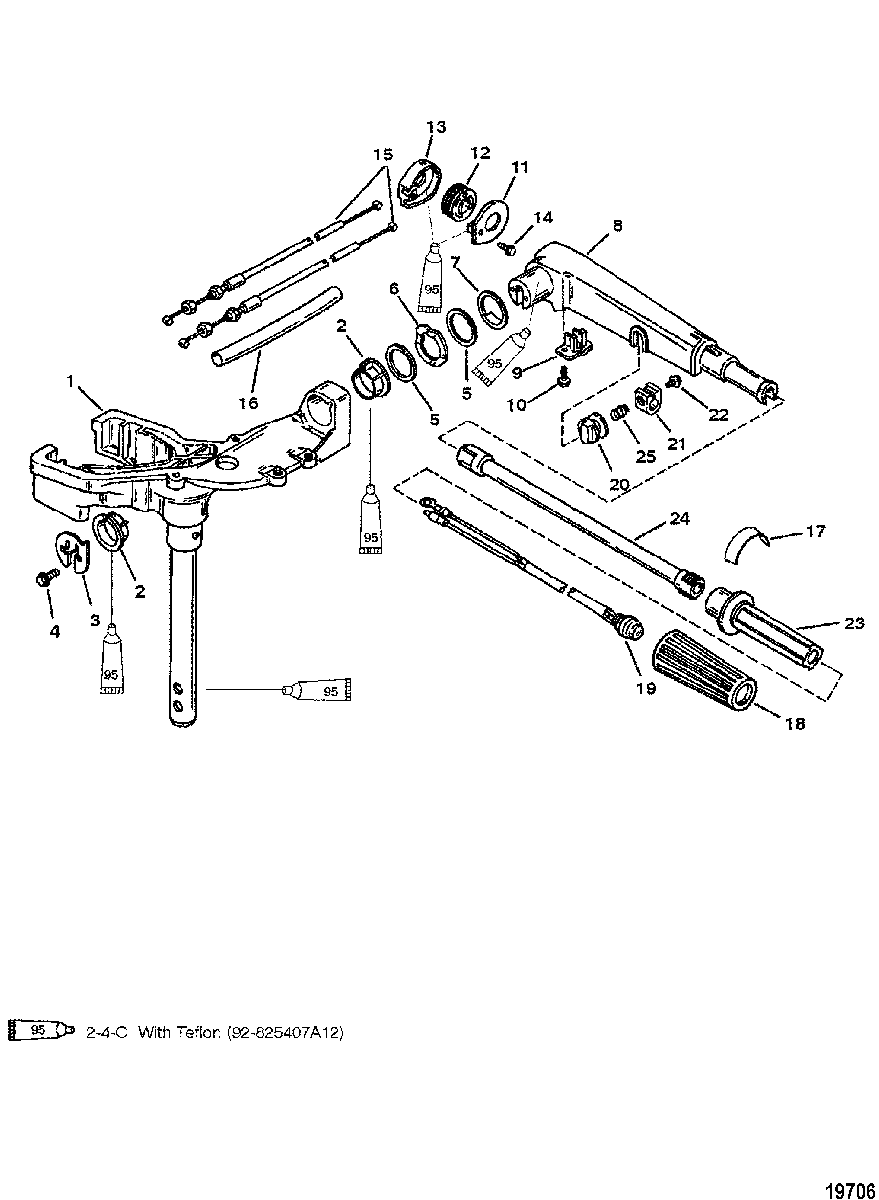

Swivel Head and Steering Handle для Mercury - 8 9792200 THRU 0P016999
-
№АртикулНазвание
-
142213A24 SWIVEL HEAD
(BLACK)SWIVEL HEAD
(BLACK) -
142213A25 SWIVEL HEAD
(GRAY)SWIVEL HEAD
(GRAY) -
142213A24 SWIVEL HEAD
(TRACKER GRAPHITE GRAY)SWIVEL HEAD
(TRACKER GRAPHITE GRAY) -
223-823939 BUSHINGBUSHING
-
3822147 PLATE, Tiller Handle
(USE WITH 6MM SCREWS REF #4)PLATE, Tiller Handle
(USE WITH 6MM SCREWS REF #4) -
38221471 PLATE
(USE WITH 5MM SCREWS REF #4)PLATE
(USE WITH 5MM SCREWS REF #4) -
410-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
512-822145 WASHERWASHER
-
613-826792 WAVE WASHERWAVE WASHER
-
712-822146 WASHERWASHER
-
8821468A66 ARM ASSEMBLY, Steering Handle
(BLACK)ARM ASSEMBLY, Steering Handle
(BLACK) -
8821468A66 ARM ASSEMBLY, Steering Handle
(GRAY)ARM ASSEMBLY, Steering Handle
(GRAY) -
9822441 RETAINERRETAINER
-
1010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
11822148A3 COVER KIT
(HANDLE SHIFT)COVER KIT
(HANDLE SHIFT) -
11822148A2 COVER KIT
(SIDE SHIFT)COVER KIT
(SIDE SHIFT) -
12822150 PULLEYPULLEY
-
13NSS NOT SOLD SEPARATE, Pulley Case (PART OF REF. #11)NOT SOLD SEPARATE, Pulley Case (PART OF REF. #11)
-
1410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1543242T09 CABLE, Throttle
(HANDLE SHIFT)CABLE, Throttle
(HANDLE SHIFT) -
15432426 CABLE, Throttle
(SIDE SHIFT)CABLE, Throttle
(SIDE SHIFT) -
1685-9600910 SLEEVE
(HANDLE SHIFT)SLEEVE
(HANDLE SHIFT) -
1685-960099 SLEEVE, (12.00 Inches)
(SIDE SHIFT)SLEEVE, (12.00 Inches)
(SIDE SHIFT) -
1737-8242002 DECAL
(HANDLE SHIFT)DECAL
(HANDLE SHIFT) -
1737-8242004 DECAL
(SIDE SHIFT)DECAL
(SIDE SHIFT) -
1899589003 GRIPGRIP
-
1987-8M0104615 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
20821972T KNOB, ThrottleKNOB, Throttle
-
21892995 LOCK, ThrottleLOCK, Throttle
-
2210-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
23822429 HANDLE, Throttle
(HANDLE SHIFT)HANDLE, Throttle
(HANDLE SHIFT) -
23821465 HANDLE, Throttle
(SIDE SHIFT)HANDLE, Throttle
(SIDE SHIFT) -
24821463T01 TILLER TUBETILLER TUBE
-
2524-96203 SPRINGSPRING
