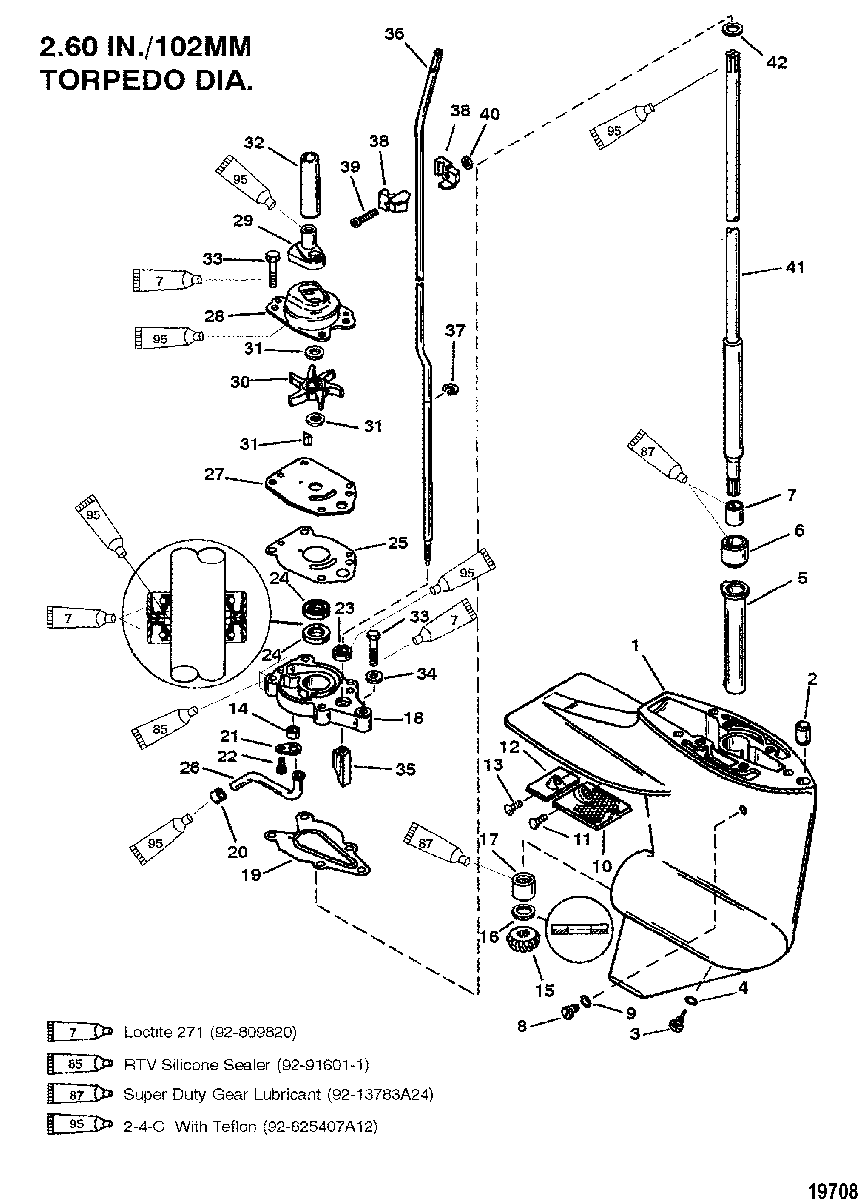

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mercury - 8 9792200 THRU 0P016999

  • №
    Артикул
    Название
  • -
    1666-8833T13 GEAR HOUSING ASSEMBLY
    (SHORT) BLACK
    GEAR HOUSING ASSEMBLY
    (SHORT) BLACK
  • -
    1666-8833T15 GEAR HOUSING ASSEMBLY
    (LONG) BLACK
    GEAR HOUSING ASSEMBLY
    (LONG) BLACK
  • -
    1666-8833T14 GEAR HOUSING ASSEMBLY
    (SHORT) GRAY
    GEAR HOUSING ASSEMBLY
    (SHORT) GRAY
  • -
    1666-8833T15 GEAR HOUSING ASSEMBLY
    (LONG) GRAY
    GEAR HOUSING ASSEMBLY
    (LONG) GRAY
  • -
    1666-8833T19 GEAR HOUSING ASSEMBLY, Complete
    (TRACKER GRAPHITE GRAY)
    GEAR HOUSING ASSEMBLY, Complete
    (TRACKER GRAPHITE GRAY)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
    (BLACK)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (BLACK)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Gray
    (GRAY)
    GEAR HOUSING ASSEMBLY, Basic-Gray
    (GRAY)
  • 1
    1666-8833A20 GEAR HOUSING ASSEMBLY
    (TRACKER GRAPHITE GRAY)
    GEAR HOUSING ASSEMBLY
    (TRACKER GRAPHITE GRAY)
  • 2
    23-12009 BUSHING, (.31 x .45 x .50)
    BUSHING, (.31 x .45 x .50)
  • 3
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 4
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 5
    822244A1 SLEEVE ASSEMBLY
    SLEEVE ASSEMBLY
  • 6
    23-823944 SLEEVE
    SLEEVE
  • 7
    23-823943 BUSHING
    BUSHING
  • 8
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 9
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 10
    35-421991 SCREEN
    SCREEN
  • 11
    10-13954 SCREW, (.250-14 x .88)
    SCREW, (.250-14 x .88)
  • 12
    97-42121Q02 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 13
    10-13954 SCREW, (.250-14 x .88)
    SCREW, (.250-14 x .88)
  • 14
    26-42133 SEAL
    SEAL
  • 15
    43-8219251 GEAR, Pinion - 13-26 (13 TEETH)
    GEAR, Pinion - 13-26 (13 TEETH)
  • 16
    12-41369 WASHER
    WASHER
  • 17
    31-22756 BEARING, Roller
    BEARING, Roller
  • 18
    46-42040T5 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 19
    27-192043 GASKET
    GASKET
  • 20
    26-33613 SEAL
    SEAL
  • 21
    42375 RETAINER
    RETAINER
  • 22
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 23
    25-822236 QUAD RING
    QUAD RING
  • 24
    26-413651 SEAL, Oil
    SEAL, Oil
  • 25
    27-19202001 GASKET, Water Pump Plate
    GASKET, Water Pump Plate
  • 26
    32-42185A1 TUBE ASSEMBLY, Water
    TUBE ASSEMBLY, Water
  • 27
    42200 FACE PLATE
    FACE PLATE
  • 28
    46-42089A2 COVER ASSEMBLY
    COVER ASSEMBLY
  • 29
    26-421021 SEAL
    SEAL
  • 30
    47-42038Q02 IMPELLER
    IMPELLER
  • 31
    28-42376A2 KEY ASSEMBLY
    KEY ASSEMBLY
  • 32
    444671 GUIDE
    GUIDE
  • 33
    10-8248327 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 34
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 35
    42039 CAM
    CAM
  • 36
    8M0026064 SHIFT SHAFT
    (SHORT)
    SHIFT SHAFT
    (SHORT)
  • 36
    8M0026065 SHIFT SHAFT
    (LONG)
    SHIFT SHAFT
    (LONG)
  • 37
    53-42389 E RING
    E RING
  • 38
    8M0036770 GUIDE
    GUIDE
  • 39
    10-40011109 SCREW, (M5 x 25) Stainless Steel
    SCREW, (M5 x 25) Stainless Steel
  • 40
    11-401385 NUT, (M5)
    NUT, (M5)
  • 41
    45-823389 DRIVESHAFT
    (SHORT)
    DRIVESHAFT
    (SHORT)
  • 41
    45-823390 DRIVESHAFT
    (LONG)
    DRIVESHAFT
    (LONG)
  • 42
    12-822248 THRUST WASHER
    THRUST WASHER
  • -
    26-41365A3 SEAL KIT
    SEAL KIT
  • -
    46-42089A5 PUMP KIT, Water
    PUMP KIT, Water
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
