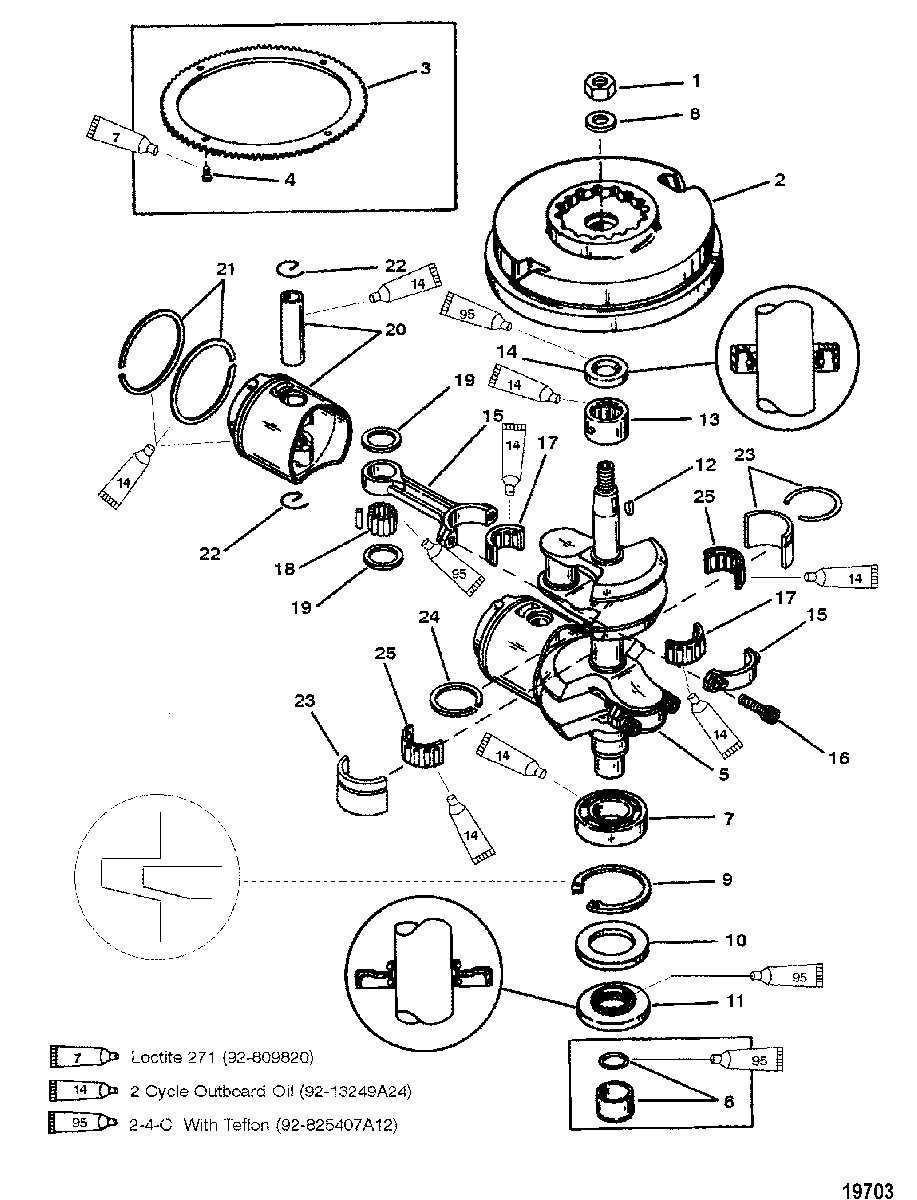

Crankshaft(15)(9.9-S/N-USA-0G112450/BEL-9831800 & Up) для Mercury - 8 9792200 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    11-818591 NUT, (M14)
    NUT, (M14)
  • 2
    260-859231T19 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 3
    43-99301 RING GEAR
    ELECTRIC
    RING GEAR
    ELECTRIC
  • 4
    10-88190313 SCREW, (M5 x 13)
    ELECTRIC
    SCREW, (M5 x 13)
    ELECTRIC
  • 5
    400-8M0083309 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    818630A1 SLEEVE (INCLUDES O-RING)
    SLEEVE (INCLUDES O-RING)
  • 7
    30-41341 BEARING, Ball
    BEARING, Ball
  • 8
    12-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
    WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
  • 9
    53-42132 RING, Retaining
    RING, Retaining
  • 10
    12-13031 WASHER
    WASHER
  • 11
    26-125661 SEAL, Oil - Lower
    SEAL, Oil - Lower
  • 12
    28-20094 KEY, Woodruff
    KEY, Woodruff
  • 13
    31-878158 BEARING, Roller
    BEARING, Roller
  • 14
    26-125671 SEAL, Oil - Upper, UPPER
    SEAL, Oil - Upper, UPPER
  • 15
    637-8477A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-823460 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 17
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 18
    29-42186 BEARING, Needle
    BEARING, Needle
  • 19
    12-8M0012297 BEARING, Thrust
    BEARING, Thrust
  • 20
    784-9747T2 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 20
    784-9747A4 PISTON ASSEMBLY (.015 O.S.)
    PISTON ASSEMBLY (.015 O.S.)
  • 21
    39-18212A4 RING SET, Piston (STANDARD)
    RING SET, Piston (STANDARD)
  • 21
    39-18212A1 RING SET, Piston (.015 O.S.)
    RING SET, Piston (.015 O.S.)
  • 22
    40-422021 LOCK RING
    LOCK RING
  • 23
    17794A1 BEARING
    BEARING
  • 24
    26-818901 SEAL
    SEAL
  • 25
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • -
    19072T88 POWERHEAD ASSEMBLY, Complete
    (15) SN# USA-0G112449/BEL-9831799 & Below
    POWERHEAD ASSEMBLY, Complete
    (15) SN# USA-0G112449/BEL-9831799 & Below
  • -
    19072T97 POWERHEAD ASSEMBLY
    (15) SN# USA-0G112450/BEL-9831800 & Up
    POWERHEAD ASSEMBLY
    (15) SN# USA-0G112450/BEL-9831800 & Up
  • -
    19072T97 POWERHEAD ASSEMBLY
    (9.9) SN# USA-0G112450/BEL-9831800 & Up
    POWERHEAD ASSEMBLY
    (9.9) SN# USA-0G112450/BEL-9831800 & Up
