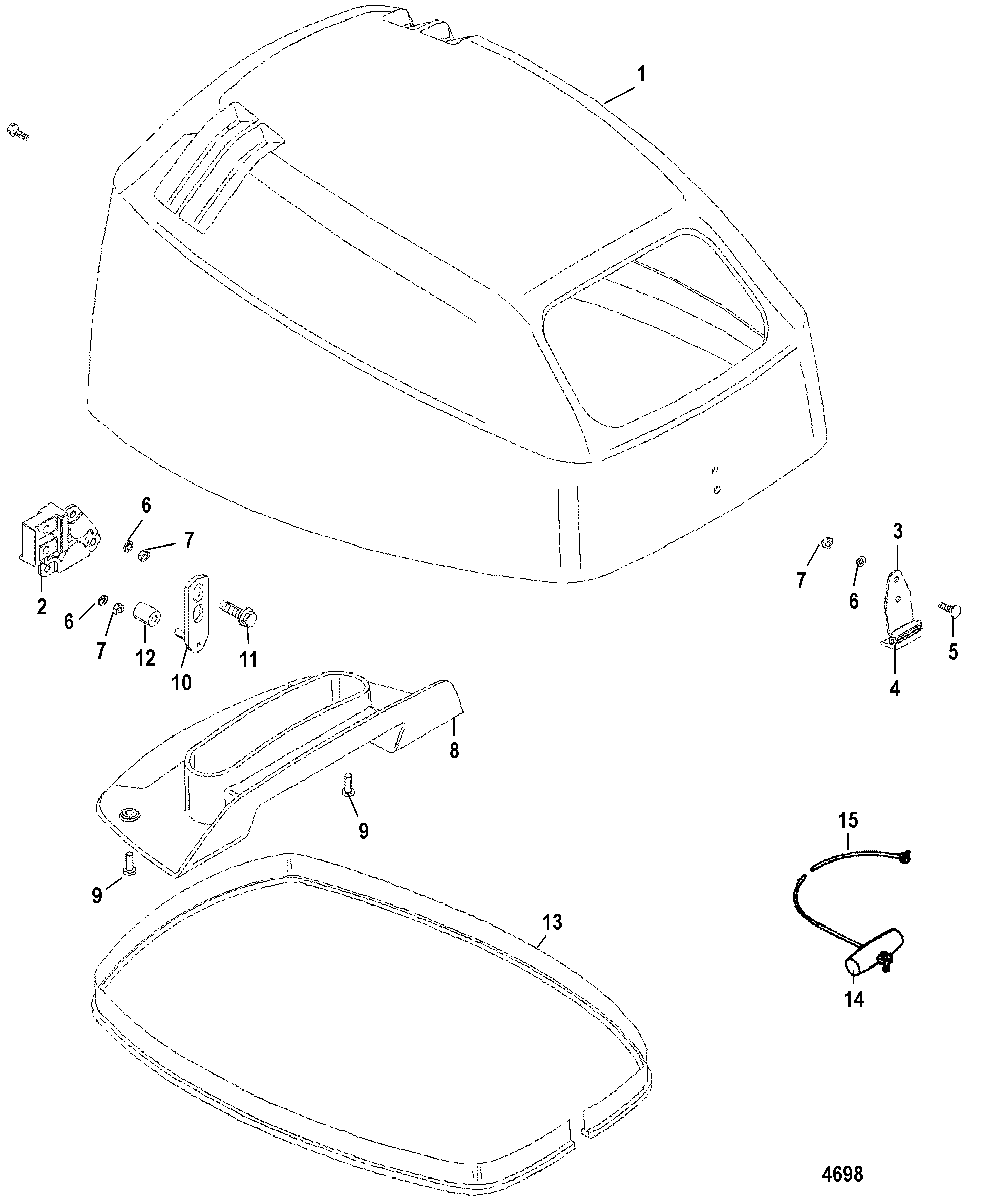

Top Cowl для Mercury - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    114-852413T3 TOP COWL ASSEMBLY
    (Black)
    TOP COWL ASSEMBLY
    (Black)
  • 1
    114-852413T4 TOP COWL ASSEMBLY
    (Silver)
    TOP COWL ASSEMBLY
    (Silver)
  • 2
    852490F BRACKET
    BRACKET
  • 3
    827702T COVER
    COVER
  • 4
    826649 LATCH
    LATCH
  • 5
    10-8231872 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 7
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 8
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 9
    10-95700 SCREW, (#10-16 x .50)
    SCREW, (#10-16 x .50)
  • 10
    852491A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 11
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 12
    18745 ROLLER
    ROLLER
  • 13
    8M0043391 SEAL, Cowl
    SEAL, Cowl
  • 14
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
  • 15
    NSS NOT SOLD SEPARATE, Starter Rope
    NOT SOLD SEPARATE, Starter Rope
