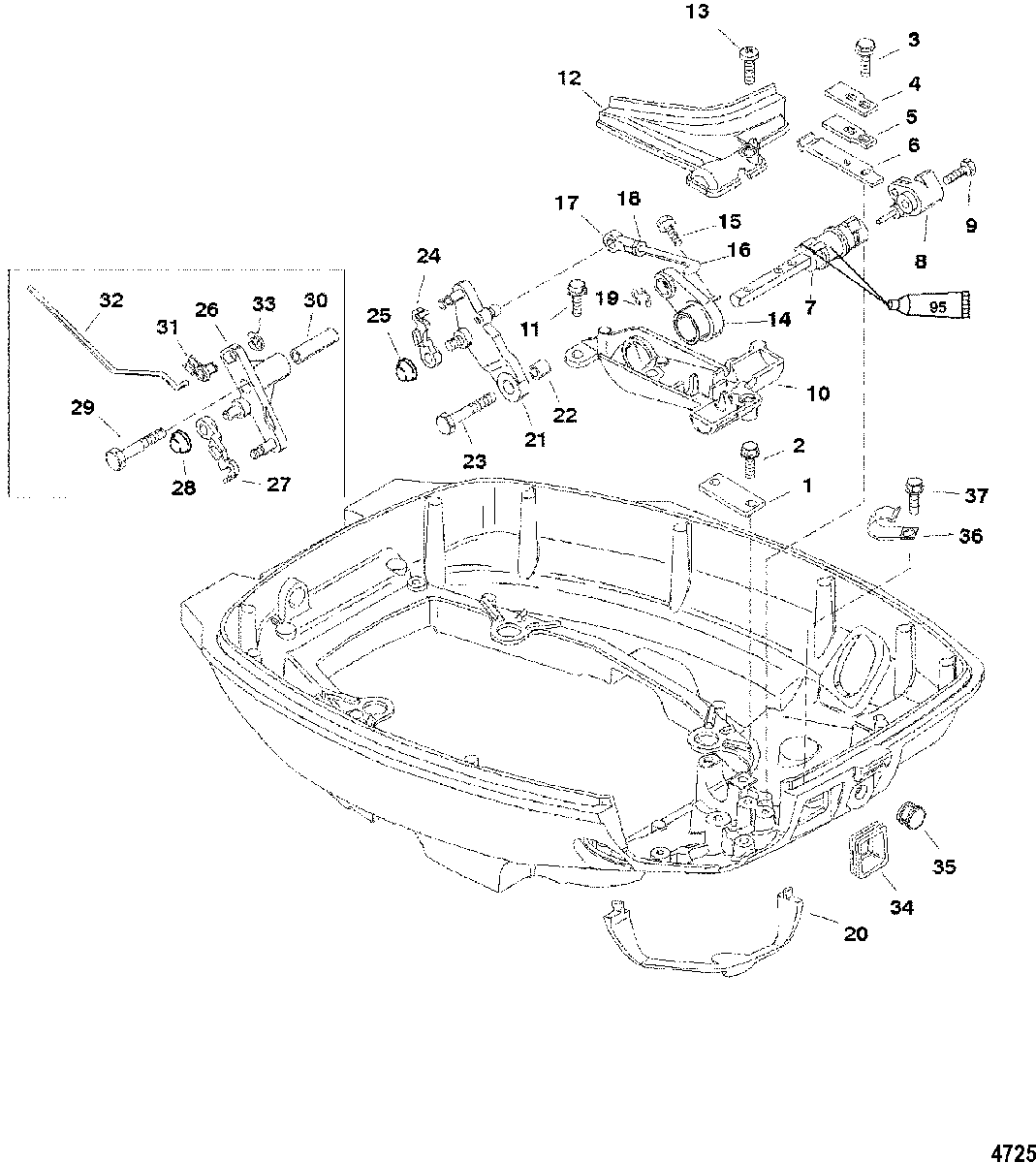

Throttle/Shift Linkage(Non-Handle Models) для Mercury - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999
-
№АртикулНазвание
-
18280471 STRAPSTRAP
-
210-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
310-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4824994 SPRING, PlateSPRING, Plate
-
524-824993 SPRING, BackingSPRING, Backing
-
624-824992 SPRING, DetentSPRING, Detent
-
7852494A6 SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Bigfoot) -
7852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot)SHIFT SHAFT ASSEMBLY, Horizontal
(Non-Bigfoot) -
8855609 LEVER, Interlock
(Bigfoot)LEVER, Interlock
(Bigfoot) -
8826063 LEVER, Interlock
(Non-Bigfoot)LEVER, Interlock
(Non-Bigfoot) -
910-40011111 SCREW, (M5 x 35) Stainless SteelSCREW, (M5 x 35) Stainless Steel
-
10835415F REMOTE CONTROL PLATFORMREMOTE CONTROL PLATFORM
-
1110-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
12852498 COVERCOVER
-
1310-832047 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
148524961 LEVER, Shift ShaftLEVER, Shift Shaft
-
1510-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
16852497A2 SHIFT LINK ASSEMBLYSHIFT LINK ASSEMBLY
-
17817428 SOCKETSOCKET
-
1811-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1953-857213 RING, RetainingRING, Retaining
-
208354191 SEALSEAL
-
21850856 LEVER, ShiftLEVER, Shift
-
2223-91912 BUSHINGBUSHING
-
2310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
24822459 RETAINERRETAINER
-
2511-825677 PUSH NUTPUSH NUT
-
26850857 LEVER, ThrottleLEVER, Throttle
-
27822459 RETAINERRETAINER
-
2811-825677 PUSH NUTPUSH NUT
-
2910-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
3023-855765 BUSHINGBUSHING
-
31828049 SLIDESLIDE
-
32882817 LINK, Throttle
SN# USA-0T800999/BEL-0P267999 & BelowLINK, Throttle
SN# USA-0T800999/BEL-0P267999 & Below -
32882817 LINK, Throttle
SN# USA-0T801000/BEL-0P268000 & UpLINK, Throttle
SN# USA-0T801000/BEL-0P268000 & Up -
3353-8237951 RING, RetainingRING, Retaining
-
3425-828114 GROMMETGROMMET
-
3519-855937 PLUGPLUG
-
3654-28700 CLAMP
(Electric)CLAMP
(Electric) -
3710-82239312 SCREW, (M5 x 12)
(Electric)SCREW, (M5 x 12)
(Electric)
