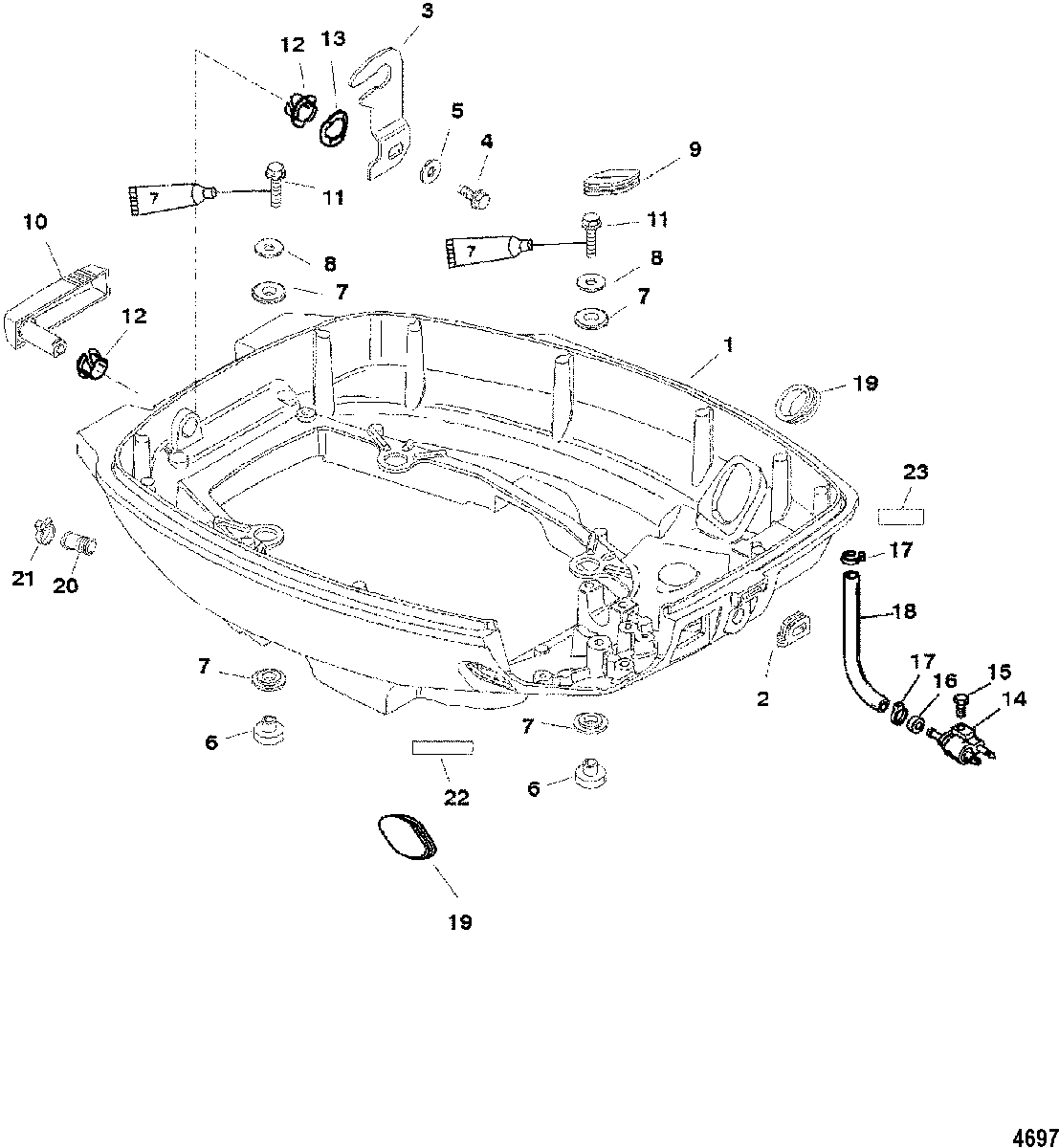

Bottom Cowl для Mercury - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    4000-835416A1 BOTTOM COWL
    (Black)
    BOTTOM COWL
    (Black)
  • 2
    25-857002 COVER
    COVER
  • 3
    852480 LATCH HOOK
    LATCH HOOK
  • 4
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 5
    12-4002316 WASHER
    WASHER
  • 6
    23-826618 BUSHING
    BUSHING
  • 7
    25-828129 GROMMET
    GROMMET
  • 8
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 9
    25-855289T GROMMET
    GROMMET
  • 10
    825782F1 LEVER, Cowl Latch
    (Black)
    LEVER, Cowl Latch
    (Black)
  • 11
    10-1993735 SCREW, (M6 x 35 MM)
    SCREW, (M6 x 35 MM)
  • 12
    23-812707 BUSHING
    BUSHING
  • 13
    13-12134 WASHER, Wave
    WASHER, Wave
  • 14
    22-15781A5 CONNECTOR, Fuel - Brass
    CONNECTOR, Fuel - Brass
  • 15
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 16
    25-18202 GROMMET, Fuel Connector
    GROMMET, Fuel Connector
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    32-85682931 TUBING, (13.00 Inches)
    SN# 0T003862 & Up
    TUBING, (13.00 Inches)
    SN# 0T003862 & Up
  • 18
    32-9912878 HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 21 Inch Length) SN# 0T003861 & Below
    HOSE, (.187) (26.00 Inches Bulk)
    (Cut to 21 Inch Length) SN# 0T003861 & Below
  • 19
    826037 PLUG
    PLUG
  • 20
    22-813613 FITTING
    FITTING
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    NSS NOT SOLD SEPARATE, Decal Unleaded Fuel
    (Bodensee)
    NOT SOLD SEPARATE, Decal Unleaded Fuel
    (Bodensee)
  • 23
    37-111851 SHIFT DECAL
    (Handle) (Use Where Applicable)
    SHIFT DECAL
    (Handle) (Use Where Applicable)
