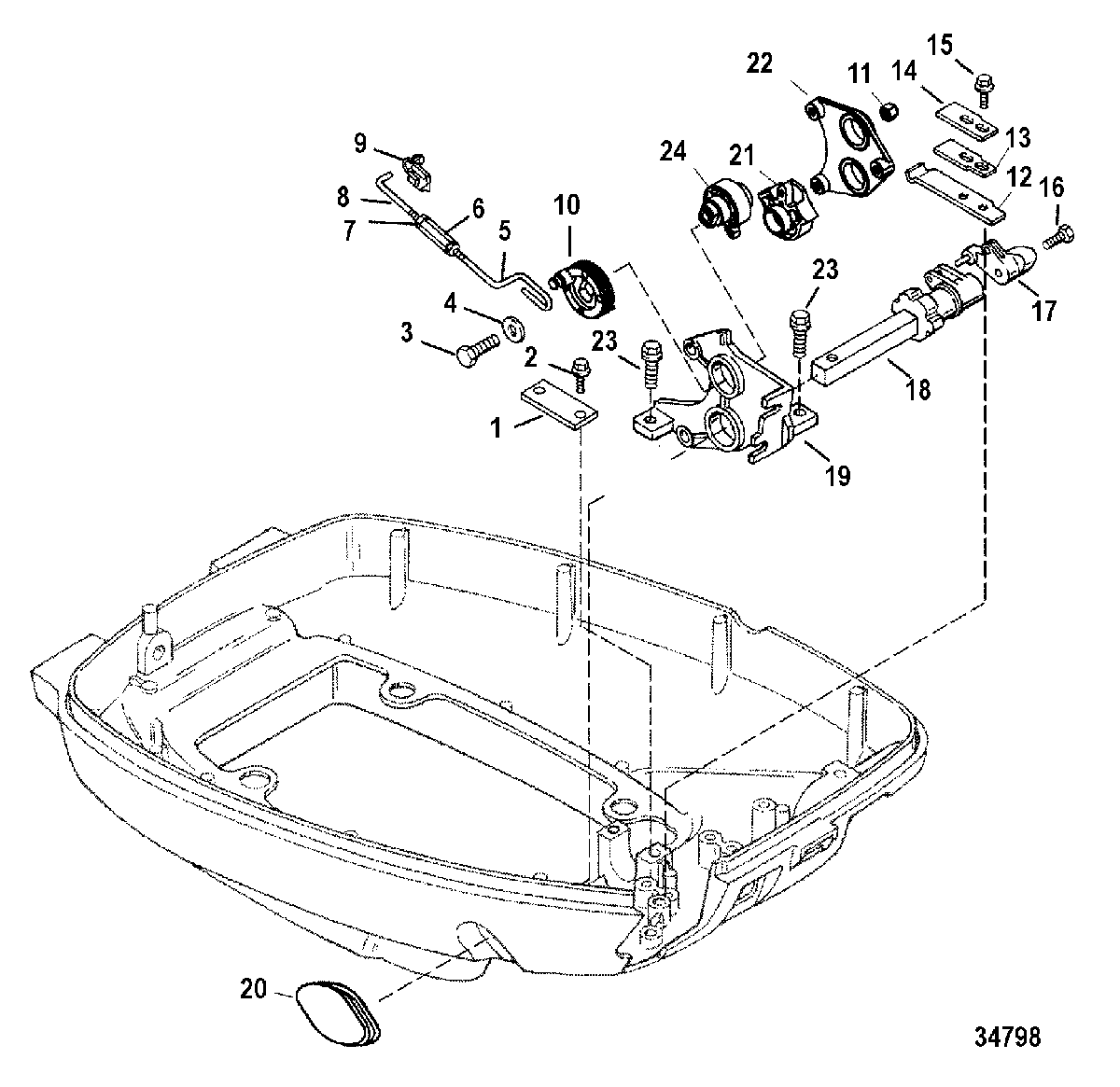

Throttle Linkage для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265

  • №
    Артикул
    Название
  • 1
    8280471 STRAP
    STRAP
  • 2
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
  • 3
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 4
    12-4002316 WASHER
    WASHER
  • 5
    830880 LINK, Sliding
    LINK, Sliding
  • 6
    826065 LINK, Joint
    LINK, Joint
  • 7
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 8
    825790 LINK, Throttle
    LINK, Throttle
  • 9
    826137 LINK, Joint
    LINK, Joint
  • 10
    825787A2 PULLEY ASSEMBLY
    PULLEY ASSEMBLY
  • 11
    11-401366 NUT, (M6)
    NUT, (M6)
  • 12
    24-824992 SPRING, Detent
    SPRING, Detent
  • 13
    24-824993 SPRING, Backing
    SPRING, Backing
  • 14
    824994 SPRING, Plate
    SPRING, Plate
  • 15
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 16
    10-40011111 SCREW, (M5 x 35) Stainless Steel
    SCREW, (M5 x 35) Stainless Steel
  • 17
    826063 LEVER, Interlock
    LEVER, Interlock
  • 18
    852494A5 SHIFT SHAFT ASSEMBLY, Horizontal
    SHIFT SHAFT ASSEMBLY, Horizontal
  • 19
    8257863 PLATFORM
    PLATFORM
  • 20
    826037 PLUG
    PLUG
  • 21
    826021 GEAR, Driven
    GEAR, Driven
  • 22
    826022 COVER
    COVER
  • 23
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 24
    826019 GEAR, Driver
    GEAR, Driver
