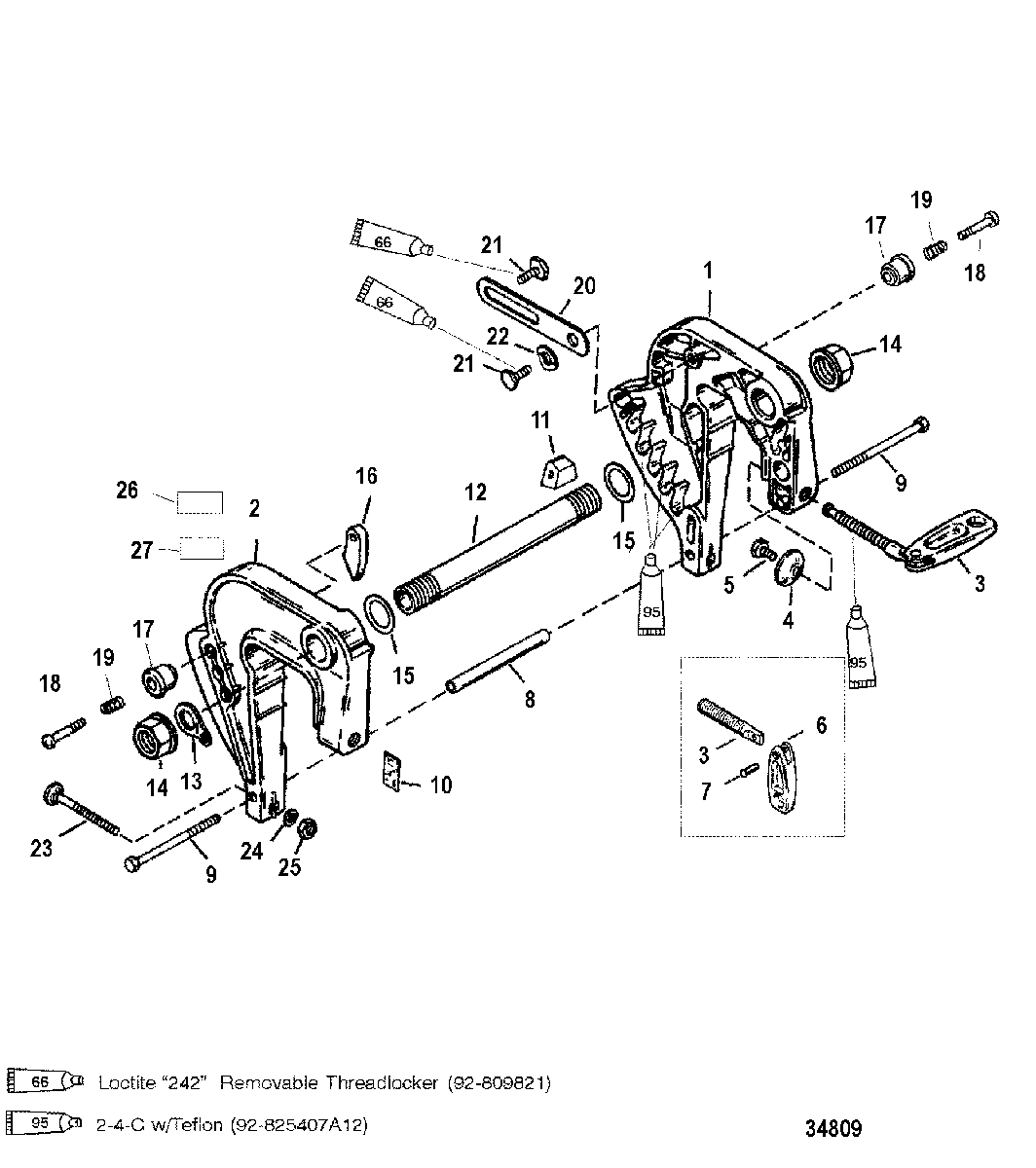

Clamp Bracket для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265

  • №
    Артикул
    Название
  • 1
    3404-8894A8 CLAMP BRACKET ASSEMBLY
    Port
    CLAMP BRACKET ASSEMBLY
    Port
  • 2
    3403-8892A6 CLAMP BRACKET
    Starboard
    CLAMP BRACKET
    Starboard
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    12-818884 WASHER
    WASHER
  • 5
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 6
    NSS NOT SOLD SEPARATE, Handle
    NOT SOLD SEPARATE, Handle
  • 7
    NSS NOT SOLD SEPARATE, Rivet
    NOT SOLD SEPARATE, Rivet
  • 8
    23-8M0084719 SPACER
    SPACER
  • 9
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 10
    37-12869 DECAL, Tilt Position
    DECAL, Tilt Position
  • 11
    814427 SHUTTLE
    SHUTTLE
  • 12
    42078 TILT TUBE
    TILT TUBE
  • 13
    54-8M0085928 CLIP
    CLIP
  • 14
    11-93164 NUT, (.875)
    NUT, (.875)
  • 15
    12-71421 WASHER, Nylon
    WASHER, Nylon
  • 16
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 17
    NSS NOT SOLD SEPARATE, Knob
    NOT SOLD SEPARATE, Knob
  • 18
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 19
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 20
    90901 STRAP, Port Side
    STRAP, Port Side
  • 21
    10-42498 SCREW, (M6 x 1.0)
    SCREW, (M6 x 1.0)
  • 22
    13-31030 WAVE WASHER
    WAVE WASHER
  • 23
    10-43216 BOLT, (.250-20 x 3.50)
    BOLT, (.250-20 x 3.50)
  • 24
    12-67983 WASHER
    WASHER
  • 25
    11-8267118 NUT, (.250-20)
    NUT, (.250-20)
  • 26
    NSS NOT SOLD SEPARATE, Decal-Tilt Lock
    NOT SOLD SEPARATE, Decal-Tilt Lock
  • 27
    NSS NOT SOLD SEPARATE, Decal-Tilt Limit
    NOT SOLD SEPARATE, Decal-Tilt Limit
