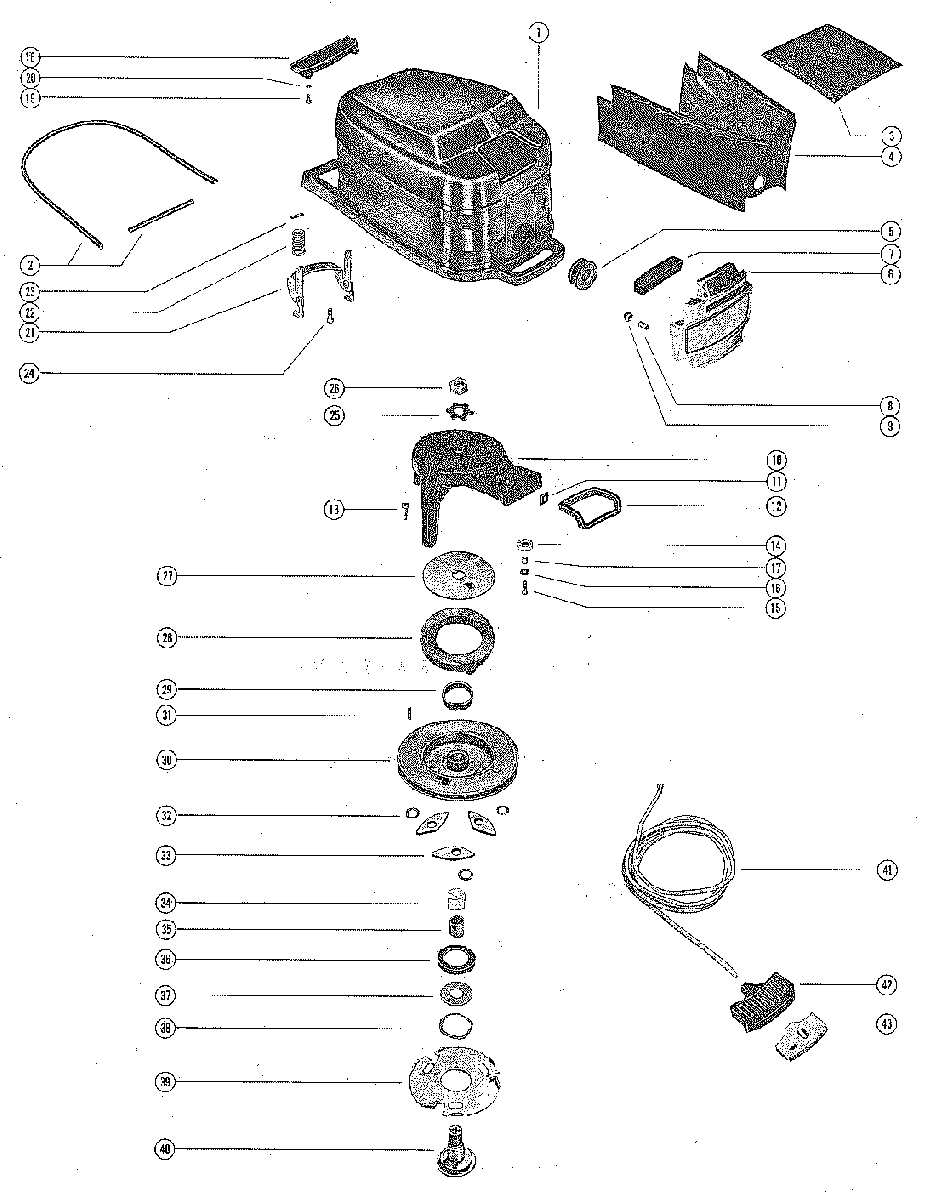

TOP COWL AND STARTER ASSEMBLY для Mercury - 75 3274633 THRU 3801457

  • №
    Артикул
    Название
  • 1
    2123-3953A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    56377 SEAL, TOP COWL (42 1/8")
    SEAL, TOP COWL (42 1/8")
  • 3
    39080 BLANKET, SOUND ABSORBING - TOP COWL
    SERIAL 00000000-#3488152
    BLANKET, SOUND ABSORBING - TOP COWL
    SERIAL 00000000-#3488152
  • 4
    39071 BLANKET, SOUND ABSORBING - TOP COWL
    BLANKET, SOUND ABSORBING - TOP COWL
  • 5
    25-39086 GROMMET, COWL LATCH - TOP COWL
    GROMMET, COWL LATCH - TOP COWL
  • 6
    2128-2667A8 COVER ASSEMBLY, FRONT
    COVER ASSEMBLY, FRONT
  • 7
    39039 STRIP, RUBBER - FRONT COVER
    STRIP, RUBBER - FRONT COVER
  • 8
    23-39578 SPACER, FRONT COVER STUD
    SPACER, FRONT COVER STUD
  • 9
    11-8267089 NUT, FRONT COVER STUD
    NUT, FRONT COVER STUD
  • 10
    63307A2 STARTER HOUSING ASSEMBLY
    SERIAL 00000000-#3488152
    STARTER HOUSING ASSEMBLY
    SERIAL 00000000-#3488152
  • 10
    63307A2 STARTER HOUSING ASSEMBLY
    SERIAL #3488153-09999999
    STARTER HOUSING ASSEMBLY
    SERIAL #3488153-09999999
  • 11
    57821 INSERT, ROPE GUIDE - STARTER HOUSING
    INSERT, ROPE GUIDE - STARTER HOUSING
  • 12
    39043 SEAL, STARTER HOUSING TO TOP COWL
    SEAL, STARTER HOUSING TO TOP COWL
  • 13
    10-72862 SCREW, STARTER HOUSING TO CRANKCASE (1")
    SCREW, STARTER HOUSING TO CRANKCASE (1")
  • 13
    10-22968 SCREW, STARTER HOUSING TO CYLINDER BLOCK (1 1/4")
    SCREW, STARTER HOUSING TO CYLINDER BLOCK (1 1/4")
  • 14
    55860 PULLEY, STARTER CABLE
    PULLEY, STARTER CABLE
  • 15
    10-28789 SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
    SCREW, CABLE PULLEY TO STARTER HOUSING (3/4")
  • 16
    12-22887 WASHER, CABLE PULLEY SCREW
    WASHER, CABLE PULLEY SCREW
  • 17
    23-309772 SPACER, CABLE PULLEY
    SPACER, CABLE PULLEY
  • 18
    39027 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 19
    10-38055 SCREW, REAR SHIELD TO TOP COWL (5/8")
    SCREW, REAR SHIELD TO TOP COWL (5/8")
  • 20
    13-26996 LOCKWASHER, REAR SHIELD SCREW
    LOCKWASHER, REAR SHIELD SCREW
  • 21
    39088A1 COWL LATCH ASSEMBLY, TOP COWL
    COWL LATCH ASSEMBLY, TOP COWL
  • 22
    24-59174 SPRING, COMPRESSION - COWL LATCH
    SPRING, COMPRESSION - COWL LATCH
  • 23
    17-39095 PIN, ROLL - SPRING TO COWL LATCH
    PIN, ROLL - SPRING TO COWL LATCH
  • 24
    10-69069 SCREW, COWL LATCH TO TOP COWL (3/4")
    SCREW, COWL LATCH TO TOP COWL (3/4")
  • 25
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 26
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 27
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 28
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 29
    23-28912 BUSHING, STARTER SPRING GUIDE
    BUSHING, STARTER SPRING GUIDE
  • 30
    50-93696A2 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 31
    17-22896 PIN, RETAINER - STARTER CABLE
    PIN, RETAINER - STARTER CABLE
  • 32
    13-36206 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 33
    30596 PAWL, STARTER
    PAWL, STARTER
  • 34
    23-28919 BUSHING, NYLON - SHEAVE SHAFT SPACER
    BUSHING, NYLON - SHEAVE SHAFT SPACER
  • 35
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 36
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
  • 37
    12-35559 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
  • 38
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 39
    30595 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 40
    35558 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 41
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 42
    30782 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 43
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
