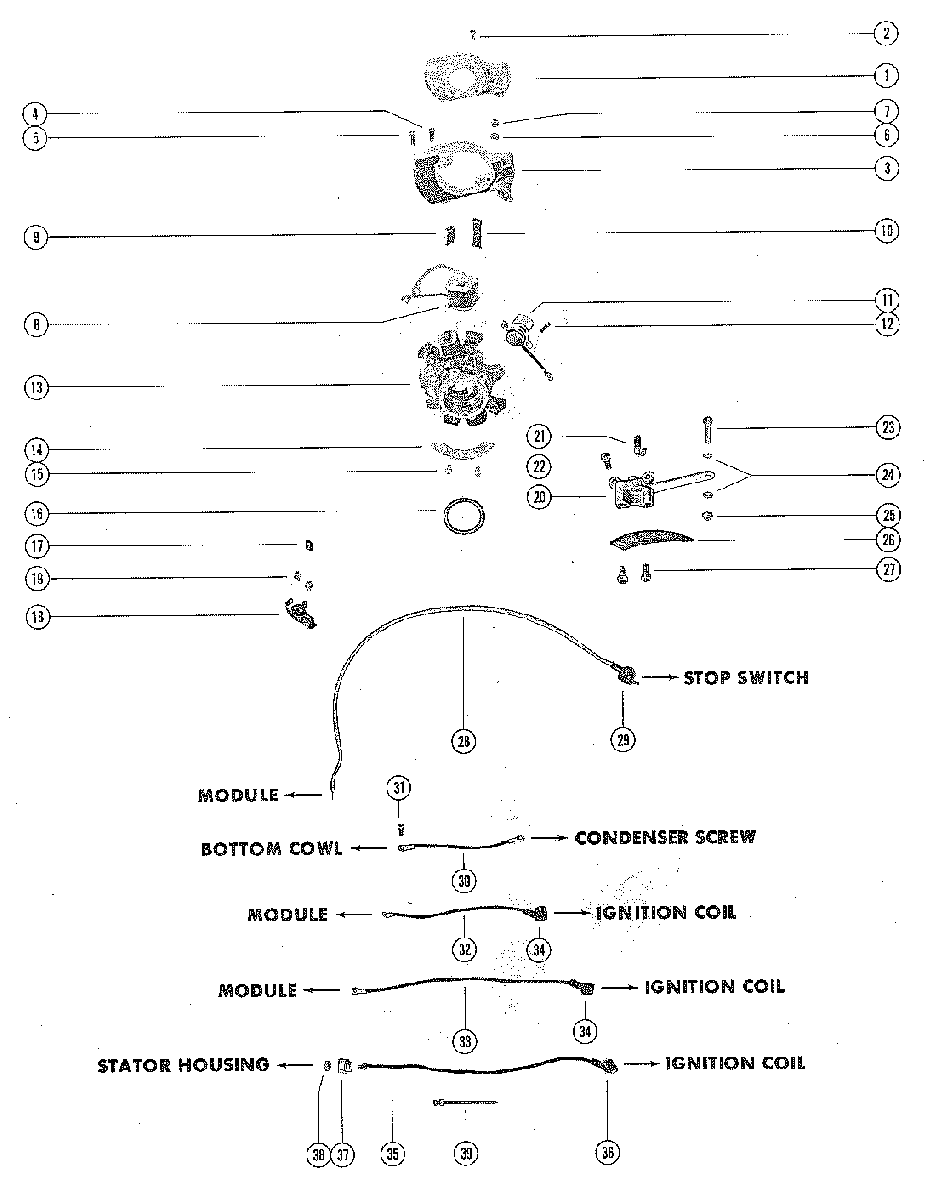

STATOR AND IGNITION COMPONENTS для Mercury - 75 3274633 THRU 3801457
-
№АртикулНазвание
-
1336-4524A1 COVER ASSEMBLYCOVER ASSEMBLY
-
210-60491 SCREW, COVER TO MODULE (5/8")SCREW, COVER TO MODULE (5/8")
-
3336-4516A2 IGNITION MODULE ASSEMBLYIGNITION MODULE ASSEMBLY
-
410-59800 SCREW, MODULE TO STATOR (9/16")SCREW, MODULE TO STATOR (9/16")
-
510-36046 SCREW, MODULE - COIL LEADS (1/4")SCREW, MODULE - COIL LEADS (1/4")
-
613-26996 LOCKWASHER, MODULE - IGNITION COIL LEAD TERMINALSLOCKWASHER, MODULE - IGNITION COIL LEAD TERMINALS
-
711-45076 NUT, MODULE - IGNITION COIL LEAD TERMINALSNUT, MODULE - IGNITION COIL LEAD TERMINALS
-
8336-4468A1 COIL, HIGH SPEEDCOIL, HIGH SPEED
-
8336-4467A1 COIL, LOW SPEEDCOIL, LOW SPEED
-
954-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1054-59539 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
11336-4463 CONDENSERCONDENSER
-
1210-62269 SCREW, CONDENSER ATTACHING (7/16")SCREW, CONDENSER ATTACHING (7/16")
-
13336-4477A1 STATOR ASSEMBLYSTATOR ASSEMBLY
-
14336-4458 PLATE, STATOR HOLD DOWNPLATE, STATOR HOLD DOWN
-
1510-35400 SCREW, HOLD DOWN PLATE TO STATOR (7/16")SCREW, HOLD DOWN PLATE TO STATOR (7/16")
-
1615-33910015 SHIM, STATOR PLATE TO UPPER END CAPSHIM, STATOR PLATE TO UPPER END CAP
-
17336-3989 WICK, CAM WIPER - STATOR ASSEMBLYWICK, CAM WIPER - STATOR ASSEMBLY
-
18336-4318A2 MAKER ASSEMBLY, STATOR HOUSINGMAKER ASSEMBLY, STATOR HOUSING
-
1910-56266 SCREW, MAKER TO STATOR HOUSING (3/8")SCREW, MAKER TO STATOR HOUSING (3/8")
-
2034363A4 THROTTLE CAM BRACKET ASSEMBLYTHROTTLE CAM BRACKET ASSEMBLY
-
2154-34449 CLAMP, THROTTLE CAM BRACKETCLAMP, THROTTLE CAM BRACKET
-
2210-53296 SCREW, CAM BRACKET TO STATOR PLATE (1/2")SCREW, CAM BRACKET TO STATOR PLATE (1/2")
-
2310-34696 SCREW, THROTTLE CONTROL LEVER TO CAM BRACKET (3/4")SCREW, THROTTLE CONTROL LEVER TO CAM BRACKET (3/4")
-
2412-34392 WASHER, CONTROL LEVER SCREWWASHER, CONTROL LEVER SCREW
-
2511-28656 NUT, CONTROL LEVER SCREWNUT, CONTROL LEVER SCREW
-
2661641 CAM, THROTTLE
SERIAL 00000000-#3488152CAM, THROTTLE
SERIAL 00000000-#3488152 -
2663839 CAM, THROTTLE
SERIAL #3488153-09999999CAM, THROTTLE
SERIAL #3488153-09999999 -
2710-28707 SCREW, THROTTLE CAM TO CAM BRACKET (1/2")SCREW, THROTTLE CAM TO CAM BRACKET (1/2")
-
2856319A6 LEAD ASSEMBLY, STOP SWITCH (SALMON - 15 3/4")LEAD ASSEMBLY, STOP SWITCH (SALMON - 15 3/4")
-
2959060 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
3056757A3 LEAD ASS'Y CONDENSER TO BOTTOM COWL (BLACK - 14 1/2")LEAD ASS'Y CONDENSER TO BOTTOM COWL (BLACK - 14 1/2")
-
3110-62568 SCREW, STATOR GROUND WIRE TO BOTTOM COWLSCREW, STATOR GROUND WIRE TO BOTTOM COWL
-
3256318A6 LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 10 3/4")LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN - 10 3/4")
-
3356318A5 LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN 13 7/8")LEAD ASSEMBLY, MODULE TO IGNITION COIL (GREEN 13 7/8")
-
3438938 BOOT, LEAD ASSEMBLYBOOT, LEAD ASSEMBLY
-
3556316A3 CABLE ASSEMBLY, STATOR HOUSING (WHITE - 12 3/4")CABLE ASSEMBLY, STATOR HOUSING (WHITE - 12 3/4")
-
3556317A3 CABLE ASSEMBLY, STATOR HOUSING (BROWN - 15 1/4")CABLE ASSEMBLY, STATOR HOUSING (BROWN - 15 1/4")
-
3638938 BOOT, CABLEBOOT, CABLE
-
37336-4460 INSULATOR, CABLE TO CONTACT HOUSINGINSULATOR, CABLE TO CONTACT HOUSING
-
3811-56325 NUT, CABLE INSULTORNUT, CABLE INSULTOR
-
3956762 STA-STRAPSTA-STRAP
