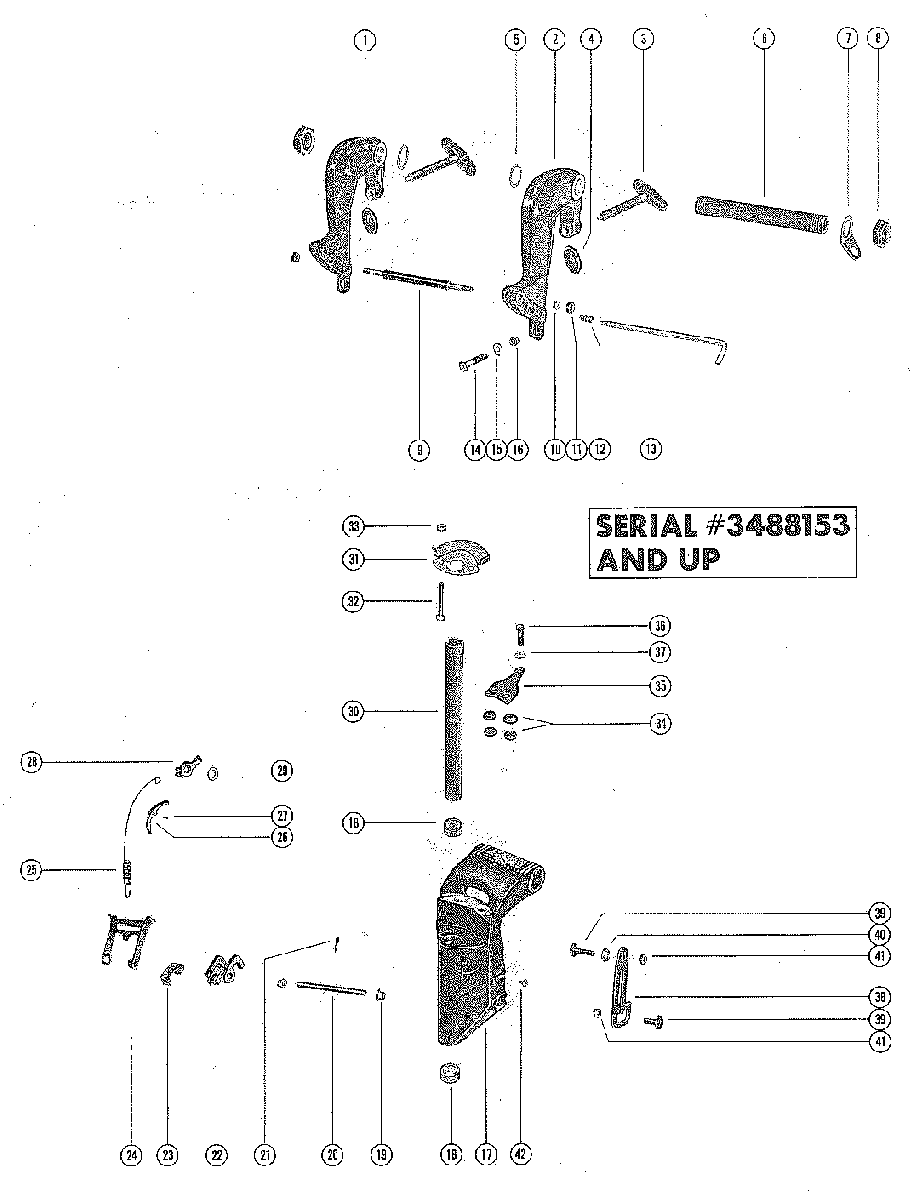

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 75 3274633 THRU 3801457

  • №
    Артикул
    Название
  • 1
    1468-5570A3 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5571A3 CLAMP BRACKET ASSEMBLY (STARBOARD)
    CLAMP BRACKET ASSEMBLY (STARBOARD)
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    12-52864 WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
    WASHER, TILT TUBE - CLAMP TO SWIVEL BRACKET
  • 6
    45757 TILT TUBE, CLAMP TO SWIVEL BRACKET
    TILT TUBE, CLAMP TO SWIVEL BRACKET
  • 7
    54-8M0085928 CLIP, SAFETY CHAIN - TILT TUBE
    CLIP, SAFETY CHAIN - TILT TUBE
  • 8
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 9
    16-59622 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26992 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-29598 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    24-62143 SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 13
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 14
    10-67982 BOLT, CLAMP BRACKET TO BOAT
    BOLT, CLAMP BRACKET TO BOAT
  • 15
    12-67983 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
  • 16
    11-8267098 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
  • 17
    1471-5822A1 SWIVEL BRACKET
    SWIVEL BRACKET
  • 18
    23-64028 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 19
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 20
    63551 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 21
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 22
    63628T LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
  • 23
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
  • 24
    63559T BRACKET, TROLL
    BRACKET, TROLL
  • 25
    24-63630 SPRING, EXTENSION - TROLL BRACKET
    SPRING, EXTENSION - TROLL BRACKET
  • 26
    63554 GUIDE, SPRING
    GUIDE, SPRING
  • 27
    17-25319 ROLL PIN, SPRING GUIDE
    ROLL PIN, SPRING GUIDE
  • 28
    79744 LEVER, CONTOL - TROLL BRACKET
    LEVER, CONTOL - TROLL BRACKET
  • 29
    13-63631 WASHER, WAVE - TROLL BRACKET LEVER
    WASHER, WAVE - TROLL BRACKET LEVER
  • 30
    66559 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
  • 31
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 32
    10-30679 SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
    SCREW, CO-PILOT DISC TO SADDLE (2 1/4")
  • 33
    11-20184 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
  • 34
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
  • 35
    63647 PLATE, CLAMP - CO-PILOT
    PLATE, CLAMP - CO-PILOT
  • 36
    10-62506 SCREW, CLAMP PLATE ADJUSTING (1 5/8")
    SCREW, CLAMP PLATE ADJUSTING (1 5/8")
  • 37
    12-35462 WASHER, CLAMP PLATE ADJUSTING SCREW
    WASHER, CLAMP PLATE ADJUSTING SCREW
  • 38
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
  • 39
    10-41433 SCREW, TILT STOP LEVER
    SCREW, TILT STOP LEVER
  • 40
    13-31030 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 41
    11-826709109 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • 42
    10-36398 SCREW, SWIVEL BRACKET
    SCREW, SWIVEL BRACKET
