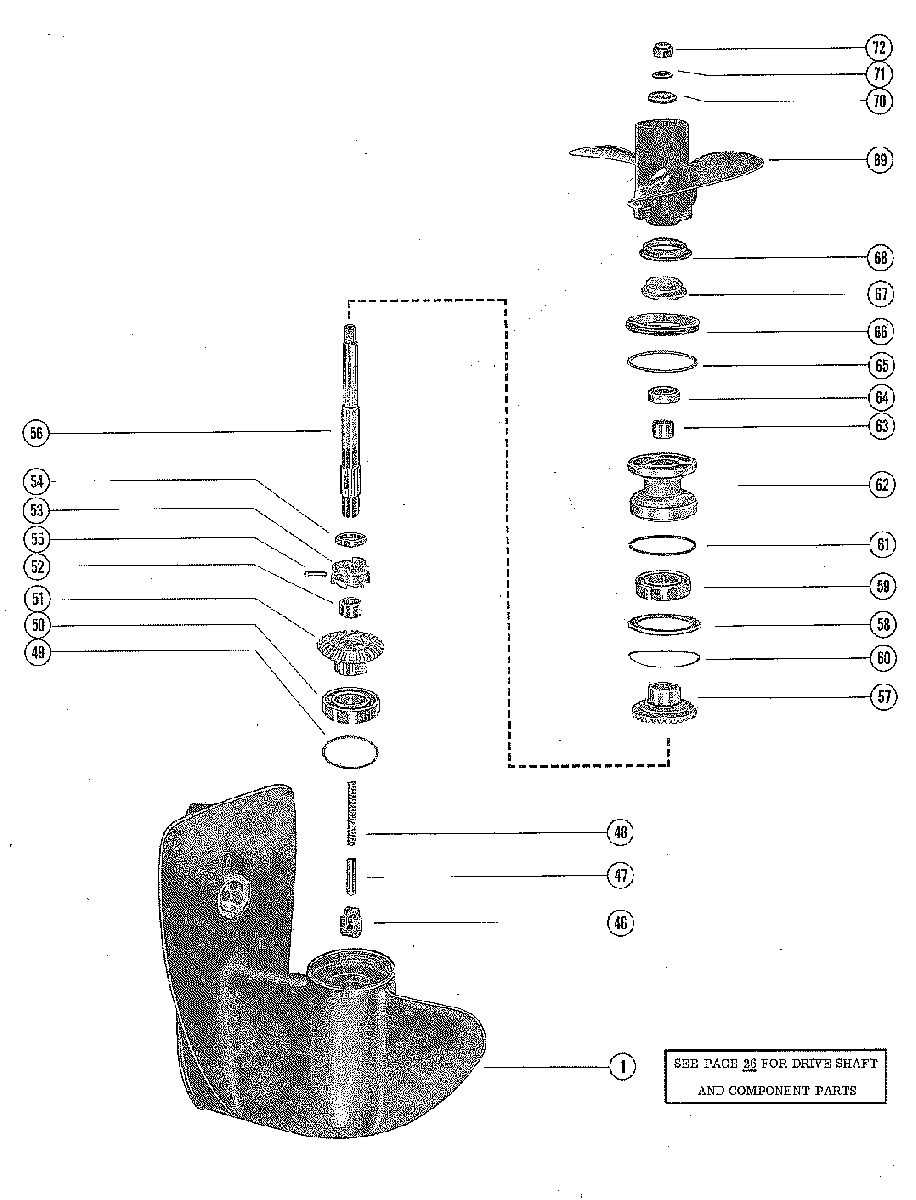

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
E BELOW SERIAL 00000000-02721150GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
E BELOW SERIAL 00000000-02721150 -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 00000000-02721150GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 00000000-02721150 -
-1630-2643A32 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02810637-02958118GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 02810637-02958118 -
-1630-2643A33 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02810637-02958118GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 02810637-02958118 -
-1630-4407A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 03016581-09999999GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SERIAL 03016581-09999999 -
-1630-4407A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 03016581-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SERIAL 03016581-09999999 -
11630-2643A9 GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN
SERIAL 00000000-02958118GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN
SERIAL 00000000-02958118 -
11630-4407A1 GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN
SERIAL 03016581-09999999GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR BREAKDOWN
SERIAL 03016581-09999999 -
4630599 CAM, SHIFT
SERIAL 00000000-02958118CAM, SHIFT
SERIAL 00000000-02958118 -
4644434 CAM, SHIFT
SERIAL 03016581-09999999CAM, SHIFT
SERIAL 03016581-09999999 -
4731334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4824-31333 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4915-30522A1 SHIM ASSEMBLY< BALL BEARING TO HOUSING (.002-3-5-10)SHIM ASSEMBLY< BALL BEARING TO HOUSING (.002-3-5-10)
-
5030-21889 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5143-48577A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5231-22458 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5352-47581 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5453-32449 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5517-30535 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5644-47851 SHAFT, PROPELLERSHAFT, PROPELLER
-
5743-48578 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
5812-30531 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
5930-21889 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6015-30532A1 SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10)SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10)
-
6125-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6230541T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6331-22458 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6426-30530 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6512-30528 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6630537 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6786665A1 THRUST HUB ASSEMBLY, PROPELLER SHAFTTHRUST HUB ASSEMBLY, PROPELLER SHAFT
-
6886665A1 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
6948-47670A10 PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)
-
6948-47922A10 PROPELLER ASSEMBLYPROPELLER ASSEMBLY
-
7011-64075A1 SPACER, SPLINED - PROPELLER SHAFTSPACER, SPLINED - PROPELLER SHAFT
-
7112-27025 WASHER, PROPELLER NUT
SERIAL 00000000-02958118WASHER, PROPELLER NUT
SERIAL 00000000-02958118 -
7211-34933 NUT, PROPELLERNUT, PROPELLER
