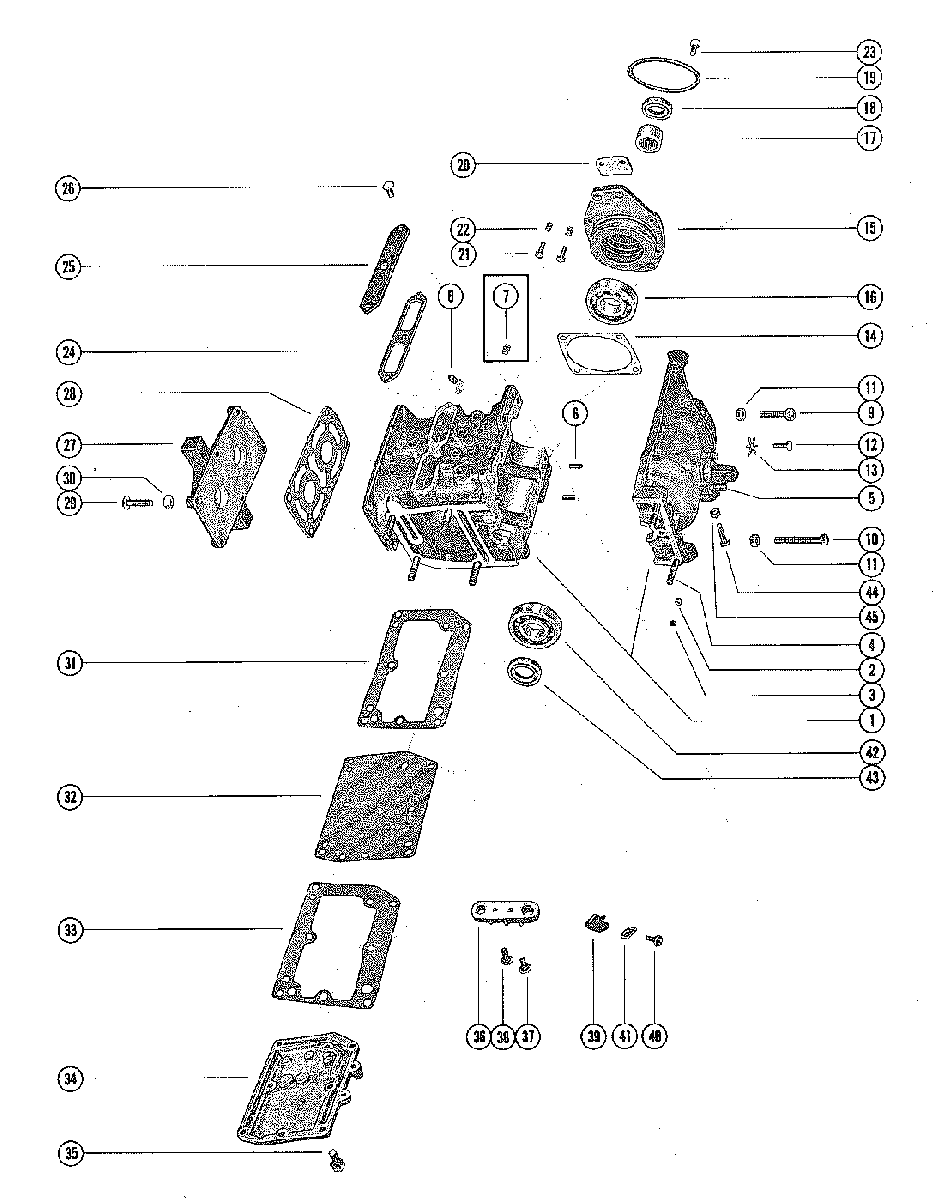

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 75 2529895 THRU 3274632

  • №
    Артикул
    Название
  • 1
    837-2756A7 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    21-28481A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 3
    19-56688 WELCH PLUG, CYLINDER BLOCK
    WELCH PLUG, CYLINDER BLOCK
  • 4
    16-728091 STUD, BLOCK AND CRANKCASE TO DRIVE CHAFT HOUSING
    STUD, BLOCK AND CRANKCASE TO DRIVE CHAFT HOUSING
  • 5
    10-657461 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 6
    17-21438 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
  • 7
    22-328022 PLUG, PIPE - CYLINDER BLOCK
    PLUG, PIPE - CYLINDER BLOCK
  • 8
    22-996642 ELBOW, TELL TALE - CYLINDER BLOCK
    ELBOW, TELL TALE - CYLINDER BLOCK
  • 9
    10-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 10
    10-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1-3/4")
  • 11
    11-20184 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 12
    10-98260 SCREW, MAIN BEARING LOCKING (5/8")
    SCREW, MAIN BEARING LOCKING (5/8")
  • 13
    14-20091 TAB WASHER, MAIN BEARING LOCKING SCREW
    TAB WASHER, MAIN BEARING LOCKING SCREW
  • 14
    15-31412A1 SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)
    SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)
  • 15
    1132-2400A1 BEARING HOUSING ASSEMBLY, UPPER
    SERIAL 00000000-02721150
    BEARING HOUSING ASSEMBLY, UPPER
    SERIAL 00000000-02721150
  • 15
    1141-3971A1 BEARING HOUSING ASSEMBLY, UPPER (NOT AS SHOWN)
    SERIAL #2810637 AND UP
    BEARING HOUSING ASSEMBLY, UPPER (NOT AS SHOWN)
    SERIAL #2810637 AND UP
  • 16
    30-72961 BEARING, BALL - UPPER BEARING HOUSING
    BEARING, BALL - UPPER BEARING HOUSING
  • 17
    31-31410 BEARING, ROLLER - UPPER BEARING HOUSING
    BEARING, ROLLER - UPPER BEARING HOUSING
  • 18
    26-31411 OIL SEAL, UPPER BEARING HOUSING
    SERIAL 00000000-02721150
    OIL SEAL, UPPER BEARING HOUSING
    SERIAL 00000000-02721150
  • 18
    26-66301 OIL SEAL, UPPER BEARING HOUSING
    SERIAL 02810637-09999999
    OIL SEAL, UPPER BEARING HOUSING
    SERIAL 02810637-09999999
  • 19
    25-20863 "O" RING, UPPER BEARING HOUSING
    "O" RING, UPPER BEARING HOUSING
  • 20
    54-34598 CLAMP, HOLD DOWN RING
    SERIAL #2721150 AND BELOW
    CLAMP, HOLD DOWN RING
    SERIAL #2721150 AND BELOW
  • 21
    10-36205 SCREW, RING CLAMP TO BEARING HOUSING (9/16")
    SERIAL #2721150 AND BELOW
    SCREW, RING CLAMP TO BEARING HOUSING (9/16")
    SERIAL #2721150 AND BELOW
  • 22
    24-34731 SPRING, RING CLAMP SCREW
    SERIAL #2721150 AND BELOW
    SPRING, RING CLAMP SCREW
    SERIAL #2721150 AND BELOW
  • 23
    10-28707 SCREW, UPPER BEARING HOUSING (1/2")
    SCREW, UPPER BEARING HOUSING (1/2")
  • 24
    27-780321 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 25
    31430 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 26
    10-20665 SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
    SERIAL #2721150 AND BELOW
    SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
    SERIAL #2721150 AND BELOW
  • 26
    10-20720 SCREW, PORT COVER TO CYLINDER BLOCK (5/8")
    SERIAL #2721150 AND BELOW
    SCREW, PORT COVER TO CYLINDER BLOCK (5/8")
    SERIAL #2721150 AND BELOW
  • 26
    10-20665 SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
    SERIAL #2810637 AND UP
    SCREW, PORT COVER TO CYLINDER BLOCK (1/2")
    SERIAL #2810637 AND UP
  • 27
    1019-7465A1 COVER, CYLINDER BLOCK
    SERIAL 00000000-02721150
    COVER, CYLINDER BLOCK
    SERIAL 00000000-02721150
  • 27
    1019-7465A1 COVER, CYLINDER BLOCK
    SERIAL 02810637-09999999
    COVER, CYLINDER BLOCK
    SERIAL 02810637-09999999
  • 28
    27-41382 GASKET, CYLINDER BLOCK TO COVER
    GASKET, CYLINDER BLOCK TO COVER
  • 29
    10-64278 SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8")
    SERIAL #2721150 AND BELOW
    SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8")
    SERIAL #2721150 AND BELOW
  • 29
    10-21091 SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8")
    SERIAL #2810637 AND UP
    SCREW, CYL. BLOCK COVER TO CYL. BLOCK (1-1/8")
    SERIAL #2810637 AND UP
  • 30
    11-20184 NUT, CYLINDER BLOCK COVER MOUNTING SCREW
    NUT, CYLINDER BLOCK COVER MOUNTING SCREW
  • 31
    27-78035 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 32
    78034 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 33
    27-78035 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 34
    74919T COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 35
    10-28668 SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")
    SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")
  • 36
    30212 TERMINAL BLOCK, EXHAUST MANIFOLD COVER
    SERIAL #2958118 AND BELOW
    TERMINAL BLOCK, EXHAUST MANIFOLD COVER
    SERIAL #2958118 AND BELOW
  • 37
    10-35519 SCREW, TERMINAL BLOCK TO MANIFOLD COVER (1/2")
    SERIAL #2958118 AND BELOW
    SCREW, TERMINAL BLOCK TO MANIFOLD COVER (1/2")
    SERIAL #2958118 AND BELOW
  • 38
    10-62568 SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK (3/8")
    SERIAL #2958118 AND BELOW
    SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK (3/8")
    SERIAL #2958118 AND BELOW
  • 39
    54-24836 CLIP, MAGNETO GROUND LEAD
    SERIAL #2721150 AND BELOW SERIAL 00000000-02721150
    CLIP, MAGNETO GROUND LEAD
    SERIAL #2721150 AND BELOW SERIAL 00000000-02721150
  • 40
    10-62568 SCREW, GROUND LEAD CLIP TO MANIFOLD COVER
    SERIAL #2721150 AND BELOW
    SCREW, GROUND LEAD CLIP TO MANIFOLD COVER
    SERIAL #2721150 AND BELOW
  • 41
    8M0084613 "D" WASHER, GROUND LEAD FASTENING SCREW
    SERIAL #2721150 AND BELOW
    "D" WASHER, GROUND LEAD FASTENING SCREW
    SERIAL #2721150 AND BELOW
  • 42
    30-72961 BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
  • 43
    26-31411 OIL SEAL, CRANKCASE (LOWER)
    SERIAL 00000000-02721150
    OIL SEAL, CRANKCASE (LOWER)
    SERIAL 00000000-02721150
  • 43
    26-56397 OIL SEAL, CRANCASE (LOWER)
    SERIAL 02810637-09999999
    OIL SEAL, CRANCASE (LOWER)
    SERIAL 02810637-09999999
  • 44
    10-23015 SCREW, ADJUSTING - THROTTLE CONTROL (1")
    SCREW, ADJUSTING - THROTTLE CONTROL (1")
  • 45
    11-68219 NUT, THROTTLE CONTROL ADJUSTING SCREW
    NUT, THROTTLE CONTROL ADJUSTING SCREW
