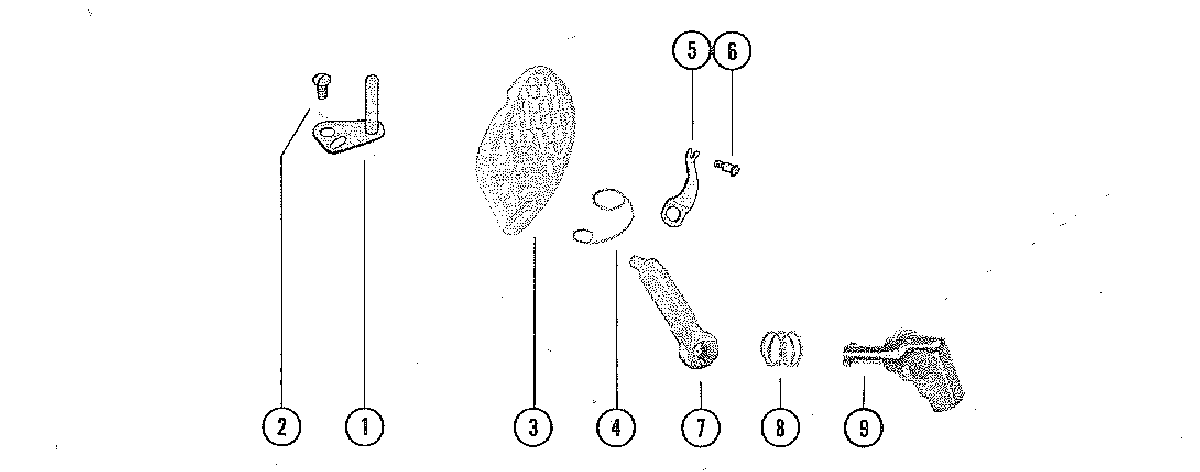

CARBURETOR CHOKE LINKAGE для Mercury - 75 2529895 THRU 3274632
-
№АртикулНазвание
-
159000 THROTTLE LEVER ASSEMBLY
SERIAL #2958118 AND BELOWTHROTTLE LEVER ASSEMBLY
SERIAL #2958118 AND BELOW -
210-29239 SCREW, THROTTLE LEVER TO CARBURETOR (1/2")
SERIAL #2958118 AND BELOWSCREW, THROTTLE LEVER TO CARBURETOR (1/2")
SERIAL #2958118 AND BELOW -
159000 THROTTLE LEVER
SERIAL#3016581 AND UPTHROTTLE LEVER
SERIAL#3016581 AND UP -
210-20597 SCREW, THROTTLE LEVER TO CARBURETOR
SERIAL#3016581 AND UPSCREW, THROTTLE LEVER TO CARBURETOR
SERIAL#3016581 AND UP -
379092 SHUTTER AND SCREEN, CHOKE - CARBURETORSHUTTER AND SCREEN, CHOKE - CARBURETOR
-
424-53310 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
524-55299A1 SPRING ASSEMBLY, CARBURETORSPRING ASSEMBLY, CARBURETOR
-
610-55298 SCREW, SPRING TO CARBURETORSCREW, SPRING TO CARBURETOR
-
753188 LEVER, CHOKELEVER, CHOKE
-
824-53190 SPRING, TENSION - CHOKE KNOBSPRING, TENSION - CHOKE KNOB
-
953200 KNOB, CHOKEKNOB, CHOKE
Все узлы модели:
- BOTTOM COWL AND ADAPTOR PLATE
- CARBURETOR ASSEMBLY
- • CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
