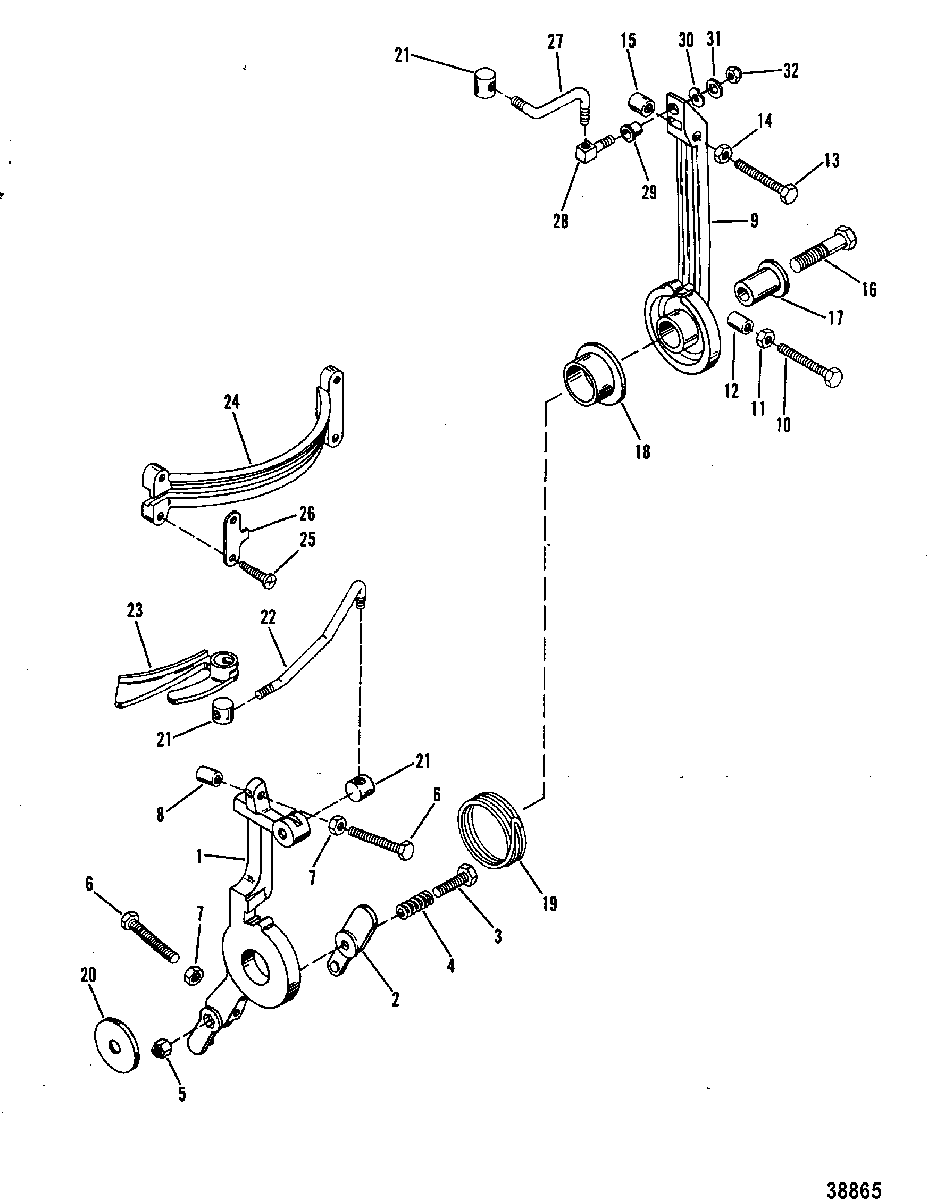

THROTTLE LEVER AND SPARK ADVANCE LEVER для Mercury - 75 (4 CYL.) 9393856 & Up

  • №
    Артикул
    Название
  • 1
    73416 LEVER, Throttle
    LEVER, Throttle
  • 2
    73404 LATCH, THROTTLE LEVER
    LATCH, THROTTLE LEVER
  • 3
    10-59702 SCREW, (.250-28 x .875) Stainless Steel
    SCREW, (.250-28 x .875) Stainless Steel
  • 4
    24-20099 SPRING, LATCH SCREW
    SPRING, LATCH SCREW
  • 5
    11-36069 NUT, LATCH SCREW
    NUT, LATCH SCREW
  • 6
    10-69029 SCREW, ADJUSTING-THROTTLE LEVER (1-3/4")
    SCREW, ADJUSTING-THROTTLE LEVER (1-3/4")
  • 7
    11-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
    NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
  • 8
    52023 CAP, NYLONG-ADJUSTING SCREW
    CAP, NYLONG-ADJUSTING SCREW
  • 9
    73414 ARM, SPARK ADVANCE
    ARM, SPARK ADVANCE
  • 10
    10-73656 SCREW, ADJUSTING-SPARK ADVANCE ARM (1-3/8")
    SCREW, ADJUSTING-SPARK ADVANCE ARM (1-3/8")
  • 11
    11-68219 NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
    NUT, (#10-32) Stainless Steel, JAM-ADJUSTING SCREW
  • 12
    48039 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 13
    10-67916 SCREW, ADJUSTING-APRK ADVANCE ARM (2")
    SCREW, ADJUSTING-APRK ADVANCE ARM (2")
  • 14
    11-29598 NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
    NUT, (.250-28) Stainless Steel, JAM-ADJUSTING SCREW
  • 15
    52023 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 16
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 17
    23-55164 BUSHING, LEVER AND ARM SCREW
    BUSHING, LEVER AND ARM SCREW
  • 18
    23-55171 BUSHING, FLANGE-LEVER AND ARM SCREW
    BUSHING, FLANGE-LEVER AND ARM SCREW
  • 19
    24-73375 SPRING, RETURN-LEVER AND ARM SCREW
    SPRING, RETURN-LEVER AND ARM SCREW
  • 20
    12-46765 WASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREW
    WASHER, (.390 x 1.50 x .120), LEVER AND ARM SCREW
  • 21
    60572 BARREL, NYLON-LEVER AND ARM
    BARREL, NYLON-LEVER AND ARM
  • 22
    73374 LINK ROD, THROTTLE
    LINK ROD, THROTTLE
  • 23
    73432 CAM, Throttle
    CAM, Throttle
  • 24
    77001 HOUSING, THROTTLE CAM
    HOUSING, THROTTLE CAM
  • 25
    10-69013 SCREW, (#10-16 x .880), HOUSING TO CRANKCASE
    SCREW, (#10-16 x .880), HOUSING TO CRANKCASE
  • 26
    77158 SPACER, THROTTLE CAM HOUSING
    SPACER, THROTTLE CAM HOUSING
  • 27
    77010 LINK ROD, SPARK ADVANCE
    LINK ROD, SPARK ADVANCE
  • 28
    76158A1 SWIVEL ASSEMBLY, LINK ROD TO ARM
    SWIVEL ASSEMBLY, LINK ROD TO ARM
  • 29
    23-26856 BUSHING, NYLON-LINK ROD SWIVEL
    BUSHING, NYLON-LINK ROD SWIVEL
  • 30
    13-29402 WAVE WASHER, LINK ROD SWIVEL
    WAVE WASHER, LINK ROD SWIVEL
  • 31
    12-73288 WASHER, LINK ROD SWIVEL
    WASHER, LINK ROD SWIVEL
  • 32
    11-20110 NUT, (#10-32), LINK ROD SWIVEL
    NUT, (#10-32), LINK ROD SWIVEL
