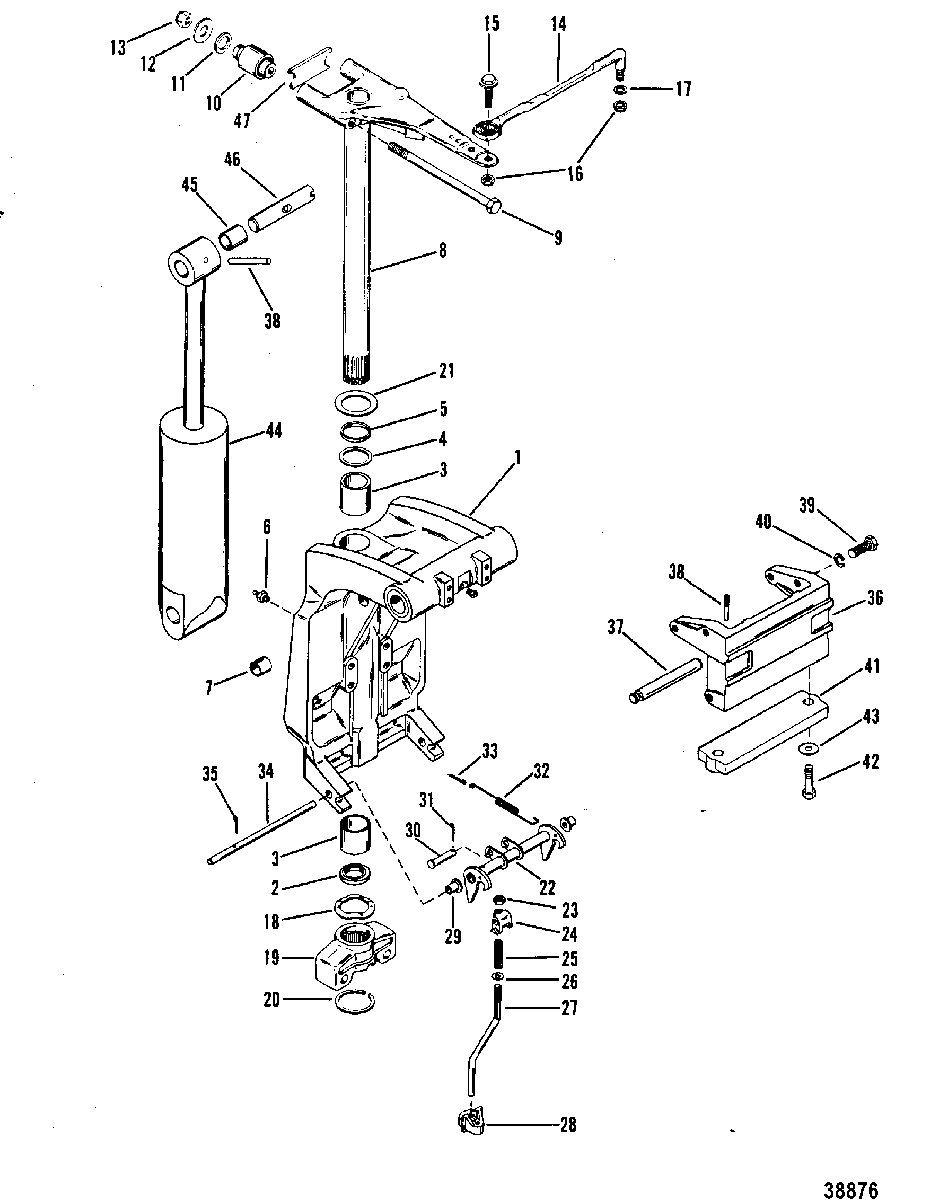

SWIVEL BRACKET AND STEERING ARM для Mercury - 75 (4 CYL.) 9393856 & Up

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPER
    BUSHING, SWIVEL BRACKET - LOWER AND UPPER
  • 4
    25-33466 O-RING, SWIVEL BRACKET - UPPER
    O-RING, SWIVEL BRACKET - UPPER
  • 5
    23-67668 SPACER, SWIVEL BRACKET - UPPER
    SPACER, SWIVEL BRACKET - UPPER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    99661A2 SWIVEL PIN ASSEMBLY
    SWIVEL PIN ASSEMBLY
  • 9
    10-99621 SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
    SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
  • 10
    75296 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 11
    12-47840 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 13
    11-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
    NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
  • 14
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 15
    10-849838 SCREW, (.375-24 x 1.25)
    SCREW, (.375-24 x 1.25)
  • 16
    11-8M0042636 NUT, (.375-24), STEERING LINK SCREW
    NUT, (.375-24), STEERING LINK SCREW
  • 17
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
  • 18
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 19
    99644F1 YOKE, Bottom
    (MERCURY)
    YOKE, Bottom
    (MERCURY)
  • 19
    99644F2 YOKE, Bottom
    (MARINER)
    YOKE, Bottom
    (MARINER)
  • 20
    53-67684 RING, Retaining, BOTTOM YOKE
    RING, Retaining, BOTTOM YOKE
  • 21
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 22
    14664A2 LOCK, Reverse
    NOT USED WITH POWER TRIM
    LOCK, Reverse
    NOT USED WITH POWER TRIM
  • 23
    11-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
    NOT USED WITH POWER TRIM
    NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
    NOT USED WITH POWER TRIM
  • 24
    996361 YOKE, PUSH ROD
    NOT USED WITH POWER TRIM
    YOKE, PUSH ROD
    NOT USED WITH POWER TRIM
  • 25
    24-44297 SPRING, PUSH ROD NUT
    NOT USED WITH POWER TRIM
    SPRING, PUSH ROD NUT
    NOT USED WITH POWER TRIM
  • 26
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
    NOT USED WITH POWER TRIM
    WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
    NOT USED WITH POWER TRIM
  • 27
    43414 PUSH ROD
    NOT USED WITH POWER TRIM
    PUSH ROD
    NOT USED WITH POWER TRIM
  • 28
    92704 GUIDE, PUSH ROD
    NOT USED WITH POWER TRIM
    GUIDE, PUSH ROD
    NOT USED WITH POWER TRIM
  • 29
    23-69132 BUSHING, REVERSE LOCK SHAFT
    NOT USED WITH POWER TRIM
    BUSHING, REVERSE LOCK SHAFT
    NOT USED WITH POWER TRIM
  • 30
    17-99663 PIN, Clevis, REVERSE LOCK
    NOT USED WITH POWER TRIM
    PIN, Clevis, REVERSE LOCK
    NOT USED WITH POWER TRIM
  • 31
    18-25191 COTTER PIN, CLEVIS PIN
    NOT USED WITH POWER TRIM
    COTTER PIN, CLEVIS PIN
    NOT USED WITH POWER TRIM
  • 32
    24-996261 SPRING, REVERSE LOCK
    NOT USED WITH POWER TRIM
    SPRING, REVERSE LOCK
    NOT USED WITH POWER TRIM
  • 33
    18-47959 COTTER PIN, SPRING
    NOT USED WITH POWER TRIM
    COTTER PIN, SPRING
    NOT USED WITH POWER TRIM
  • 34
    99606 SHAFT, REVERSE LOCK
    NOT USED WITH POWER TRIM
    SHAFT, REVERSE LOCK
    NOT USED WITH POWER TRIM
  • 35
    18-45882 COTTER PIN, SHAFT
    NOT USED WITH POWER TRIM
    COTTER PIN, SHAFT
    NOT USED WITH POWER TRIM
  • 36
    99653 BRACKET, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    BRACKET, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 37
    99619 SHAFT, SHOCK ABSORBER (LOWER)
    NOT USED WITH POWER TRIM
    SHAFT, SHOCK ABSORBER (LOWER)
    NOT USED WITH POWER TRIM
  • 38
    17-821539 PIN, Groove, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    PIN, Groove, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 39
    10-4000377 SCREW, (M10 x 30), BRACKET
    SCREW, (M10 x 30), BRACKET
  • 40
    13-400258 LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
    LOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
  • 41
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 42
    10-4000332 SCREW, (M6 x 35), ANODE
    SCREW, (M6 x 35), ANODE
  • 43
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
  • 44
    55-99724T15 SHOCK ABSORBER
    (MERCURY) NOT USED WITH POWER TRIM
    SHOCK ABSORBER
    (MERCURY) NOT USED WITH POWER TRIM
  • 44
    55-99724T15 SHOCK ABSORBER
    (MARINER) NOT USED WITH POWER TRIM
    SHOCK ABSORBER
    (MARINER) NOT USED WITH POWER TRIM
  • 45
    23-821207 BUSHING, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
    BUSHING, SHOCK ABSORBER
    NOT USED WITH POWER TRIM
  • 46
    99625002 SHAFT, SHOCK ABSORBER (UPPER)
    NOT USED WITH POWER TRIM
    SHAFT, SHOCK ABSORBER (UPPER)
    NOT USED WITH POWER TRIM
  • 47
    28203 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • -
    41760A2 REPAIR KIT, Shock Absorber
    REPAIR KIT, Shock Absorber
  • -
    27-73645A87 GASKET SET
    GASKET SET
