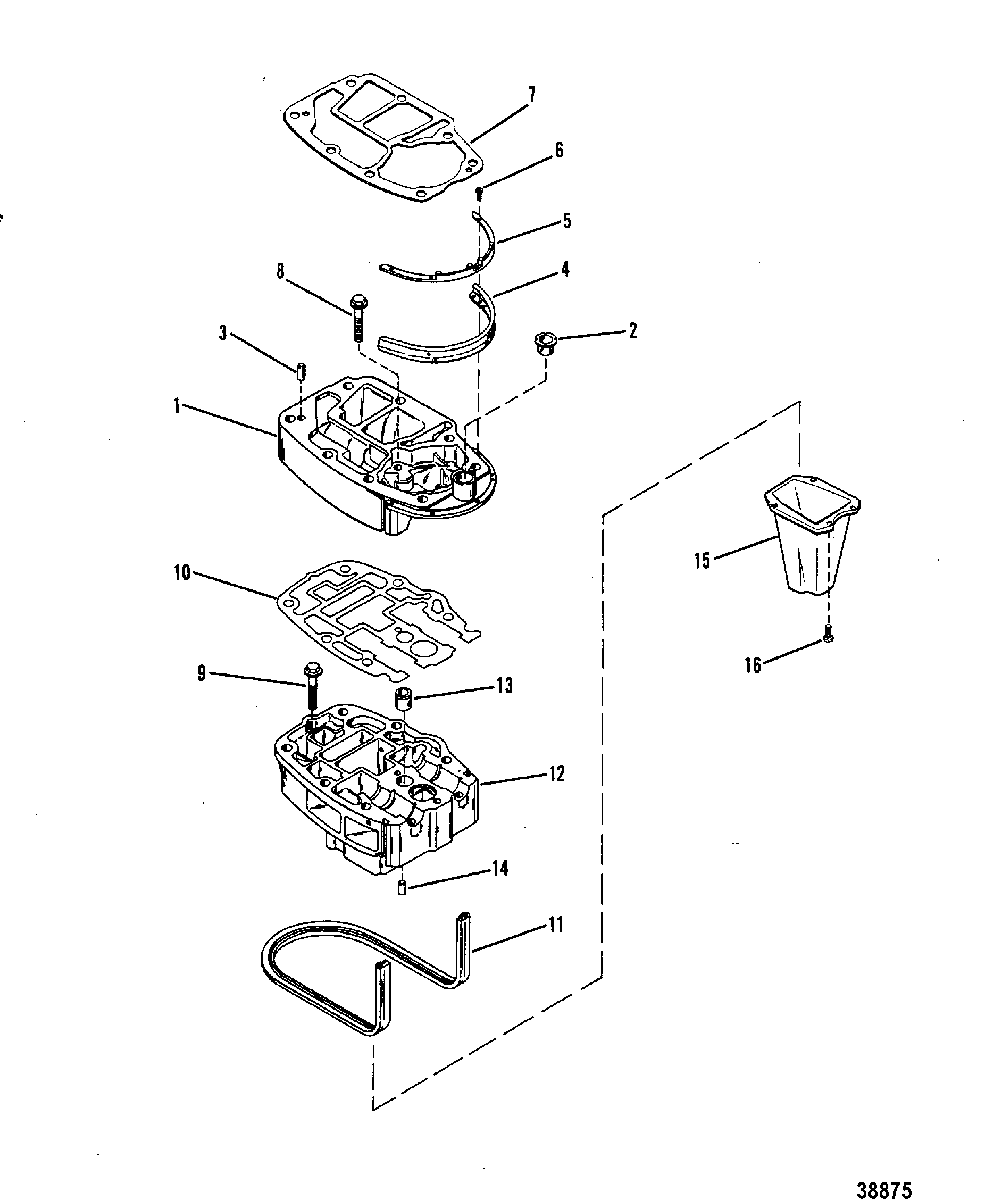

EXHAUST EXTENSION PLATE для Mercury - 75 (4 CYL.) 9393856 & Up

  • №
    Артикул
    Название
  • 1
    43289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 2
    23-27132 BUSHING, NYLON-EXHAUST EXTENSION PLATE
    BUSHING, NYLON-EXHAUST EXTENSION PLATE
  • 3
    17-23784 PIN, Dowel, EXHAUST EXTENSION PLATE
    PIN, Dowel, EXHAUST EXTENSION PLATE
  • 4
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 5
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE
    STRIP, RETAINING - EXHAUST EXTENSION PLATE
  • 6
    10-37571 SCREW, (.190-32 x .500)
    SCREW, (.190-32 x .500)
  • 7
    27-692381 GASKET, POWERHEAD
    GASKET, POWERHEAD
  • 8
    10-66023 SCREW, (.312-18 x 2.00) Flange Head
    SCREW, (.312-18 x 2.00) Flange Head
  • 9
    10-66023 SCREW, (.312-18 x 2.00) Flange Head
    SCREW, (.312-18 x 2.00) Flange Head
  • 10
    27-661021 GASKET, DRIVESHAFT HOUSING PLATE
    GASKET, DRIVESHAFT HOUSING PLATE
  • 11
    26-60898 SEAL, DRIVESHAFT HOUSING PLATE
    SEAL, DRIVESHAFT HOUSING PLATE
  • 12
    43290A4 PLATE ASSEMBLY, DRIVESHAFT HOUSING
    PLATE ASSEMBLY, DRIVESHAFT HOUSING
  • 13
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 14
    17-23784 PIN, Dowel, DRIVESHAFT HOUSING PLATE
    PIN, Dowel, DRIVESHAFT HOUSING PLATE
  • 15
    99698 TUBE, Exhaust
    TUBE, Exhaust
  • 16
    10-65414 SCREW (3/4 Inches)
    SCREW (3/4 Inches)
  • -
    27-73645A87 GASKET SET
    GASKET SET
