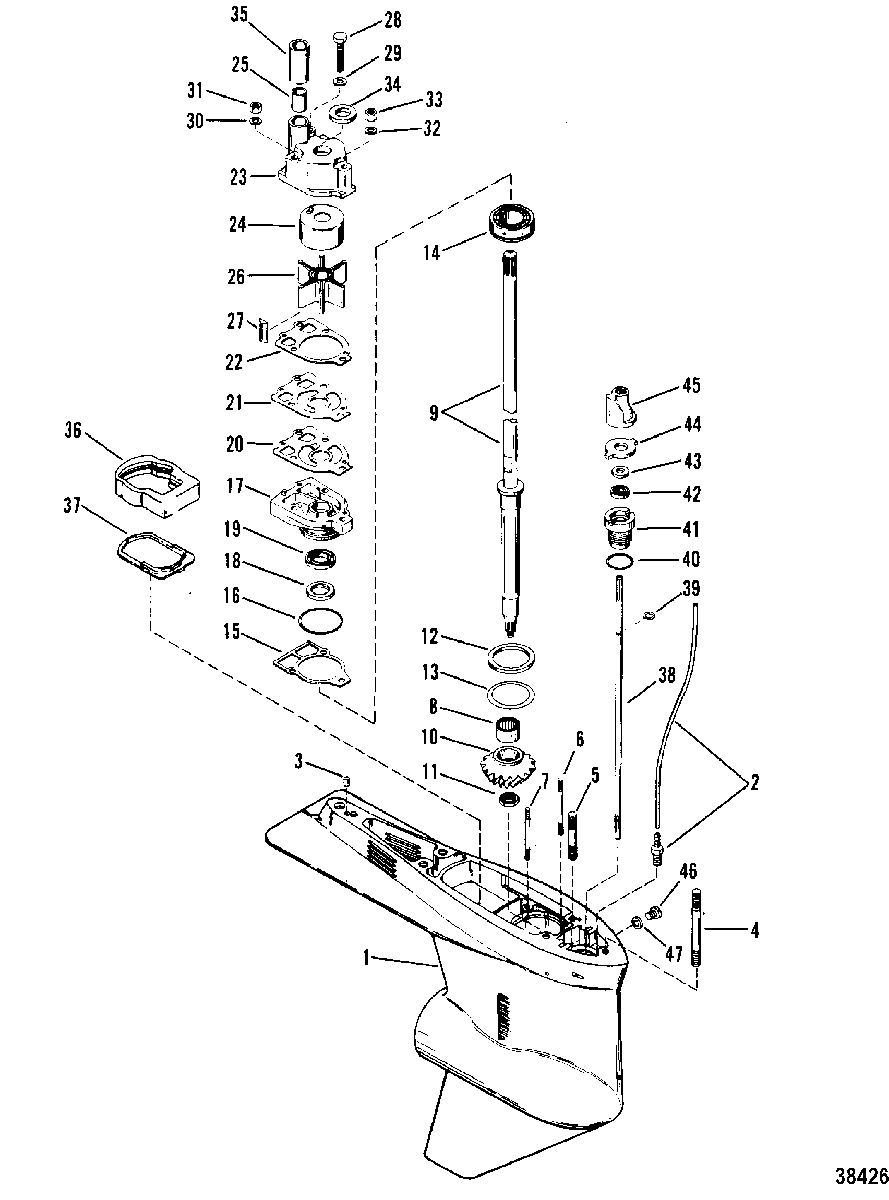

GEAR HOUSING(DRIVESHAFT) для Mercury - 75 (4 CYL.) 6432901 & Up

  • №
    Артикул
    Название
  • -
    1655-7333A25 GEAR HOUSING ASSEMBLY
    (MERCURY)
    GEAR HOUSING ASSEMBLY
    (MERCURY)
  • -
    1655-7333A41 GEAR HOUSING ASSEMBLY
    (MARINER)
    GEAR HOUSING ASSEMBLY
    (MARINER)
  • 1
    1655-7333T23 GEAR HOUSING ASSEMBLY (BASIC)
    (MERCURY)
    GEAR HOUSING ASSEMBLY (BASIC)
    (MERCURY)
  • 1
    1655-7333A43 GEAR HOUSING ASSEMBLY (BASIC)
    (MARINER)
    GEAR HOUSING ASSEMBLY (BASIC)
    (MARINER)
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 4
    16-57921 STUD, (.437-14/.437-20 x 4.00), GEAR HOUSING
    STUD, (.437-14/.437-20 x 4.00), GEAR HOUSING
  • 5
    16-8M0133358 STUD, (.44 x 2.06), GEAR HOUSING
    STUD, (.44 x 2.06), GEAR HOUSING
  • 6
    16-8M0034463 STUD, (.312 x 3.38), WATER PUMP
    STUD, (.312 x 3.38), WATER PUMP
  • 7
    16-69501 STUD, WATER PUMP (3-1/8")
    STUD, WATER PUMP (3-1/8")
  • 8
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 9
    45-42646 DRIVESHAFT
    DRIVESHAFT
  • 10
    43-75316T GEAR, Pinion, DRIVESHAFT
    GEAR, Pinion, DRIVESHAFT
  • 11
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFT
    NUT, (.625-18), PINION GEAR TO DRIVESHAFT
  • 12
    23-70412 SPACER, BEARING TO WATER PUMP
    SPACER, BEARING TO WATER PUMP
  • 13
    15-57007A1 SHIM, BEARING TO WATER PUMP
    SHIM, BEARING TO WATER PUMP
  • 14
    31-69220T BEARING, Roller, DRIVESHAFT
    BEARING, Roller, DRIVESHAFT
  • 15
    27-856704 GASKET, WATER PUMP TO GEAR HOUSING
    GASKET, WATER PUMP TO GEAR HOUSING
  • 16
    25-33145 O-RING, (1.984 x .139), WATER PUMP
    O-RING, (1.984 x .139), WATER PUMP
  • 17
    46-96146A5 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 18
    26-94038 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 19
    26-16977 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 20
    27-8M0090319 GASKET, LOWER - WATER PUMP
    GASKET, LOWER - WATER PUMP
  • 21
    324351 FACE PLATE, FAEC - WATER PUMP
    FACE PLATE, FAEC - WATER PUMP
  • 22
    27-858524 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 23
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 24
    48752T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 25
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 26
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 27
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 28
    10-96411 SCREW, (#14-8 x 2.25), WATER PUMP
    SCREW, (#14-8 x 2.25), WATER PUMP
  • 29
    12-20583 WASHER, WATER PUMP SCREW
    WASHER, WATER PUMP SCREW
  • 30
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP SCREW AND STUD
  • 31
    11-8267119 NUT, (.250-28), WATER PUMP FASTENING SCREW
    NUT, (.250-28), WATER PUMP FASTENING SCREW
  • 32
    12-36001 WASHER, WATER PUMP STUD
    WASHER, WATER PUMP STUD
  • 33
    11-82670911 NUT, (.312-24) Stainless Steel, WATER PUMP STUD
    NUT, (.312-24) Stainless Steel, WATER PUMP STUD
  • 34
    25-30271 RING, Rubber
    RING, Rubber
  • 35
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 36
    37641001 SEAL, EXHAUST TUBE
    SEAL, EXHAUST TUBE
  • 37
    38051 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 38
    76062A1 SHAFT ASSEMBLY, SHIFT
    SHAFT ASSEMBLY, SHIFT
  • 39
    53-29641 E RING, RETAINING - SHIFT SHAFT
    E RING, RETAINING - SHIFT SHAFT
  • 40
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 41
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 42
    26-8164641 SEAL, Oil, SHIFT SHAFT HOUSING
    SEAL, Oil, SHIFT SHAFT HOUSING
  • 43
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 44
    78036 BASE, LOWER - REVERSE LOCKING
    NOT USED WITH POWER TRIM
    BASE, LOWER - REVERSE LOCKING
    NOT USED WITH POWER TRIM
  • 45
    43308T1 CAM, REVERSE LOCKING
    NOT USED WITH POWER TRIM
    CAM, REVERSE LOCKING
    NOT USED WITH POWER TRIM
  • 46
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER AND VENT HOLE
    SCREW, (.375-16 x .250), GREASE FILLER AND VENT HOLE
  • 46
    22-8M0058389 SCREW, Magnetic, DRAIN
    SCREW, Magnetic, DRAIN
  • 47
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • -
    27-73645A87 GASKET SET
    GASKET SET
  • -
    46-96148A8 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-55682A1 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    53168A1 PUMP KIT, Water - Heavy Duty
    PUMP KIT, Water - Heavy Duty
