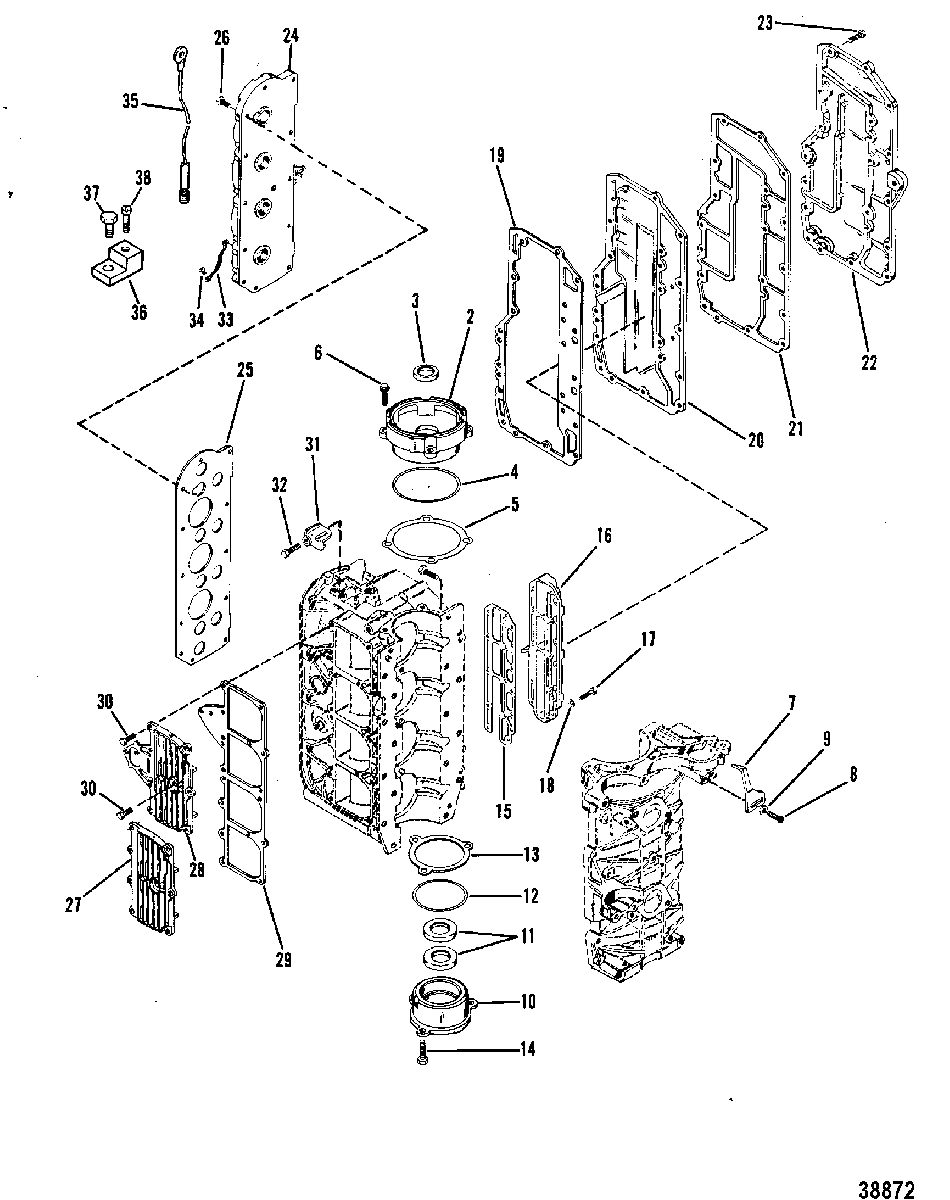

END CAPS, MANIFOLD AND EXHAUST COVER для Mercury - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
21161-5940A2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 SEALSEAL
-
425-47254 O-RINGO-RING
-
515-73644A1 SHIM, END CAP TO CRANKCASE (.006-10)SHIM, END CAP TO CRANKCASE (.006-10)
-
610-812618 SCREW, UPPER END CAP (1")SCREW, UPPER END CAP (1")
-
743352 POINTER, TIMINGPOINTER, TIMING
-
810-65746 SCREW, (.250-20 x .75), TIMING POINTER (3/4")SCREW, (.250-20 x .75), TIMING POINTER (3/4")
-
912-20533 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
-
101148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
1126-41953 SEALSEAL
-
1225-32546 O-RINGO-RING
-
1315-20085A1 SHIM SET, END CAP TO CRANKCASE (.005-10)SHIM SET, END CAP TO CRANKCASE (.005-10)
-
1410-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
1527-73665 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1676198 COVER, WATER JACKET-CYLINDER BLOCKCOVER, WATER JACKET-CYLINDER BLOCK
-
1710-53167T SCREW, (.312-18 x .880), WATER JACKET COVERSCREW, (.312-18 x .880), WATER JACKET COVER
-
1812-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREWWASHER, (.323 x .563 x .063) Stainless Steel, WATER JACKET COVER SCREW
-
1927-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2073436 PLATE, BAFFLEPLATE, BAFFLE
-
2127-854961 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
2278277A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2310-53576 SCREW, (.312-18 x 1.125), MANIFOLD COVERSCREW, (.312-18 x 1.125), MANIFOLD COVER
-
241021-8340 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2527-961711 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2610-76630 SCREW, CYLINDER BLOCK COVER (1")SCREW, CYLINDER BLOCK COVER (1")
-
27733201 COVER, TRANSFER PORT-TOP
(TRIANGLE FUEL PUMP)COVER, TRANSFER PORT-TOP
(TRIANGLE FUEL PUMP) -
2714429A1 COVER, TRANSFER PORT-TOP
(SQUARE FUEL PUMP)COVER, TRANSFER PORT-TOP
(SQUARE FUEL PUMP) -
2887872 COVER, TRANSFER PORT-BOTTOMCOVER, TRANSFER PORT-BOTTOM
-
2927-73645 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3010-49668 SCREW, (.250-20 x .750), TRANSFER PORT COVERSCREW, (.250-20 x .750), TRANSFER PORT COVER
-
3137440 BRACKET, MOUNT SUPPORT-CYLINDER BLOCKBRACKET, MOUNT SUPPORT-CYLINDER BLOCK
-
3210-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
3346933A3 STRAP ASEMBLY, Ground
EXHAUST COVER SCREWSTRAP ASEMBLY, Ground
EXHAUST COVER SCREW -
3410-62568 SCREW, (#10-16 x .375), GROUND STRAPSCREW, (#10-16 x .375), GROUND STRAP
-
3587-96829A1 SWITCH ASSEMBLY, TemperatureSWITCH ASSEMBLY, Temperature
-
3686-45915 TERMINAL BLOCKTERMINAL BLOCK
-
3710-62568 SCREW, (#10-16 x .375), TERMINAL BLOCKSCREW, (#10-16 x .375), TERMINAL BLOCK
-
3810-72169 SCREW, (#10-24 x .50), TERMINAL BLOCKSCREW, (#10-24 x .50), TERMINAL BLOCK
-
-27-73645A87 GASKET SETGASKET SET
