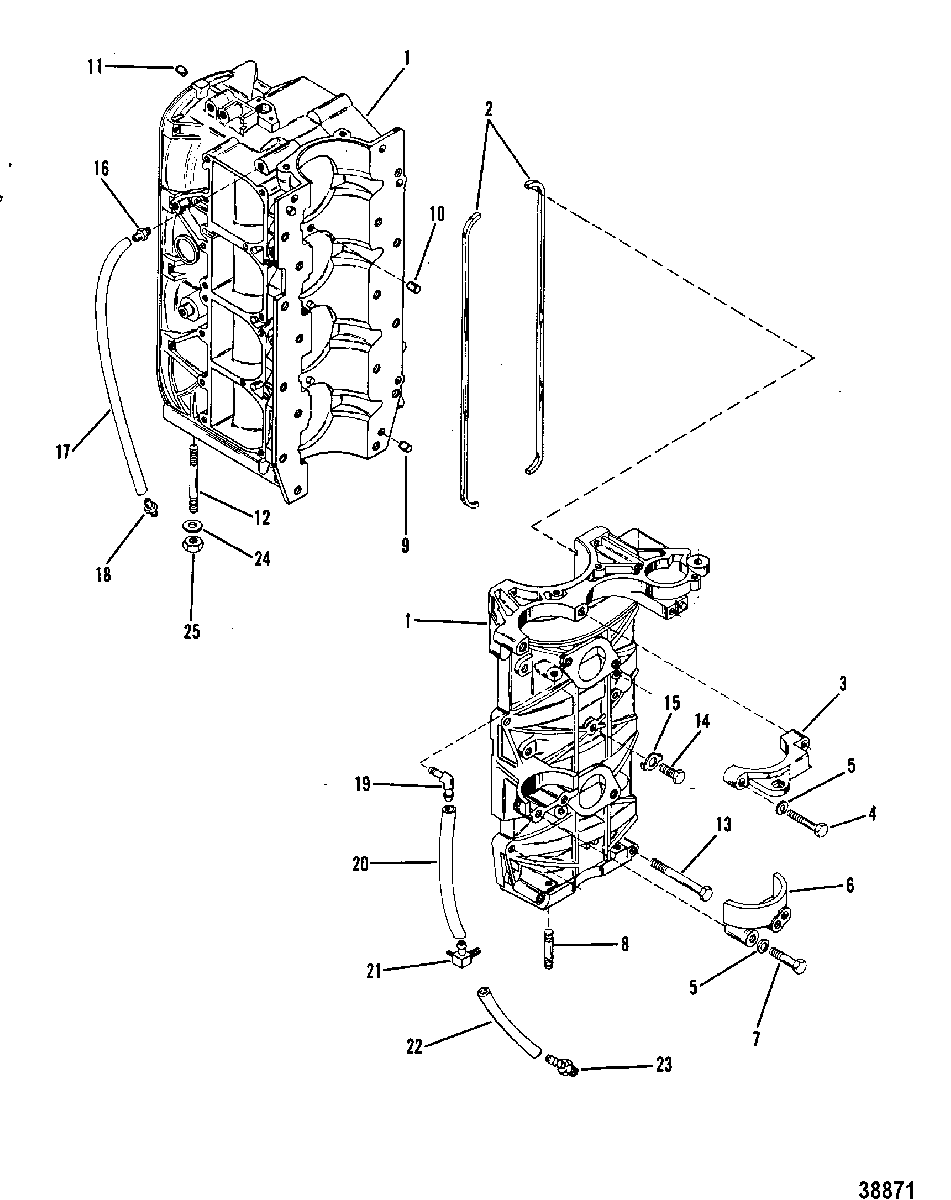

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
1871-8338A3 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
227-53650 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
356029T COVER, STARTER MOTOR(UPPER)COVER, STARTER MOTOR(UPPER)
-
410-31984 SCREW, (.312-18 x 1.375), COVER TO CRANKCASESCREW, (.312-18 x 1.375), COVER TO CRANKCASE
-
410-35385 SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASESCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE
-
513-26993 LOCKWASHER, (.312), COVER SCREWLOCKWASHER, (.312), COVER SCREW
-
676867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
710-73279 SCREW, (.312-18 x 1.880), COVER TO CRANKCASESCREW, (.312-18 x 1.880), COVER TO CRANKCASE
-
710-73658 SCREW, COVER TO CRANKCASE (5-1/2")SCREW, COVER TO CRANKCASE (5-1/2")
-
816-64281 STUD, (.375-16/.375-24 x 1.880)STUD, (.375-16/.375-24 x 1.880)
-
917-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
1017-63779 PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
-
1166517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
1216-64282 STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")
-
1310-57841 SCREW, (.312-18 x 2.750)SCREW, (.312-18 x 2.750)
-
1310-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1310-73657 SCREW, (.312-18 x 1.50)SCREW, (.312-18 x 1.50)
-
1410-20359 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1514-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
1621-42866 CHECK VALVE, BLEED HOSE-TOPCHECK VALVE, BLEED HOSE-TOP
-
1732-9938779 HOSE, CYLINDER BLEED (15-1/2")HOSE, CYLINDER BLEED (15-1/2")
-
1821-428671 CHECK VALVE, BLEED HOSE-BOTTOMCHECK VALVE, BLEED HOSE-BOTTOM
-
1922-996642 ELBOWELBOW
-
2032-8M0108355 LINE, (57.00 Inches Bulk), BALANCE (6-1/4")LINE, (57.00 Inches Bulk), BALANCE (6-1/4")
-
2122-130342 TEE, BALANCE HOSE TO CYLINDER BLOCK-LOWERTEE, BALANCE HOSE TO CYLINDER BLOCK-LOWER
-
2232-9938779 HOSE, BALANCE (5")HOSE, BALANCE (5")
-
2322-56759 CONNECTOR, AIR INLET COVERCONNECTOR, AIR INLET COVER
-
2412-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2511-69254 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
2511-82671013 NUT, (.375-24), POWERHEAD STUDSNUT, (.375-24), POWERHEAD STUDS
-
-97471T87 POWERHEAD
(Use with Triangular Fuel Pump)POWERHEAD
(Use with Triangular Fuel Pump) -
-97471T87 POWERHEAD ASSEMBLY
(Use with Square Fuel Pump)POWERHEAD ASSEMBLY
(Use with Square Fuel Pump)
