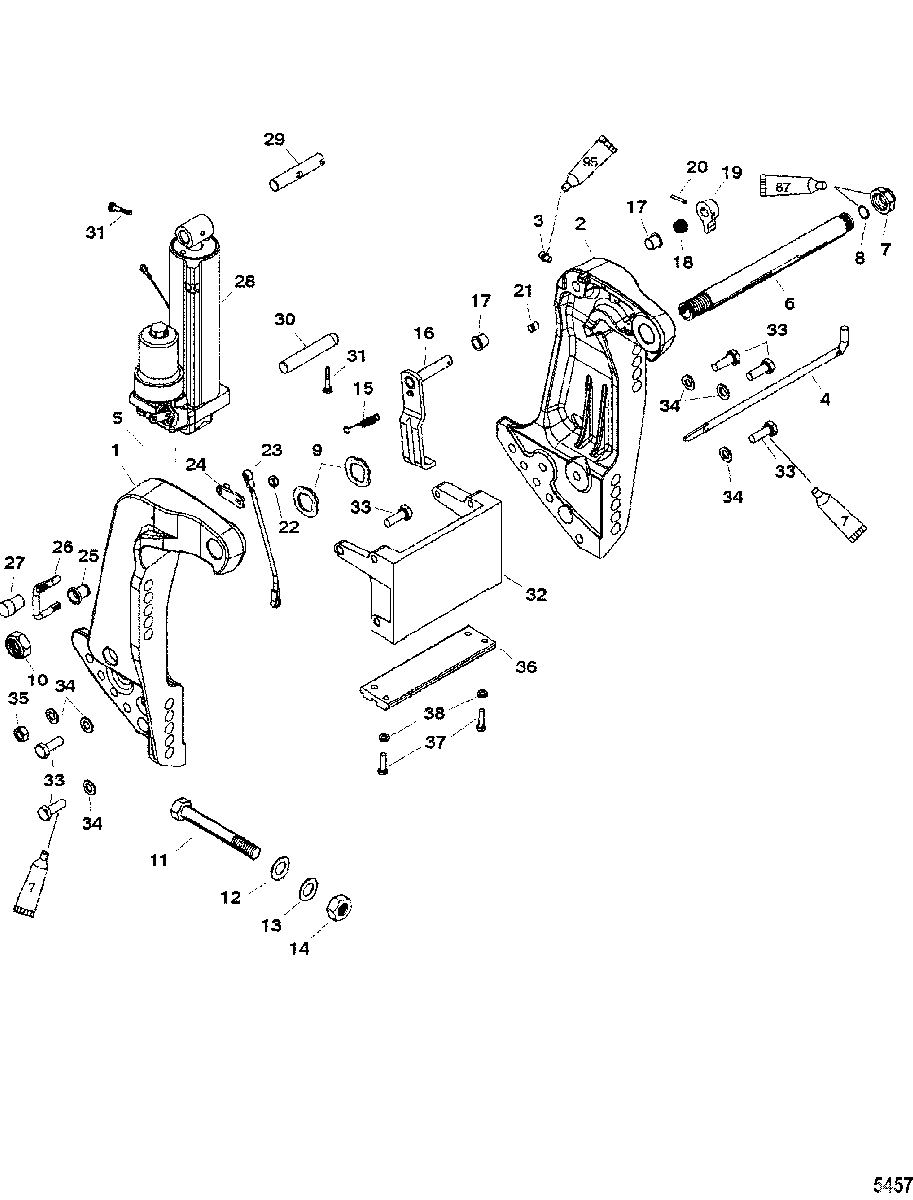

Transom Bracket(SN- USA 0T800999/ BEL 0P267999 and Below) для Mercury - 75 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
11400-8M0045064 BRACKET, Transom
(Stardboard)BRACKET, Transom
(Stardboard) -
21400-8M0045064 BRACKET ASSEMBLY, Transom
(Port)BRACKET ASSEMBLY, Transom
(Port) -
322-98727 FITTING, Grease
(Port)FITTING, Grease
(Port) -
417-8M0026068 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
537-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
6826125A1 TUBE KIT, TiltTUBE KIT, Tilt
-
6826125A1 TILT TUBE
(Coastal/Saltwater)TILT TUBE
(Coastal/Saltwater) -
711-82671327 NUT, (1.00-14)NUT, (1.00-14)
-
711-826135 NUT, (1.00-14) Nylon Insert
(Coastal/Saltwater)NUT, (1.00-14) Nylon Insert
(Coastal/Saltwater) -
825-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
913-88750 WASHERWASHER
-
1011-858869 NUT, (.875-14)NUT, (.875-14)
-
1011-826164 NUT, (.875-14)
(Coastal/Saltwater)NUT, (.875-14)
(Coastal/Saltwater) -
1110-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1212-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
1312-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1411-82671117 NUT, (.500-20)NUT, (.500-20)
-
1524-830899 SPRING, TensionSPRING, Tension
-
168M0109798 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1723-65830 NYLINERNYLINER
-
1824-830900 SPRING, CompressionSPRING, Compression
-
1999633 KNOBKNOB
-
2017-99615 PIN, GroovePIN, Groove
-
2117-893709 PINPIN
-
2211-826709110 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
238M0084731 LINK RODLINK ROD
-
24832042 ARMARM
-
2523-832040 BUSHINGBUSHING
-
26832039 LEVER, TiltLEVER, Tilt
-
278M0007469 TILT KNOBTILT KNOB
-
28835249T1 MANUAL TILT ASSEMBLY
(Breakdown Found on Manual Tilt Assist Components)MANUAL TILT ASSEMBLY
(Breakdown Found on Manual Tilt Assist Components) -
2999625002 SHAFT, UpperSHAFT, Upper
-
3017-818898 PIN, AnchorPIN, Anchor
-
3117-821539 PIN, TrilobePIN, Trilobe
-
328M0086406 BRACKET, AnchorBRACKET, Anchor
-
3310-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
3412-4002319 WASHERWASHER
-
3511-40114 NUT, (M10 x 1.5)NUT, (M10 x 1.5)
-
3697-818298Q1 ANODE KITANODE KIT
-
3710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
