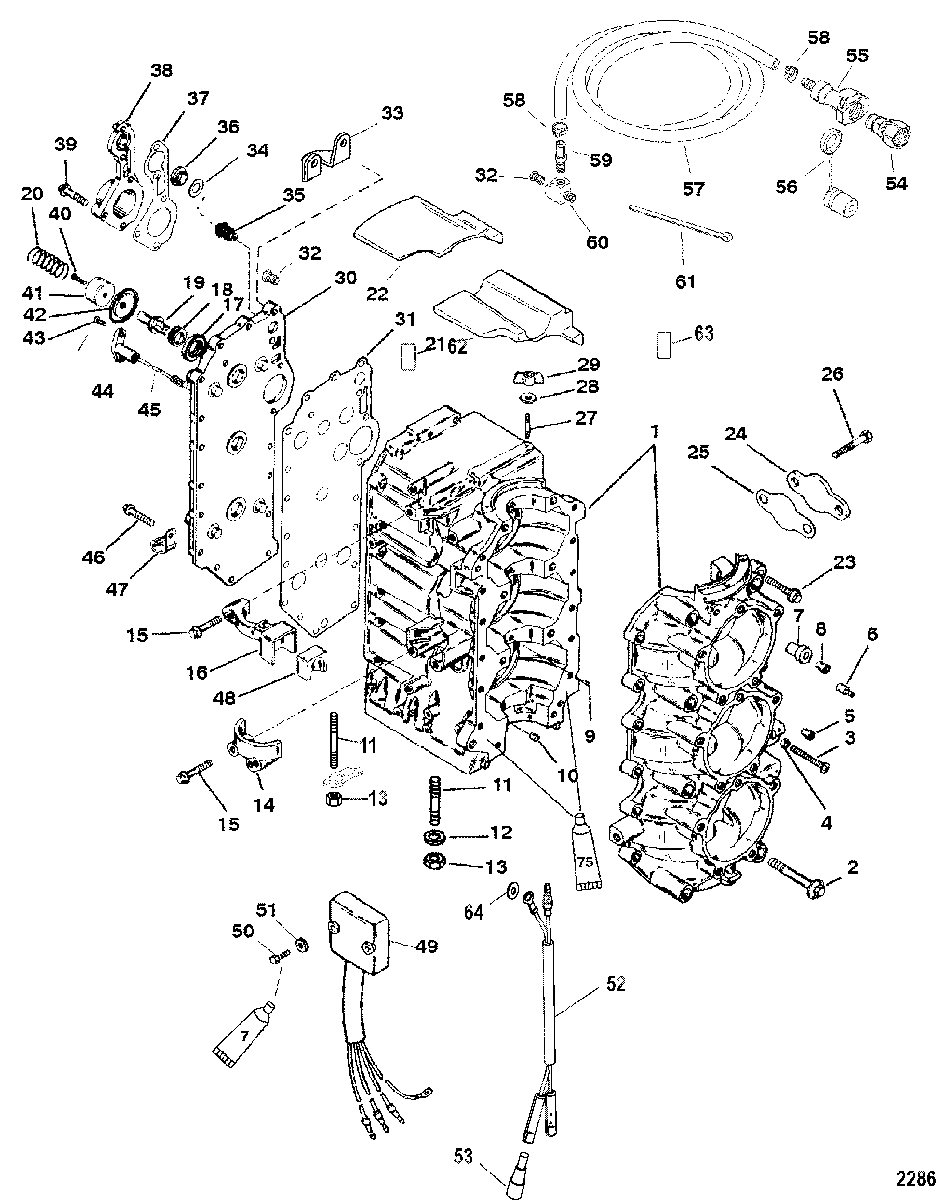

Cylinder Block для Mercury - 75 (3 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    876-898208A01 CYLINDER BLOCK
    (Oil Injection)
    CYLINDER BLOCK
    (Oil Injection)
  • 1
    876-898208A01 CYLINDER BLOCK
    (Non Oil Injection)
    CYLINDER BLOCK
    (Non Oil Injection)
  • 2
    10-4009680 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 3
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 4
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 5
    42942 CAP
    CAP
  • 6
    21-426233 CHECK VALVE (Press-In)
    CHECK VALVE (Press-In)
  • 7
    813801A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 9
    17-8M0036405 PIN, Bearing Race
    PIN, Bearing Race
  • 10
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 11
    16-821676A1 STUD KIT (M10 x 136)
    STUD KIT (M10 x 136)
  • 12
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 13
    11-40140 NUT, (M10)
    NUT, (M10)
  • 14
    76867 COVER, Bottom
    COVER, Bottom
  • 15
    10-81742750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 16
    428842 COVER, Top
    COVER, Top
  • 17
    65848 CARRIER
    CARRIER
  • 18
    25-64872 GROMMET
    GROMMET
  • 19
    86596T POPPET VALVE
    POPPET VALVE
  • 20
    24-42996 SPRING, (Stainless Steel)
    SPRING, (Stainless Steel)
  • 21
    824703A1 PLUG KIT
    PLUG KIT
  • 22
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 23
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 24
    12621 COVER
    (Non Oil Injection)
    COVER
    (Non Oil Injection)
  • 25
    27-126201 GASKET
    (Non Oil Injection)
    GASKET
    (Non Oil Injection)
  • 26
    10-82104512 SCREW, (M5 x 12)
    (Non Oil Injection)
    SCREW, (M5 x 12)
    (Non Oil Injection)
  • 27
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 28
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 29
    11-816872 WING NUT
    WING NUT
  • 30
    1034-9003A2 COVER ASSEMBLY
    COVER ASSEMBLY
  • 31
    27-430057 GASKET
    GASKET
  • 32
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 33
    823462 LIFTING EYE
    (Non Oil Injection)
    LIFTING EYE
    (Non Oil Injection)
  • 34
    12-475331 THERMOSTAT WASHER
    (Non Oil Injection)
    THERMOSTAT WASHER
    (Non Oil Injection)
  • 35
    14586 THERMOSTAT
    (Oil Injection)
    THERMOSTAT
    (Oil Injection)
  • 36
    27-62386001 GASKET
    GASKET
  • 37
    27-430068 GASKET
    GASKET
  • 38
    8M0047619 COVER
    COVER
  • 39
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 40
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 41
    12-94182 WASHER
    WASHER
  • 42
    648771 DIAPHRAGM
    DIAPHRAGM
  • 43
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 44
    44290T RETAINER
    RETAINER
  • 45
    787992 SENDER, Temperature
    SENDER, Temperature
  • 46
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 47
    54-814634 CLAMP
    CLAMP
  • 48
    99162001 BOOT
    BOOT
  • 49
    821889A51 REV LIMITER
    (Electric-Non Oil Injection)
    REV LIMITER
    (Electric-Non Oil Injection)
  • 49
    821889A49 REV LIMITER
    (Manual)
    REV LIMITER
    (Manual)
  • 49
    821889A50 REV LIMITER
    (Jet)
    REV LIMITER
    (Jet)
  • 50
    10-82130030 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 51
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 52
    84-855212A1 HARNESS ASSEMBLY, Adaptor
    (Oil Injection)
    HARNESS ASSEMBLY, Adaptor
    (Oil Injection)
  • 53
    13541 PLUG, Male
    (Oil Injection)
    PLUG, Male
    (Oil Injection)
  • 54
    22-857175 COUPLING INSERT
    (Coastal/Saltwater)
    COUPLING INSERT
    (Coastal/Saltwater)
  • 55
    22-857176 COUPLING BODY
    (Coastal/Saltwater)
    COUPLING BODY
    (Coastal/Saltwater)
  • 56
    19-858240 CAP
    (Coastal/Saltwater)
    CAP
    (Coastal/Saltwater)
  • 57
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
    (Coastal/Saltwater)
    TUBING, (.312) (70.00 Inches Bulk)
    (Coastal/Saltwater)
  • 58
    54-816311T TIE STRAP, (8.00 Inches)
    (Coastal/Saltwater)
    TIE STRAP, (8.00 Inches)
    (Coastal/Saltwater)
  • 59
    22-857219 FITTING
    (Coastal/Saltwater)
    FITTING
    (Coastal/Saltwater)
  • 60
    22-286241 FITTING, T
    (Coastal/Saltwater)
    FITTING, T
    (Coastal/Saltwater)
  • 61
    54-850181 TIE STRAP, (11.750 Inches)
    (Coastal/Saltwater)
    TIE STRAP, (11.750 Inches)
    (Coastal/Saltwater)
  • 62
    NSS NOT SOLD SEPARATE, Decal-Serialization
    NOT SOLD SEPARATE, Decal-Serialization
  • 63
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • 64
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • -
    27-43004A99 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    898208A02 POWERHEAD ASSEMBLY
    (Non Oil Injection)
    POWERHEAD ASSEMBLY
    (Non Oil Injection)
  • -
    809837T97 POWERHEAD ASSEMBLY
    (Oil Injection)
    POWERHEAD ASSEMBLY
    (Oil Injection)
