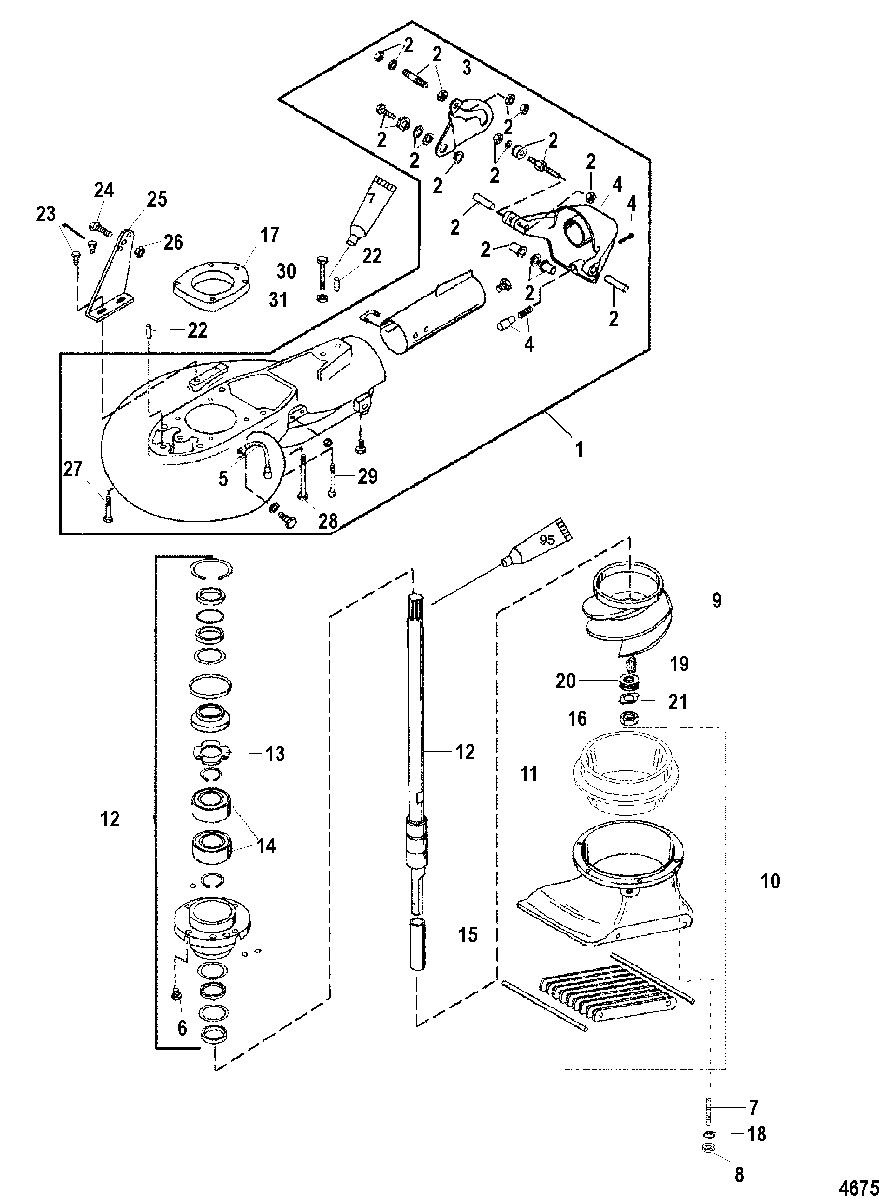

Jet Pump Assembly для Mercury - 75 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-856143A1 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1855767T90 HOUSING, PumpHOUSING, Pump
-
2878377 SHIFT LINKAGE KITSHIFT LINKAGE KIT
-
3878382 CAMCAM
-
4878380 GATE, Reverse - With BumperGATE, Reverse - With Bumper
-
532-827490 HOSE, LubeHOSE, Lube
-
610-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
716-855840 STUD, (.312-18 x 1.81)STUD, (.312-18 x 1.81)
-
811-82670910 NUT, (.312-18)NUT, (.312-18)
-
947-855708115 IMPELLERIMPELLER
-
1085576890 HOUSING, IntakeHOUSING, Intake
-
11855771 LINERLINER
-
1245-85576990 DRIVESHAFTDRIVESHAFT
-
1312-8796522 THRUST WASHERTHRUST WASHER
-
1430-8796531 BEARING, BallBEARING, Ball
-
1523-8271891 SLEEVESLEEVE
-
1611-8271901 NUTNUT
-
17808747 ADAPTOR, PumpADAPTOR, Pump
-
1812-36001 WASHERWASHER
-
1928-801405875 KEYKEY
-
2015-801404875 SHIM, ImpellerSHIM, Impeller
-
2114-801403875 TAB WASHERTAB WASHER
-
2217-801407 PIN, DowelPIN, Dowel
-
2310-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2410-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
25801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2611-82670910 NUT, (.312-18)NUT, (.312-18)
-
2710-4010860 SCREW, (M10 x 60) Hex Flange - Stainless SteelSCREW, (M10 x 60) Hex Flange - Stainless Steel
-
2810-4010890 SCREW, (M10 x 90) Hex Flange - Stainless SteelSCREW, (M10 x 90) Hex Flange - Stainless Steel
-
2910-4010870 SCREW, (M10 x 70) Hex Flange - Stainless SteelSCREW, (M10 x 70) Hex Flange - Stainless Steel
-
3010-843575 SCREW, (.375-16 x 4.00) Stainless SteelSCREW, (.375-16 x 4.00) Stainless Steel
-
3112-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
