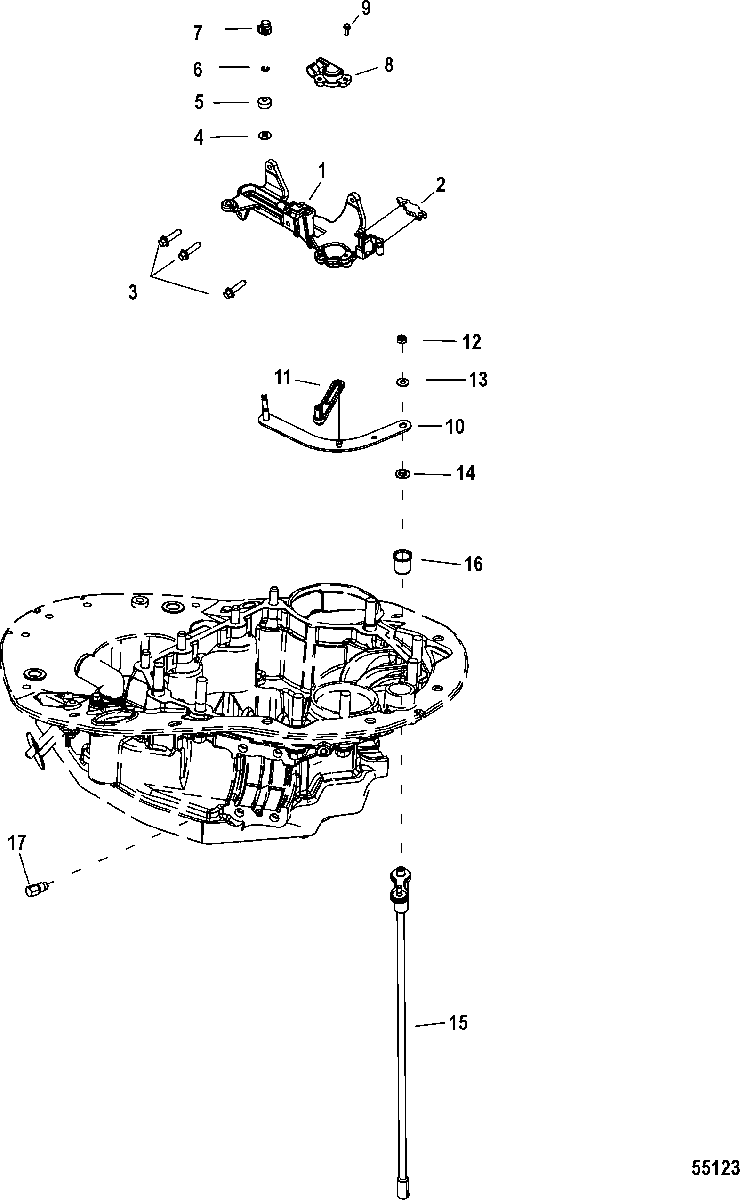

Shift Linkage для Mercury - 65 JET (4-STROKE) 2B095049 & Up

  • №
    Артикул
    Название
  • 1
    8M0058458 BRACKET ASSEMBLY - SHIFT LINK
    BRACKET ASSEMBLY - SHIFT LINK
  • 2
    899044 LATCH
    LATCH
  • 3
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 4
    12-8M0050560 WASHER
    WASHER
  • 5
    8M0031453 ROLLER
    ROLLER
  • 6
    53-27290 RING, Retaining
    RING, Retaining
  • 7
    8M0076452 RETAINER ASSEMBLY
    RETAINER ASSEMBLY
  • 8
    8M0125617 SENSOR, Position
    SENSOR, Position
  • 9
    10-4001186 SCREW, (M4 X 13) HEX WASH HD SS
    SCREW, (M4 X 13) HEX WASH HD SS
  • 10
    8M0075152 LINK - SHIFT
    LINK - SHIFT
  • 11
    8M0058943 LEVER - SENSOR
    LEVER - SENSOR
  • 12
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 13
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 14
    23-8M0035249 BUSHING, (6.452 MM ID) Flanged
    BUSHING, (6.452 MM ID) Flanged
  • 15
    8M0060213 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 16
    23-8M0063632 BUSHING, Flanged, Bronze
    BUSHING, Flanged, Bronze
  • 17
    888823001 SHIFT DETENT ASSEMBLY
    SHIFT DETENT ASSEMBLY
