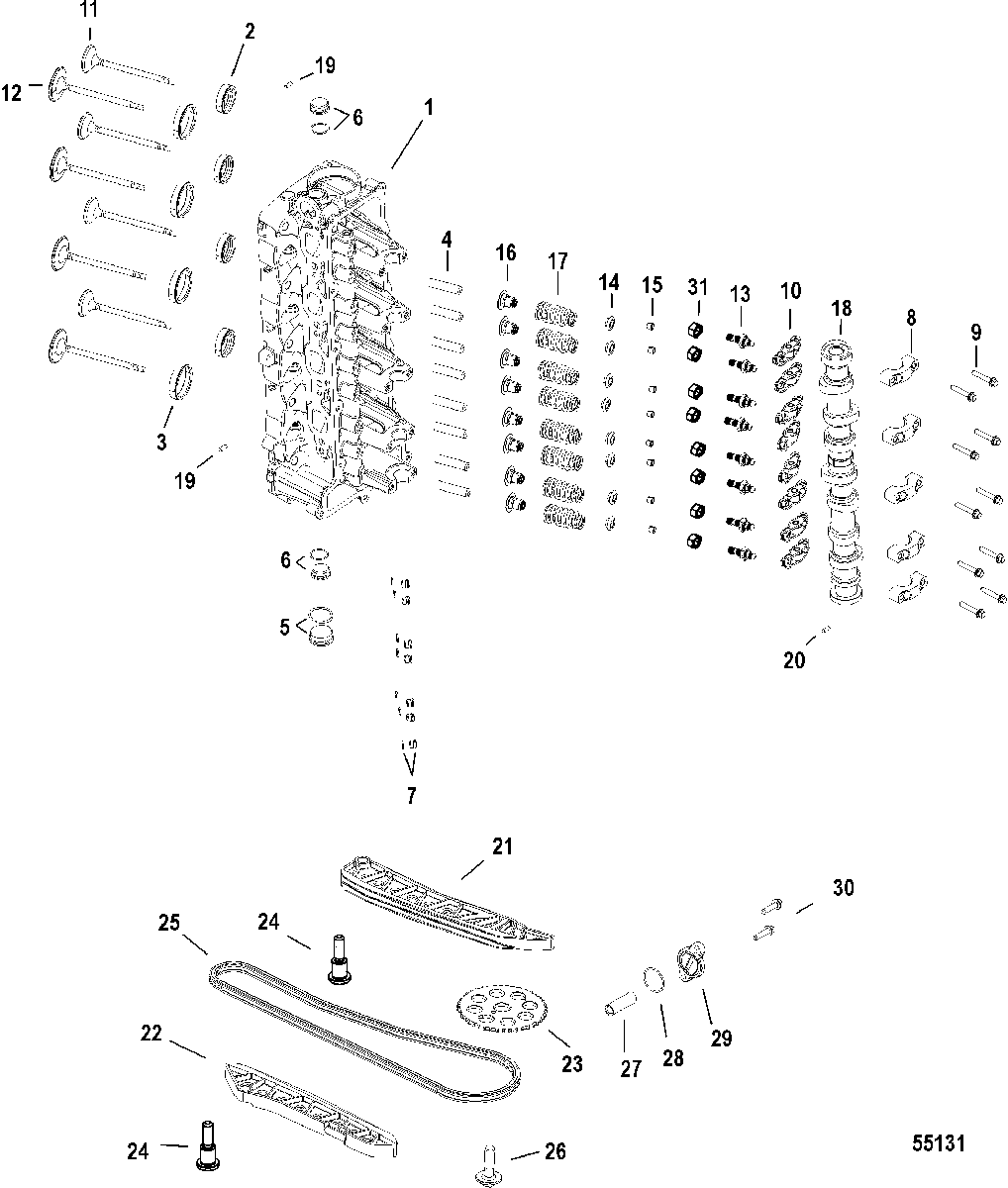

Cylinder Head and Camshaft для Mercury - 65 JET (4-STROKE) 2B095049 & Up

  • №
    Артикул
    Название
  • -
    900-8M0098627 CYLINDER HEAD ASSEMBLY
    65 Jet, 75, 80, 90, 100 Hp
    CYLINDER HEAD ASSEMBLY
    65 Jet, 75, 80, 90, 100 Hp
  • -
    900-8M0098627 CYLINDER HEAD ASSEMBLY, 75,90 SeaPro
    CYLINDER HEAD ASSEMBLY, 75,90 SeaPro
  • -
    900-8M0121260 CYLINDER HEAD ASSEMBLY
    115 and 80 Jet
    CYLINDER HEAD ASSEMBLY
    115 and 80 Jet
  • -
    900-8M0121260 CYLINDER HEAD ASSEMBLY, 115 SeaPro
    CYLINDER HEAD ASSEMBLY, 115 SeaPro
  • 1
    900-8M0091291 CYLINDER HEAD ASSEMBLY, BARE
    CYLINDER HEAD ASSEMBLY, BARE
  • 2
    8M0056611 SEAT - EXHAUST VALVE
    SEAT - EXHAUST VALVE
  • 3
    8M0056610 SEAT - INTAKE VALVE
    SEAT - INTAKE VALVE
  • 4
    8M0054533 GUIDE - VALVE
    GUIDE - VALVE
  • 5
    19-8M0087454 PLUG, (30 MM)
    PLUG, (30 MM)
  • 6
    19-8M0087453 PLUG, (24 MM)
    PLUG, (24 MM)
  • 7
    19-8M0087446 PLUG, (10 MM)
    PLUG, (10 MM)
  • 8
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 9
    10-892454035 BOLT, (M6 x 36 MM)
    BOLT, (M6 x 36 MM)
  • 10
    8M6106000 ROLLER FINGER FOLLOWER
    ROLLER FINGER FOLLOWER
  • 11
    8M0098633 VALVE - EXHAUST
    VALVE - EXHAUST
  • 11
    8M0098633 VALVE, Exhaust, SeaPro
    VALVE, Exhaust, SeaPro
  • 12
    8M0098632 VALVE - INTAKE
    VALVE - INTAKE
  • 12
    8M0098632 VALVE, Intake, SeaPro
    VALVE, Intake, SeaPro
  • 13
    16-8M0073719 STUD, BALL END , (M9 X 1)
    STUD, BALL END , (M9 X 1)
  • 14
    8M0054536 RETAINER - VALVE
    RETAINER - VALVE
  • 15
    28-8M0054537 KEY - VALVE
    KEY - VALVE
  • 16
    26-8M6105000 SEAL - VALVE STEM ASSEMBLY
    SEAL - VALVE STEM ASSEMBLY
  • 17
    24-8M6102000 SPRING - VALVE
    SPRING - VALVE
  • 18
    400-8M0098630 CAMSHAFT ASSEMBLY
    65 Jet, 75, 80, 90, 100 Hp
    CAMSHAFT ASSEMBLY
    65 Jet, 75, 80, 90, 100 Hp
  • 18
    400-8M0098630 CAMSHAFT ASSEMBLY, 75,90 SeaPro
    CAMSHAFT ASSEMBLY, 75,90 SeaPro
  • 18
    400-8M0121261 CAMSHAFT ASSEMBLY
    115 and 80 Jet
    CAMSHAFT ASSEMBLY
    115 and 80 Jet
  • 18
    400-8M0121261 CAMSHAFT ASSEMBLY, 115 SeaPro
    CAMSHAFT ASSEMBLY, 115 SeaPro
  • 19
    17-8M0084726 PIN - DOWEL
    PIN - DOWEL
  • 20
    17-8M0058695 PIN - DOWEL
    PIN - DOWEL
  • 21
    8M0090800 CHAIN BLADE
    CHAIN BLADE
  • 22
    8M0090799 CHAIN GUIDE
    CHAIN GUIDE
  • 23
    43-880550 SPROCKET
    SPROCKET
  • 24
    10-8M0086569 SCREW - SHOULDER, (M8 X 1.25)
    SCREW - SHOULDER, (M8 X 1.25)
  • 25
    8M0128085 CHAIN - CAM DRIVE
    CHAIN - CAM DRIVE
  • 26
    10-8M0021532 SCREW, (M12 x 40 MM)
    SCREW, (M12 x 40 MM)
  • 27
    8M0057657 TENSIONER ASSY, Timing Chain
    TENSIONER ASSY, Timing Chain
  • 28
    25-898836 O-RING, Brown
    O-RING, Brown
  • 29
    1100-8M0064752 END CAP - CAM TENSIONER
    END CAP - CAM TENSIONER
  • 30
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 31
    11-8M0072563 NUT, HEX
    NUT, HEX
