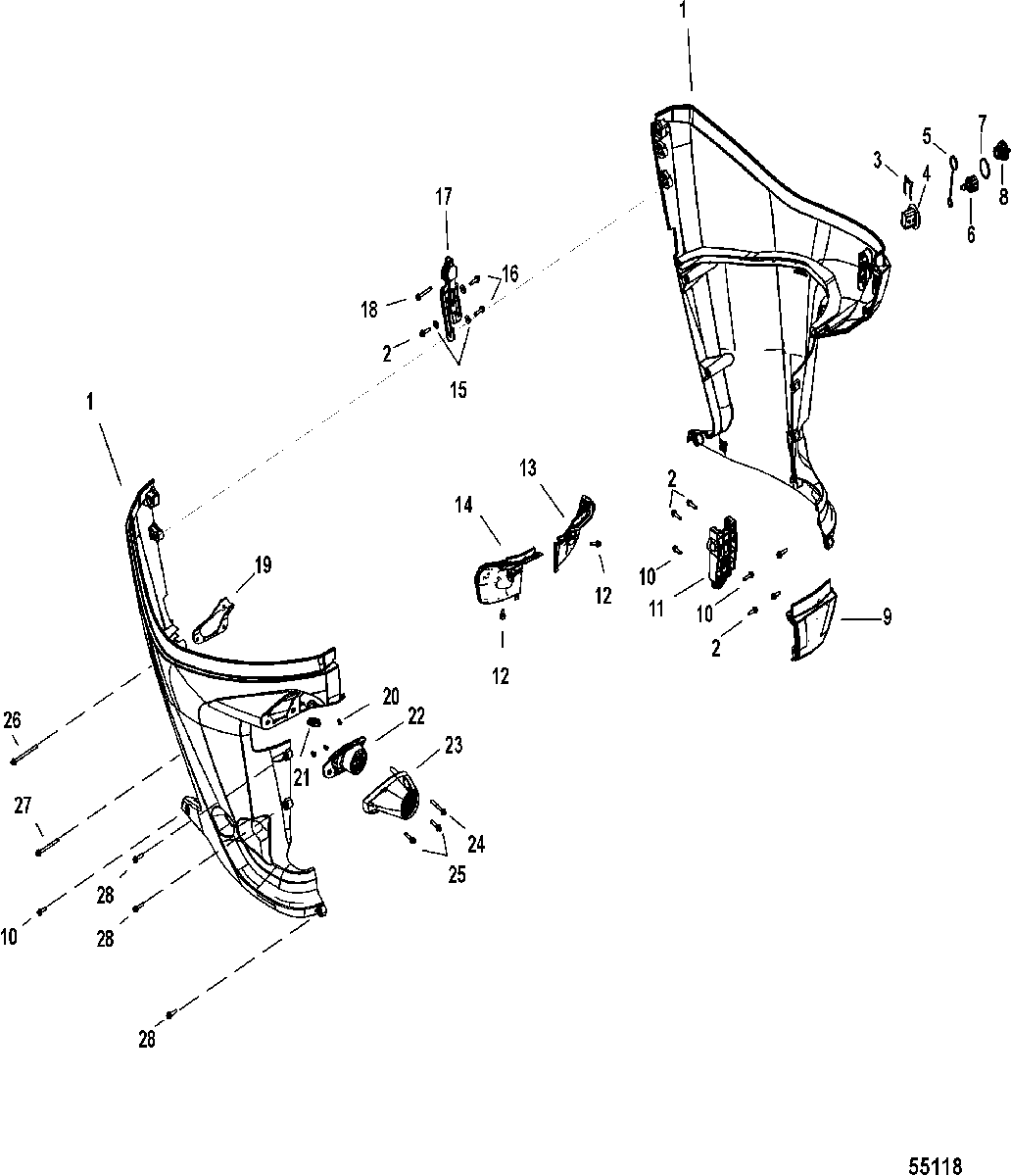

Lower Cowl для Mercury - 65 JET (4-STROKE) 2B095049 & Up

№

Артикул

Название
1

100-8M0135963 CHAP ASSEMBLY, PORT AND STBD

CHAP ASSEMBLY, PORT AND STBD
2

10-8M0022324 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)
3

8M0032848 RETAINER

RETAINER
4

87-8M0037225 TRIM SWITCH, Round Bezel

TRIM SWITCH, Round Bezel
5

889823001 TETHER

TETHER
6

22-885361A01 FITTING ASSEMBLY, Flush

FITTING ASSEMBLY, Flush
7

8M0047301 SEAL, Flush Plug Pocket

SEAL, Flush Plug Pocket
8

22-888958001 PLUG

PLUG
9

100-8M0088281 LOWER COWL ASSEMBLY, FRONT

LOWER COWL ASSEMBLY, FRONT
10

10-8M0073002 SCREW - M6 X 20, HEX FLG

SCREW - M6 X 20, HEX FLG
11

8M0055211 RETAINER - TOP COWL LATCH

RETAINER - TOP COWL LATCH
12

10-892073002 SHOULDER SCREW, (M6)

SHOULDER SCREW, (M6)
13

8M0055216 COVER, UPPER MOUNT - STBD

COVER, UPPER MOUNT - STBD
14

8M0055214 COVER, UPPER MOUNT - PORT

COVER, UPPER MOUNT - PORT
15

12-4002316 WASHER

WASHER
16

10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel

SCREW, (M6 x 25 MM) Stainless Steel
17

8M0055154 STRIKER ASSEMBLY

STRIKER ASSEMBLY
18

10-8M0103810 SCREW, (M6 x 45 MM) Stainless Steel

SCREW, (M6 x 45 MM) Stainless Steel
19

8M0055202 PLATE, INGRESS MOUNTING

PLATE, INGRESS MOUNTING
20

10-8M0047718 SCREW, (M5 X 8MM)

SCREW, (M5 X 8MM)
21

25-8M0073102 GROMMET, TRIM SENSOR WIRES

GROMMET, TRIM SENSOR WIRES
22

8M0055208 GROMMET, INGRESS

GROMMET, INGRESS
23

8M0055209 ADAPTOR, RIG HOSE

ADAPTOR, RIG HOSE
24

10-8M0075736 SCREW, (M6 X 50) HEX FLG

SCREW, (M6 X 50) HEX FLG
25

10-8M0075735 SCREW , (M6 X 30) HEX FLG

SCREW , (M6 X 30) HEX FLG
26

10-8M0071078 SCREW, (M6 X 85) HEX FLG

SCREW, (M6 X 85) HEX FLG
27

10-8M0030817 SCREW, (M6 X 70) HEX FLG

SCREW, (M6 X 70) HEX FLG
28

10-8M0022324 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)
