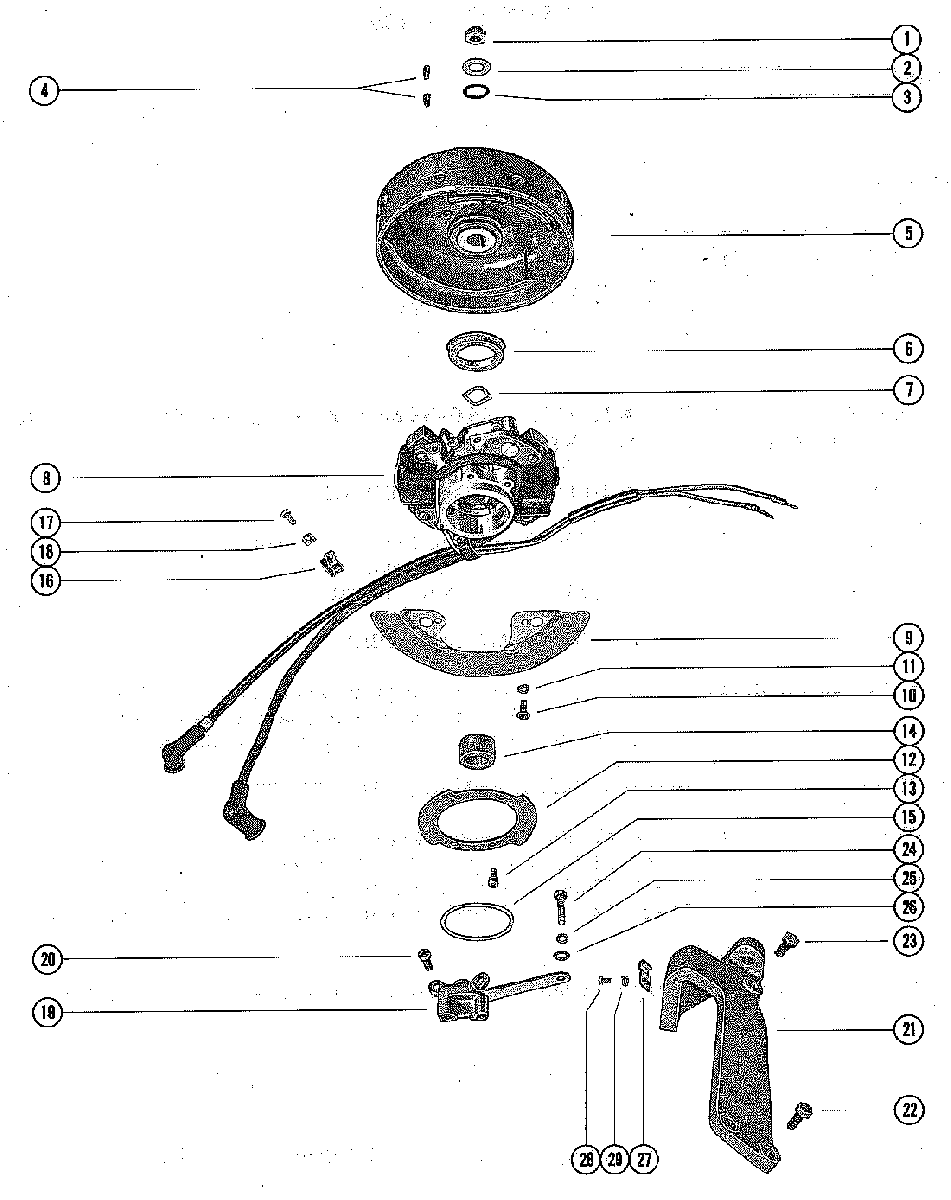

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 60 2385673 THRU 2387383

  • №
    Артикул
    Название
  • 1
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-36245 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    25-62701 "O" RING, FLYWHEEL HUB
    "O" RING, FLYWHEEL HUB
  • 4
    28-20094 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    219-2246A4 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    23-34367 COLLAR, FLYWHEEL DUST SHIELD
    COLLAR, FLYWHEEL DUST SHIELD
  • 7
    13-22027 WASHER, WAVE-MAGNETO CAM TENSION
    WASHER, WAVE-MAGNETO CAM TENSION
  • 8
    398-2574A4 STATOR PLATE ASSEMBLY, COMPLETE(SEE NOTE BELOW)
    STATOR PLATE ASSEMBLY, COMPLETE(SEE NOTE BELOW)
  • 9
    39326A1 SHIELD ASSEMBLY, STATOR PLATE
    SHIELD ASSEMBLY, STATOR PLATE
  • 10
    10-45742 SCREW, SHIELD TO STATOR PLATE
    SCREW, SHIELD TO STATOR PLATE
  • 11
    13-26996 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 12
    33904 RING, HOLD DOWN-STATOR PLATE
    RING, HOLD DOWN-STATOR PLATE
  • 13
    10-35400 SCREW, HOLD DOWN RING TO STATOR PLATE
    SCREW, HOLD DOWN RING TO STATOR PLATE
  • 14
    398-2230 CAM, BREAKER
    CAM, BREAKER
  • 15
    15-33910015 SHIM, STATOR PLATE TO UPPER END CAP (.015)
    SHIM, STATOR PLATE TO UPPER END CAP (.015)
  • 16
    54-24836 CLIP, STATOR LEAD
    CLIP, STATOR LEAD
  • 17
    10-8M0113176 SCREW, STATOR LEAD CLIP TO PORT COVER
    SCREW, STATOR LEAD CLIP TO PORT COVER
  • 18
    8M0084613 "D" WASHER, LEAD CLIP SCREW
    "D" WASHER, LEAD CLIP SCREW
  • 19
    34363A2 THROTTLE CAM BRACKET ASSEMBLY
    THROTTLE CAM BRACKET ASSEMBLY
  • 20
    10-53296 SCREW, CAM BRACKET TO STATOR PLATE
    SCREW, CAM BRACKET TO STATOR PLATE
  • 21
    52400 BRACKET, MOUNTING-THROTTLE CABLE
    BRACKET, MOUNTING-THROTTLE CABLE
  • 22
    10-22956 SCREW, MOUNTING BRACKET TO CRANKCASE (7/8")
    SCREW, MOUNTING BRACKET TO CRANKCASE (7/8")
  • 23
    10-32228 SCREW, MOUNTING BRACKET TO CRANKCASE (5/8")
    SCREW, MOUNTING BRACKET TO CRANKCASE (5/8")
  • 24
    10-52437 SCREW, THROTTLE BRACKET TO MOUNTING BRACKET (5/8")
    SCREW, THROTTLE BRACKET TO MOUNTING BRACKET (5/8")
  • 25
    13-26992 LOCKWASHER, THROTTLE BRACKET SCREW
    LOCKWASHER, THROTTLE BRACKET SCREW
  • 26
    12-29245 WASHER, THROTTLE BRACKET SCREW
    WASHER, THROTTLE BRACKET SCREW
  • 27
    25788 PLATE, CLAMPING-THROTTLE CABLE
    PLATE, CLAMPING-THROTTLE CABLE
  • 28
    10-20055 SCREW, CLAMPING PLATE TO MOUNTING BRACKET (3/8")
    SCREW, CLAMPING PLATE TO MOUNTING BRACKET (3/8")
  • 29
    13-26996 LOCKWASHER, CLAMPING PLATE ATTACHING SCREW
    LOCKWASHER, CLAMPING PLATE ATTACHING SCREW
