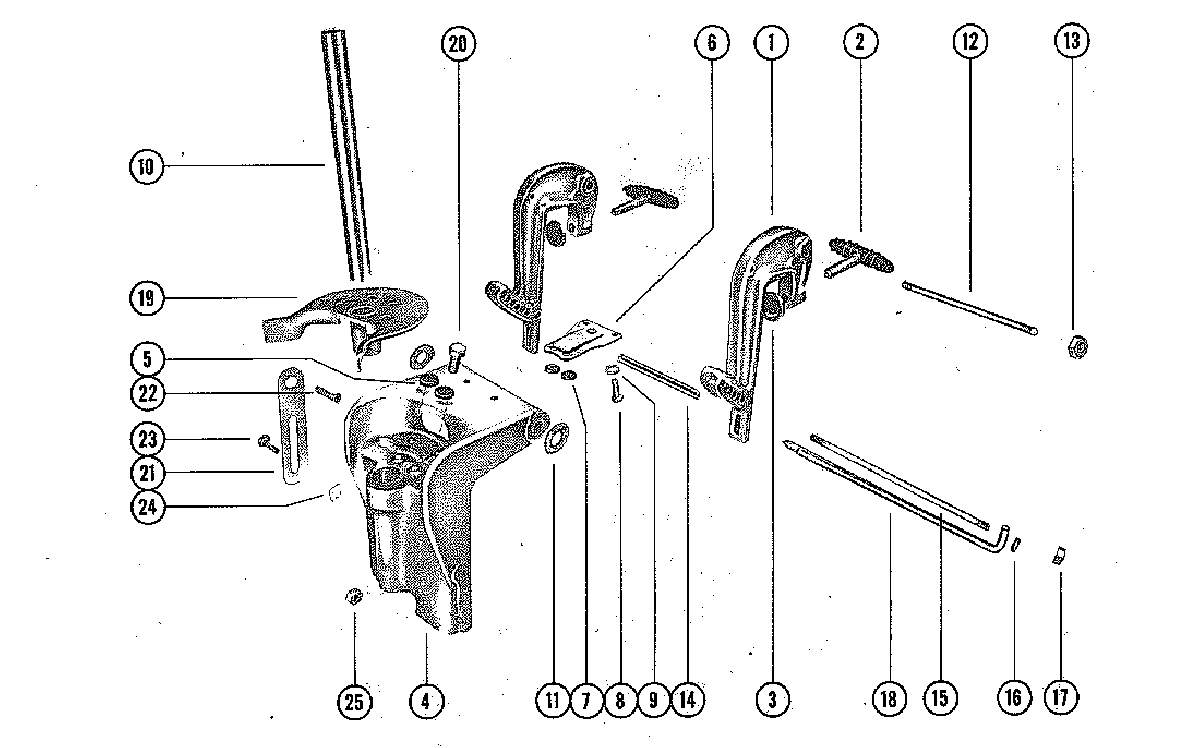

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 60 2385673 THRU 2387383

  • №
    Артикул
    Название
  • 1
    1463-3557A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    1402-134A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 5
    20203 DISC, FRICTION
    DISC, FRICTION
  • 6
    20701A1 CLAMP PLATE ASSEMBLY
    CLAMP PLATE ASSEMBLY
  • 7
    20203 DISC, FRICTINO
    DISC, FRICTINO
  • 8
    10-69028 SCREW, CLAMP PLATE MOUNTING
    SCREW, CLAMP PLATE MOUNTING
  • 9
    13-26992 LOCKWASHER, CLAMP PLATE MOUNTING SCREW
    LOCKWASHER, CLAMP PLATE MOUNTING SCREW
  • 10
    17-20891 SWIVEL PIN, CO-PILOT DISC
    SWIVEL PIN, CO-PILOT DISC
  • 11
    15-20695 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
  • 12
    16-20694 STUD, CLAMP BRACKET TO SWIVEL BRACKET
    STUD, CLAMP BRACKET TO SWIVEL BRACKET
  • 13
    11-20696 NUT, CLAMP BRACKET TO SWIVEL BRACKET STUD
    NUT, CLAMP BRACKET TO SWIVEL BRACKET STUD
  • 14
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 15
    16-59620 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 16
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 17
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 18
    17-56373A2 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 19
    20951 CO-PILOT DISC ASSEMBLY
    CO-PILOT DISC ASSEMBLY
  • 20
    10-47277 SCREW, CO-PILOT ADJUSTING
    SCREW, CO-PILOT ADJUSTING
  • 21
    33512 LEVER, TILT STOP
    LEVER, TILT STOP
  • 22
    10-20217 SCREW, ANCHOR-TILT STOP LEVER
    SCREW, ANCHOR-TILT STOP LEVER
  • 23
    10-27790 SCREW, RETAINING-TILT STOP LEVER
    SCREW, RETAINING-TILT STOP LEVER
  • 24
    13-20846 WASHER, WAVE-RETAINING SCREW
    WASHER, WAVE-RETAINING SCREW
  • 25
    11-20184 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
  • --
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • --
    10-28642 SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
