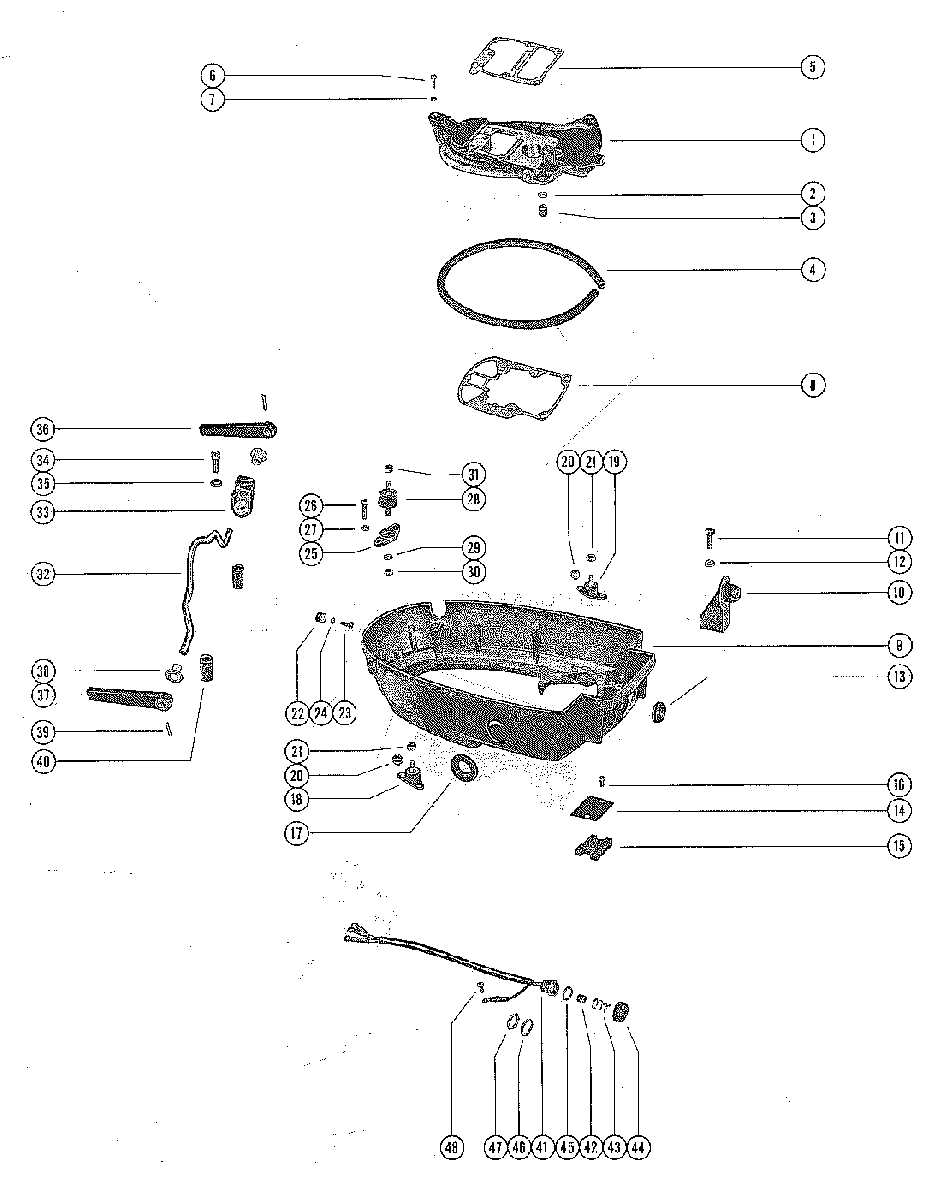

BOTTOM COWL AND ADAPTOR PLATE для Mercury - 60 2385673 THRU 2387383

  • №
    Артикул
    Название
  • 1
    47260A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 1
    52402A1 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 2
    23-13127 WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)
    WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)
  • 3
    26-36556 SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)
    SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)
  • 4
    39044 SEAL, RUBBER - ADAPTOR PLATE
    SEAL, RUBBER - ADAPTOR PLATE
  • 5
    27-89937 GASKET, POWERHEAD PLATE
    SERIAL #2080069-09999999
    GASKET, POWERHEAD PLATE
    SERIAL #2080069-09999999
  • 5
    27-89937 GASKET, POWERHEAD TO ADAPTOR PLATE
    SERIAL 00000000-#2080068
    GASKET, POWERHEAD TO ADAPTOR PLATE
    SERIAL 00000000-#2080068
  • 5
    27-89937 GASKET, POWERHEAD TO ADAPTOR PLATE(USE THUR SERIAL #2080068)
    GASKET, POWERHEAD TO ADAPTOR PLATE(USE THUR SERIAL #2080068)
  • 6
    10-69026 SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
    SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
  • 7
    13-26992 LOCKWASHER, ADAPTOR PLATE SCREW
    LOCKWASHER, ADAPTOR PLATE SCREW
  • 8
    27-52417 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
    GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
  • 9
    2124-2649 COWL, BOTTOM
    COWL, BOTTOM
  • 10
    39085 ANCHOR, LATCH - BOTTOM COWL
    ANCHOR, LATCH - BOTTOM COWL
  • 11
    10-22485 SCREW, LATCH ANCHOR TO BOTTOM COWL (3/4")
    SCREW, LATCH ANCHOR TO BOTTOM COWL (3/4")
  • 12
    13-26992 LOCKWASHER, LATCH ANCHOR SCREW
    LOCKWASHER, LATCH ANCHOR SCREW
  • 13
    25-39054 GROMMET, CHOKE SHAFT - BOTTOM COWL
    GROMMET, CHOKE SHAFT - BOTTOM COWL
  • 14
    39051A1 PLATE ASSEMBLY, COVER - BOTTOM COWL
    PLATE ASSEMBLY, COVER - BOTTOM COWL
  • 15
    39068 PAD, SOUND - COVER PLATE
    PAD, SOUND - COVER PLATE
  • 16
    10-8M0113176 SCRW, COVER PLATE TO BOTTOM COWL (3/8")
    SCRW, COVER PLATE TO BOTTOM COWL (3/8")
  • 17
    39058 SEAL, SHIFT HANDLE - BOTTOM COWL
    SEAL, SHIFT HANDLE - BOTTOM COWL
  • 18
    39145 MOUNT, RUBBER _ BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
    MOUNT, RUBBER _ BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
  • 19
    39144 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)
    MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)
  • 20
    10-29238 SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")
    SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")
  • 21
    11-20184 NUT, ADAAPTOR PLATE TO RUBBER MOUNT
    NUT, ADAAPTOR PLATE TO RUBBER MOUNT
  • 22
    39565 SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)
    SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)
  • 23
    10-32228 SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
    SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
  • 24
    13-26996 LOCKWASHER NYLON SPOOL SCREW
    LOCKWASHER NYLON SPOOL SCREW
  • 25
    39147 ADAPTOR, REAR MOUNT TO BOTTOM COWL
    ADAPTOR, REAR MOUNT TO BOTTOM COWL
  • 26
    10-69026 SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
    SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
  • 27
    13-26992 LOCKWASHER, REAR MOUNT ADAPTOR SCREW
    LOCKWASHER, REAR MOUNT ADAPTOR SCREW
  • 28
    39146 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)
    MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)
  • 29
    13-26992 LOCKWASHER, REAR MOUNT
    LOCKWASHER, REAR MOUNT
  • 30
    11-20088 NUT, REAR MOUNT TO ADAPTOR
    NUT, REAR MOUNT TO ADAPTOR
  • 31
    11-20184 NUT, ADAPTOR PLATE TO REAR RUBBER MOUNT
    NUT, ADAPTOR PLATE TO REAR RUBBER MOUNT
  • 32
    63648 ROD, COWL LATCH - BOTTOM COWL
    ROD, COWL LATCH - BOTTOM COWL
  • 33
    39099 BRACKET, COWL LATCH ROD
    BRACKET, COWL LATCH ROD
  • 34
    10-69026 SCREW, COWL LATCH BRACKET TO BOTTOM COWL (15/16")
    SCREW, COWL LATCH BRACKET TO BOTTOM COWL (15/16")
  • 35
    13-26992 LOCKWSHER, COWL LATCH BRACKET SCREW
    LOCKWSHER, COWL LATCH BRACKET SCREW
  • 36
    39083 HANDLE, COWL LATCH ROD(PORT)
    HANDLE, COWL LATCH ROD(PORT)
  • 37
    39098 HANDLE, COWL LATCH ROD (STARBOARD)
    HANDLE, COWL LATCH ROD (STARBOARD)
  • 38
    23-22981 BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL
    BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL
  • 39
    17-25319 PIN, ROLL - HANDLE TO COWL LATCH ROD
    PIN, ROLL - HANDLE TO COWL LATCH ROD
  • 40
    32-28373 SLEEVE, COWL LATCH ROD(EARLY MODELS ONLY)
    SLEEVE, COWL LATCH ROD(EARLY MODELS ONLY)
  • --
    32372A2 STOP SWITCH ASSEMBLY
    STOP SWITCH ASSEMBLY
  • 41
    32372 HARNESS, STOP SWITCH
    HARNESS, STOP SWITCH
  • 42
    30859 INSULATOR, SLEEVE - INNER SWITCH TERMINALS
    INSULATOR, SLEEVE - INNER SWITCH TERMINALS
  • 43
    24-30858A1 SPRING AND CONTACT ASSEMBLY
    SPRING AND CONTACT ASSEMBLY
  • 44
    38950A1 COVER ASSEMBLY, STOP SWITCH
    COVER ASSEMBLY, STOP SWITCH
  • 45
    12-38949 WASHER, SEALING - STOP SWITCH
    WASHER, SEALING - STOP SWITCH
  • 46
    13-21972 LOCKWASHER, STOP SWITCH CONNECTOR
    LOCKWASHER, STOP SWITCH CONNECTOR
  • 47
    11-21971 NUT, STOP SWITCH TO BOTTOM COWL
    NUT, STOP SWITCH TO BOTTOM COWL
  • 48
    10-8M0113176 SCRW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
    SCRW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
