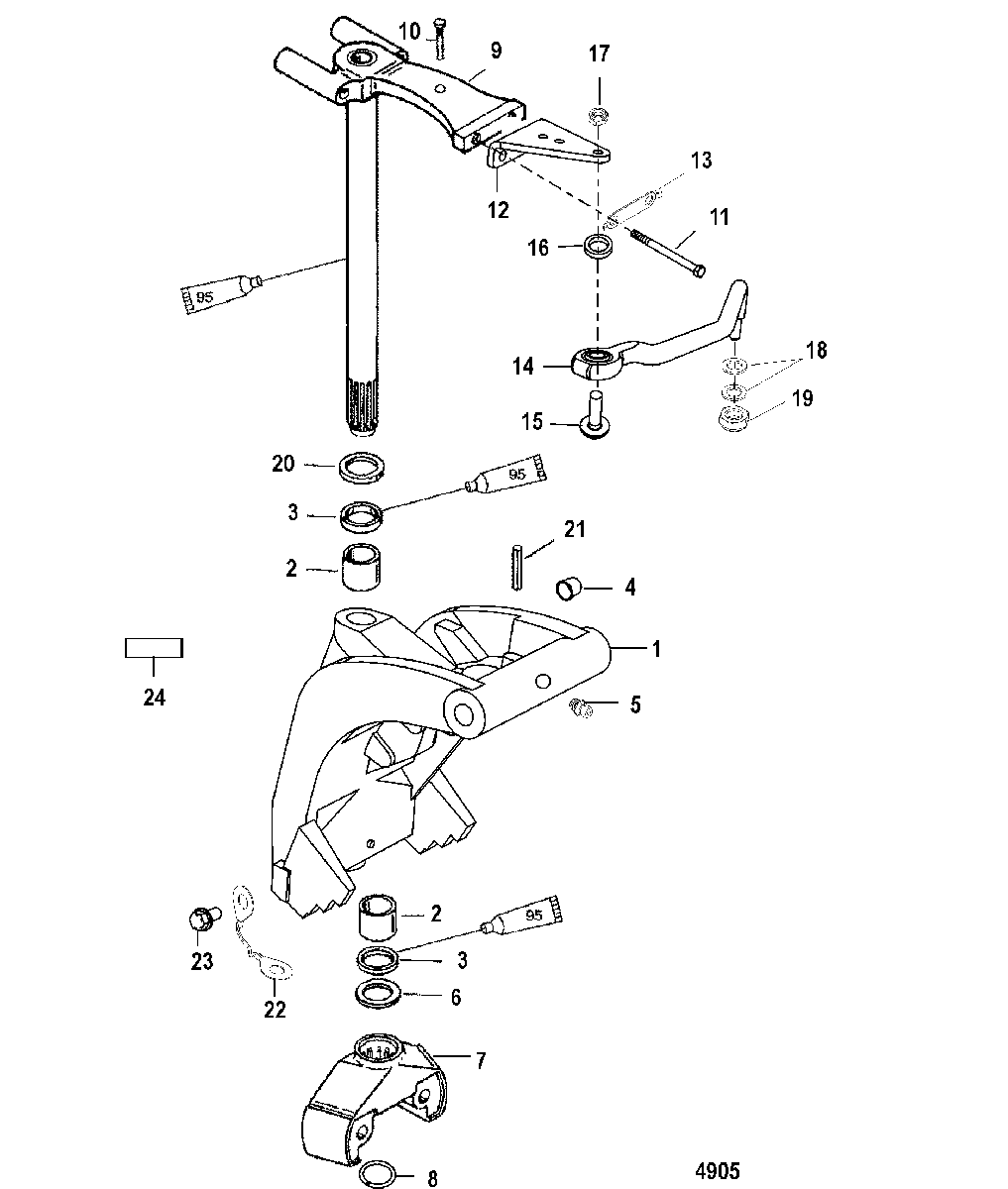

Swivel Bracket для Mercury - 60 (3 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    3400-8M0084208 SWIVEL BRACKET
    (Black-Short)
    SWIVEL BRACKET
    (Black-Short)
  • 1
    3417-822863A1 SWIVEL BRACKET
    (Black-Long)
    SWIVEL BRACKET
    (Black-Long)
  • 2
    23-821124 BEARING
    BEARING
  • 3
    26-32911 SEAL, Oil
    SEAL, Oil
  • 4
    23-19606 BEARING
    BEARING
  • 5
    22-74036 FITTING, Grease
    FITTING, Grease
  • 6
    12-52865 WASHER
    WASHER
  • 7
    19654T1 YOKE, Bottom
    (Black)
    YOKE, Bottom
    (Black)
  • 8
    53-77415 RETAINING RING
    RETAINING RING
  • 9
    17-812897A19 SWIVEL PIN ASSEMBLY
    (Black-Short)
    SWIVEL PIN ASSEMBLY
    (Black-Short)
  • 9
    17-812896A22 SWIVEL PIN ASSEMBLY
    (Black-Long)
    SWIVEL PIN ASSEMBLY
    (Black-Long)
  • 10
    17-8219872 PIN, Co-Pilot
    PIN, Co-Pilot
  • 11
    10-4000377 SCREW, (M10 x 30)
    (Electric)
    SCREW, (M10 x 30)
    (Electric)
  • 12
    893696 BRACKET
    (Electric)
    BRACKET
    (Electric)
  • 13
    14-8M0009820 TAB WASHER
    (Electric)
    TAB WASHER
    (Electric)
  • 14
    19608A14 ATTACHING KIT, Engine Steering
    (Electric)
    ATTACHING KIT, Engine Steering
    (Electric)
  • 15
    10-823919 SCREW, (.375-24 x 1.500)
    (Electric)
    SCREW, (.375-24 x 1.500)
    (Electric)
  • 16
    12-8M0109680 WASHER, (.390 x .546 x .12)
    (Electric)
    WASHER, (.390 x .546 x .12)
    (Electric)
  • 17
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (Electric)
    NUT, (.375-24) Stainless Steel
    (Electric)
  • 18
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    (Electric)
    WASHER, (.390 x .625 x .062) Stainless Steel
    (Electric)
  • 19
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (Electric)
    NUT, (.375-24) Stainless Steel
    (Electric)
  • 20
    12-52865 WASHER
    WASHER
  • 21
    17-823876 PIN, Handle
    PIN, Handle
  • 22
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 23
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 24
    NSS NOT SOLD SEPARATE, Decal-Serialization
    NOT SOLD SEPARATE, Decal-Serialization
