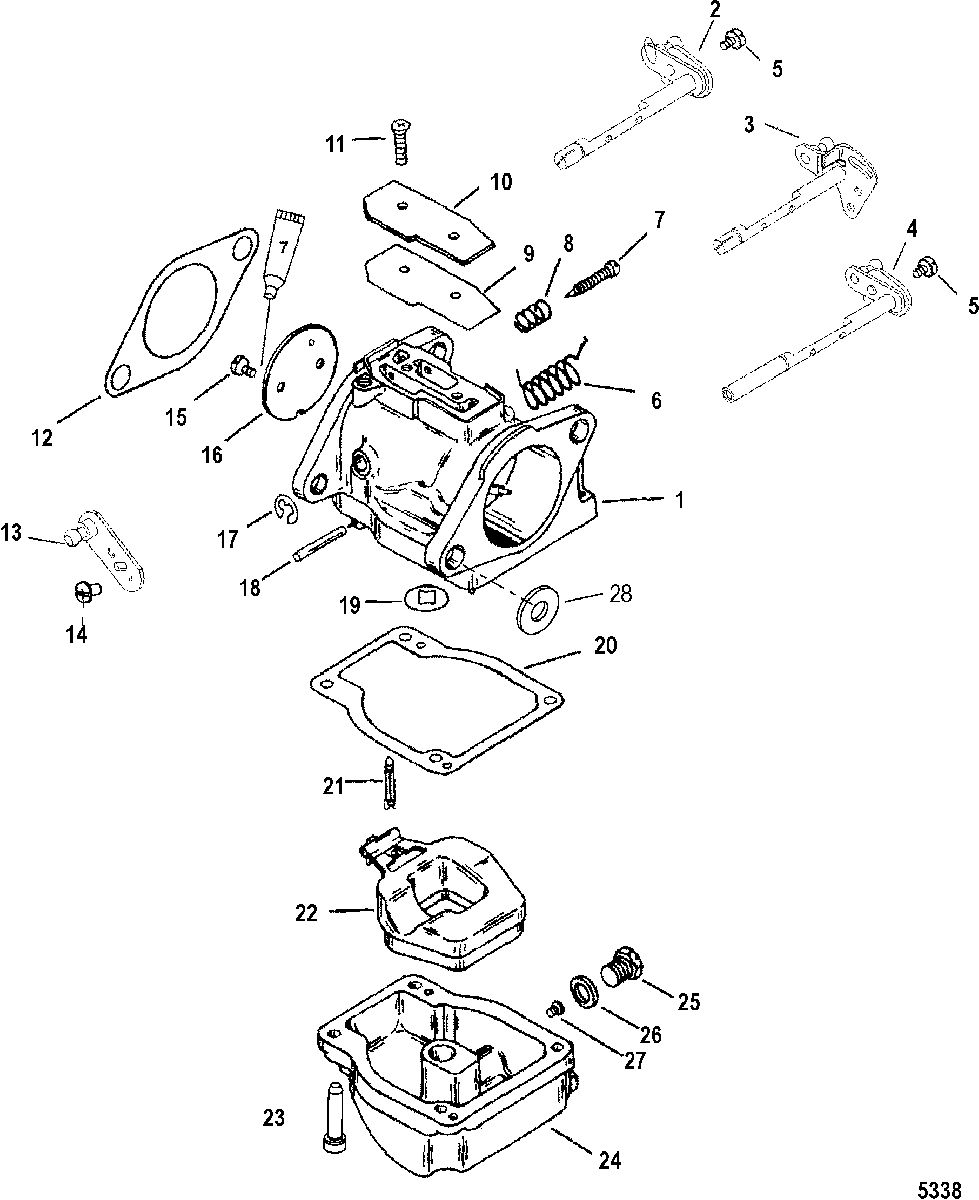

Carburetor для Mercury - 60 (3 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    3301-821854T22 CARBURETOR, (WME 58-1) (Top)(60 Electric)
    CARBURETOR, (WME 58-1) (Top)(60 Electric)
  • 1
    3301-821854T23 CARBURETOR, (WME 58-2) (Center)(60 Electric)
    CARBURETOR, (WME 58-2) (Center)(60 Electric)
  • 1
    3301-821854T24 CARBURETOR, (WME 58-3) (Bottom)(60 Electric)
    CARBURETOR, (WME 58-3) (Bottom)(60 Electric)
  • 1
    3301-821854T19 CARBURETOR, (WME 57-1) (Top)(55/60 Manual)
    CARBURETOR, (WME 57-1) (Top)(55/60 Manual)
  • 1
    3301-821854T20 CARBURETOR, (WME 57-2) (Center)(55/60 Manual)
    CARBURETOR, (WME 57-2) (Center)(55/60 Manual)
  • 1
    3301-821854T21 CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual)
    CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual)
  • 1
    3301-821854T22 CARBURETOR, (WME 95-1) (Top)(60 Electric)
    CARBURETOR, (WME 95-1) (Top)(60 Electric)
  • 1
    3301-821854T23 CARBURETOR, (WME 95-2) (Center)(60 Electric)
    CARBURETOR, (WME 95-2) (Center)(60 Electric)
  • 1
    3301-821854T24 CARBURETOR, (WME 95-3) (Bottom)(60 Electric)
    CARBURETOR, (WME 95-3) (Bottom)(60 Electric)
  • 1
    3301-821854T19 CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly)
    CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly)
  • 1
    3301-821854T20 CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly)
    CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly)
  • 1
    3301-821854T21 CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly)
    CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly)
  • 1
    3301-821854T19 CARBURETOR, (WME 94-1) (Top)(55/60 Manual)
    CARBURETOR, (WME 94-1) (Top)(55/60 Manual)
  • 1
    3301-821854T20 CARBURETOR, (WME 94-2) (Center)(55/60 Manual)
    CARBURETOR, (WME 94-2) (Center)(55/60 Manual)
  • 1
    3301-821854T21 CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual)
    CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual)
  • 2
    1395-823632 SHAFT, Throttle
    (Upper)(WME-58/95)
    SHAFT, Throttle
    (Upper)(WME-58/95)
  • 3
    1395-823633 SHAFT, Throttle
    (Center)(WME-58/95)
    SHAFT, Throttle
    (Center)(WME-58/95)
  • 4
    1395-823636 SHAFT, Throttle
    (Bottom)(WME-58/95)
    SHAFT, Throttle
    (Bottom)(WME-58/95)
  • 2
    1395-823632 SHAFT, Throttle
    (Upper/Bottom)(WME-57/94)
    SHAFT, Throttle
    (Upper/Bottom)(WME-57/94)
  • 3
    1395-823633 SHAFT, Throttle
    (Center)(WME-57/94)
    SHAFT, Throttle
    (Center)(WME-57/94)
  • 5
    1395-823634 SCREW
    (Upper/Bottom)
    SCREW
    (Upper/Bottom)
  • 6
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 7
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 8
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 9
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 10
    1395-811221 COVER PLATE
    COVER PLATE
  • 11
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 12
    27-8144461 GASKET, Flange
    GASKET, Flange
  • 13
    1395-8113522 LEVER, Oil Pump
    (WME 58/95 -Bottom)
    LEVER, Oil Pump
    (WME 58/95 -Bottom)
  • 14
    1395-8086121 SCREW, Lever Retainer
    (WME 58/95 -Bottom)
    SCREW, Lever Retainer
    (WME 58/95 -Bottom)
  • 15
    10-F10155 SCREW, Throttle Valve
    SCREW, Throttle Valve
  • 16
    97246 VALVE, Throttle
    VALVE, Throttle
  • 17
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 18
    F10064 SHAFT
    SHAFT
  • 19
    1395-808738 GASKET
    GASKET
  • 20
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 21
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 22
    1395-9594 FLOAT
    FLOAT
  • 23
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 24
    1395-811695 BOWL, Fuel
    (Upper)(WME-57/94)
    BOWL, Fuel
    (Upper)(WME-57/94)
  • 24
    1395-811693 BOWL, Fuel
    (Center/Bottom)(WME-57/94)
    BOWL, Fuel
    (Center/Bottom)(WME-57/94)
  • 24
    1395-811693 BOWL, Fuel
    (WME-58/95)
    BOWL, Fuel
    (WME-58/95)
  • 25
    1395-811694 PLUG KIT
    PLUG KIT
  • 26
    1395-802731 SEAL (Consists of 4 seals)
    SEAL (Consists of 4 seals)
  • 27
    1395-7831 JET, Main Fuel (.058)
    (.058 - WME-57/94)
    JET, Main Fuel (.058)
    (.058 - WME-57/94)
  • 27
    1395-6487 JET, Main (.060)
    (.060 - WME-58/95)
    JET, Main (.060)
    (.060 - WME-58/95)
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    1395-8236354 REPAIR KIT, Carburetor
    (1 Per Carburetor)
    REPAIR KIT, Carburetor
    (1 Per Carburetor)
  • -
    1395-8112231 GASKET SET, Carburetor
    (1 Per Carburetor)
    GASKET SET, Carburetor
    (1 Per Carburetor)
