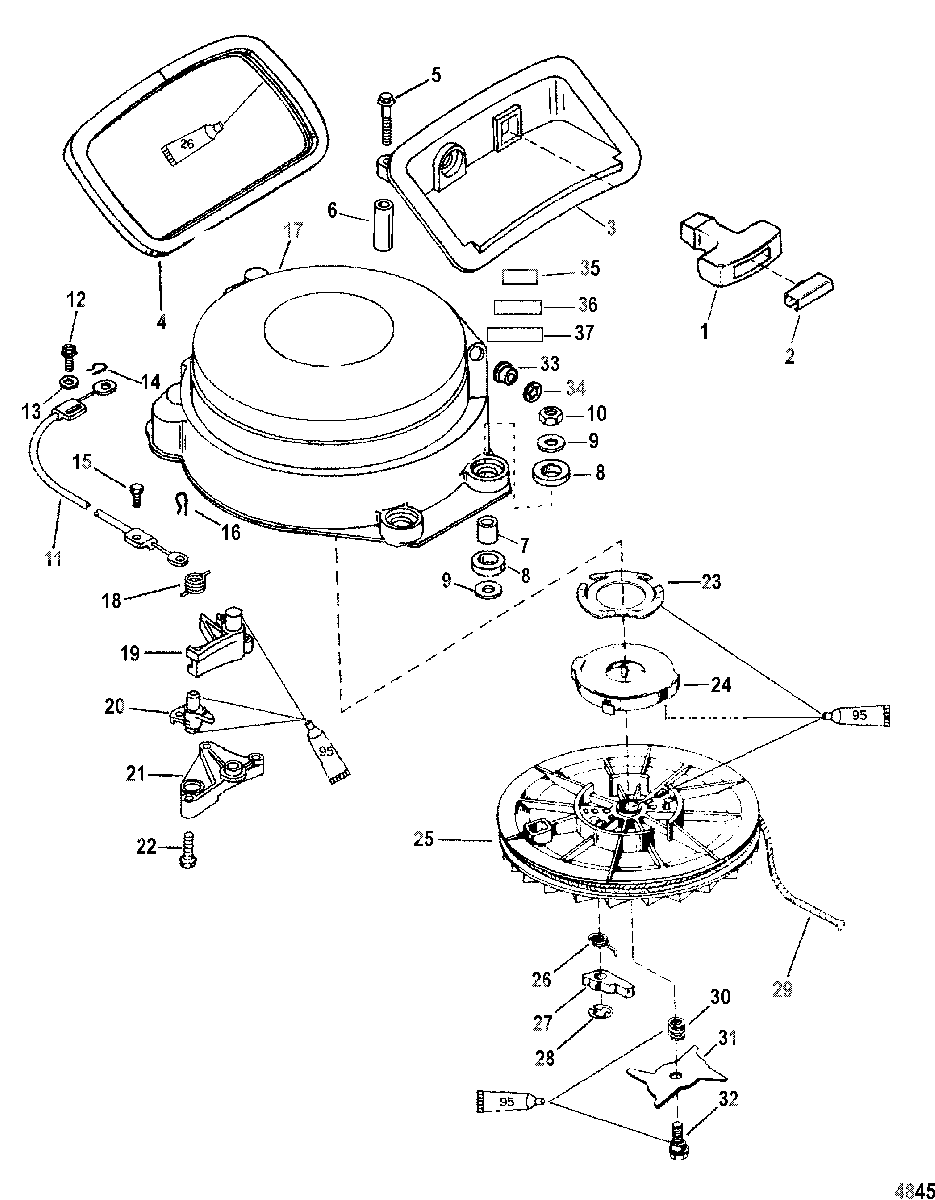

Starter Assembly, Manual для Mercury - 60 (3 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 3
    8167652 REST
    REST
  • 4
    8M0043161 SEAL
    SEAL
  • 5
    10-82170475 SCREW, (M6 x 75)
    SCREW, (M6 x 75)
  • 6
    23-821702 SPACER
    SPACER
  • 7
    23-816086 BUSHING
    BUSHING
  • 8
    25-8157951 GROMMET
    GROMMET
  • 9
    12-858779 WASHER, (.265 x .750 x .048)
    WASHER, (.265 x .750 x .048)
  • 10
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 8
    25-815795 GROMMET
    GROMMET
  • 9
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 10
    11-401366 NUT, (M6)
    NUT, (M6)
  • 11
    8567541 CABLE, Interlock
    CABLE, Interlock
  • 12
    10-8214281 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 13
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 14
    18-26811 COTTER PIN
    COTTER PIN
  • 15
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 16
    18-26811 COTTER PIN
    COTTER PIN
  • -
    816728T14 STARTER ASSEMBLY, Recoil
    STARTER ASSEMBLY, Recoil
  • 17
    816728T05 HOUSING
    HOUSING
  • 18
    24-826791 SPRING
    SPRING
  • 19
    8166903 LEVER
    LEVER
  • 20
    816712T01 CAM
    CAM
  • 21
    816711 RETAINER
    RETAINER
  • 22
    10-8182491 SCREW, (#10-16 x 1.00)
    SCREW, (#10-16 x 1.00)
  • 23
    13-826229 LOCKWASHER, Spring
    LOCKWASHER, Spring
  • 24
    24-86857T01 SPRING
    SPRING
  • 25
    50-825269T01 SHEAVE, Starter
    SHEAVE, Starter
  • 26
    24-86851T02 SPRING
    SPRING
  • 27
    868501 CAM
    CAM
  • 28
    53-86849T01 RING, Retaining
    RING, Retaining
  • 29
    50-12066Q10 ROPE
    ROPE
  • 30
    24-868523 SPRING
    SPRING
  • 31
    86853T01 CAM
    CAM
  • 32
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 33
    42690 BUSHING
    BUSHING
  • 34
    53-818853 RING, Retaining
    RING, Retaining
  • 35
    NSS NOT SOLD SEPARATE, Decal-Timing
    NOT SOLD SEPARATE, Decal-Timing
  • 36
    NSS NOT SOLD SEPARATE, Decal-Full Throttle Timing
    NOT SOLD SEPARATE, Decal-Full Throttle Timing
  • 37
    37-856985A7 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 37
    37-804665A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 37
    37-804665A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 37
    37-804665A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 37
    37-804665A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 37
    37-804665A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
