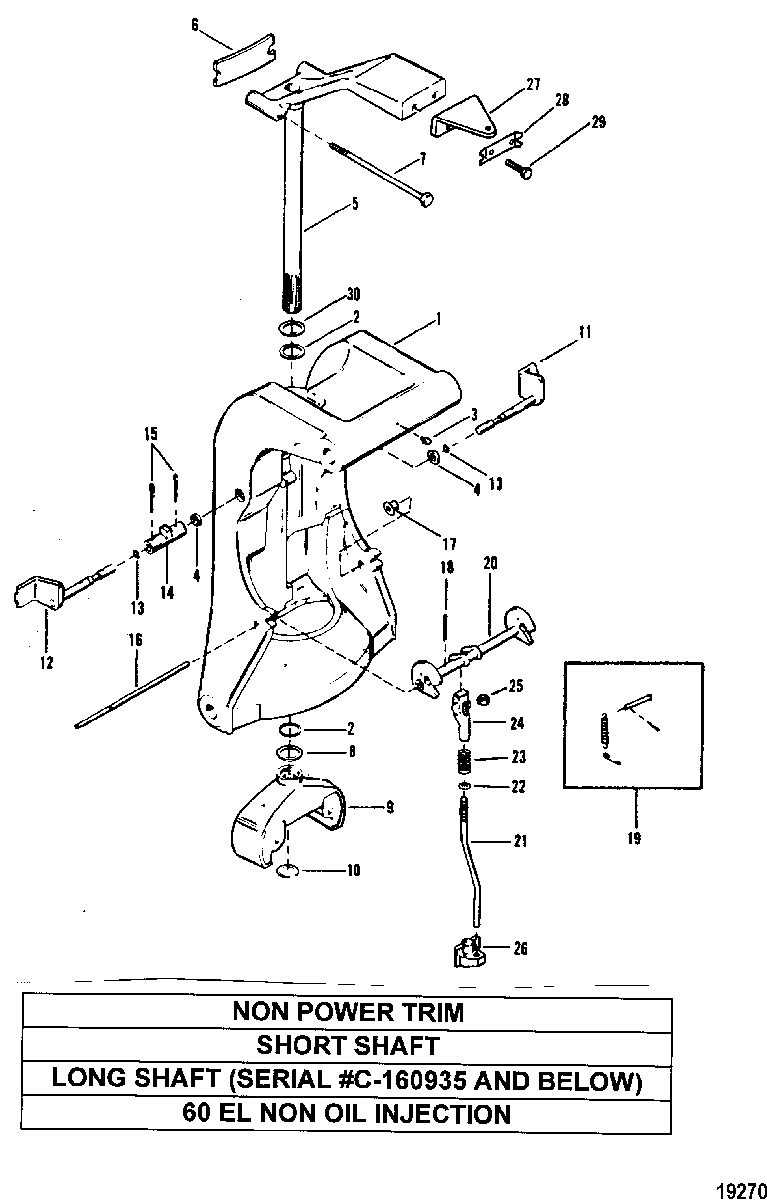

Swivel Bracket(Short)(Long-0C160935 & Below)(60EL NOI)(NPT) для Mercury - 60 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
11489-8597A4 SWIVEL BRACKET
(SHORT SHAFT)SWIVEL BRACKET
(SHORT SHAFT) -
11490-8599A6 SWIVEL BRACKET
(LONG SHAFT)SWIVEL BRACKET
(LONG SHAFT) -
226-32911 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
322-74036 FITTING, GreaseFITTING, Grease
-
426-22734 SEAL, Oil, SWIVEL BRACKETSEAL, Oil, SWIVEL BRACKET
-
588798A23 SWIVEL PIN ASSEMBLY
(SHORT SHAFT)SWIVEL PIN ASSEMBLY
(SHORT SHAFT) -
588798A24 SWIVEL PIN ASSEMBLY
(LONG SHAFT)SWIVEL PIN ASSEMBLY
(LONG SHAFT) -
630711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
710-66897 BOLT, (.437-20 x 5.250), UPPER MOUNT TO SWIVEL PINBOLT, (.437-20 x 5.250), UPPER MOUNT TO SWIVEL PIN
-
812-25176 WASHER, SWIVEL PIN TO BOTTOM YOKEWASHER, SWIVEL PIN TO BOTTOM YOKE
-
977416T1 YOKE, Bottom
(BLACK)YOKE, Bottom
(BLACK) -
977416T6 YOKE, Bottom
(GRAY)YOKE, Bottom
(GRAY) -
1053-77415 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
11/1289105 TILT LOCK, STARBOARD/PORTTILT LOCK, STARBOARD/PORT
-
1325-627021 O-RING, (.301 x .070), TILT LOCKO-RING, (.301 x .070), TILT LOCK
-
1479659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1518-47959 COTTER PIN, TILT LOCK TUBECOTTER PIN, TILT LOCK TUBE
-
1656349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
1723-69132 BUSHING, REVERSE PIVOT SHAFTBUSHING, REVERSE PIVOT SHAFT
-
1818-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
1924-78203A2 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
2014664A3 REVERESE LOCKREVERESE LOCK
-
2143415 PUSH ROD, REVERSE LOCK
(SHORT SHAFT)PUSH ROD, REVERSE LOCK
(SHORT SHAFT) -
2143416 PUSH ROD, REVERSE LOCK
(LONG SHAFT)PUSH ROD, REVERSE LOCK
(LONG SHAFT) -
2212-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH RODWASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
-
2324-44297 SPRING, PUSH RODSPRING, PUSH ROD
-
2489813 ROD END, PUSH RODROD END, PUSH ROD
-
2511-82670911 NUT, (.312-24) Stainless Steel, PUSH RODNUT, (.312-24) Stainless Steel, PUSH ROD
-
26933361 GUIDE, PUSH RODGUIDE, PUSH ROD
-
27765351 BRACKET, RIDE GUIDEBRACKET, RIDE GUIDE
-
2876533 STRAP, BRACKET SCREWSTRAP, BRACKET SCREW
-
2910-34352 SCREW, (.375-24 x .875), BRACKETSCREW, (.375-24 x .875), BRACKET
-
3012-47606 WASHER, THRUSTWASHER, THRUST
-
-27-43779A87 GASKET SETGASKET SET
