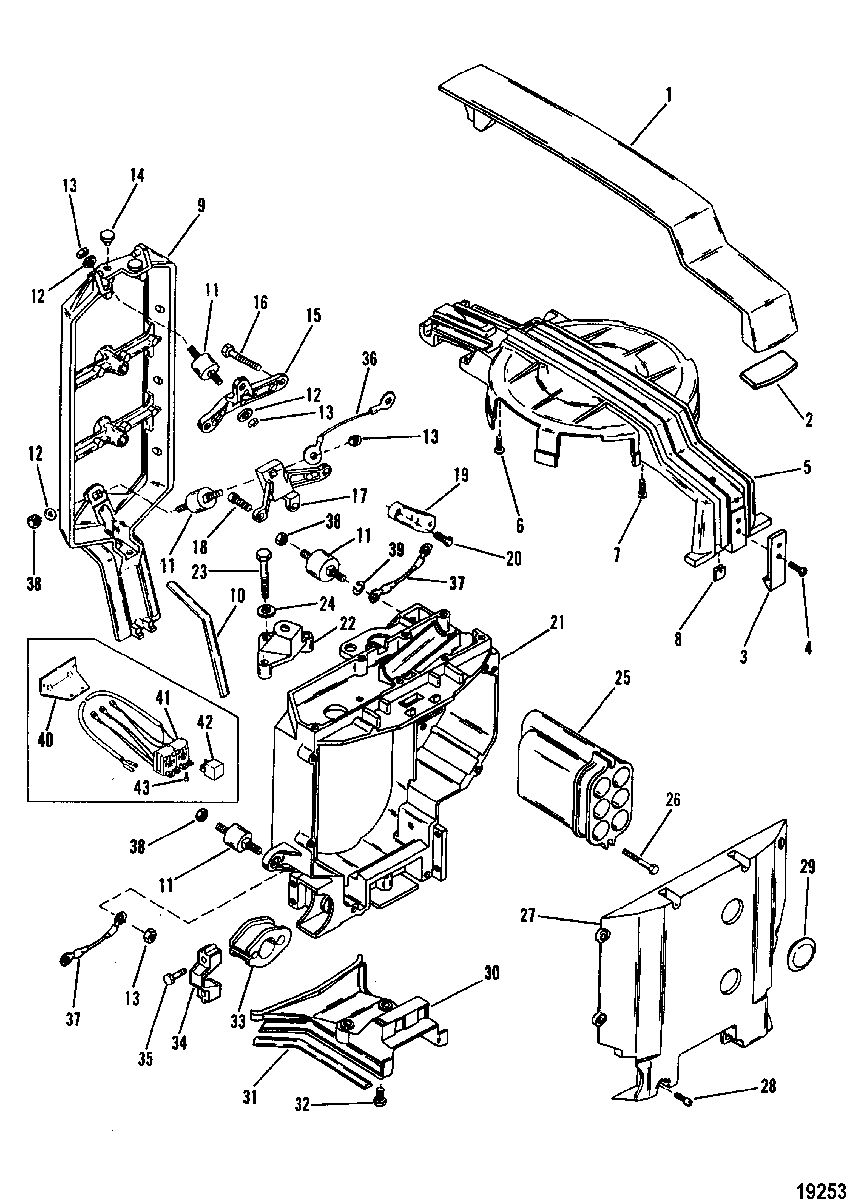

Cowl Support Brackets для Mercury - 60 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
173641A1 BRACKET, TOP (BLACK)BRACKET, TOP (BLACK)
-
173641A2 BRACKET, TOP (GRAY)BRACKET, TOP (GRAY)
-
262444 SEAL, RUBBER-TOP BRACKET/MOUNTING PLATESEAL, RUBBER-TOP BRACKET/MOUNTING PLATE
-
379652 CLIP, SUPPORT BRACKETCLIP, SUPPORT BRACKET
-
410-48409 SCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORTSCREW, (#10-16 x .625) Stainless Steel, CLIP TO SUPPORT
-
579490 SHIELD, FLYWHEELSHIELD, FLYWHEEL
-
610-37656 SCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKETSCREW, (#10-32 x .620), SHIELD TO SUPPORT BRACKET
-
710-48408 SCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKETSCREW, (#10-16 x .500), SHIELD TO SUPPORT BRACKET
-
891891 WEAR PLATE, SOUND ATENUATORWEAR PLATE, SOUND ATENUATOR
-
974510A2 BRACKET, COWL SUPPORT-REARBRACKET, COWL SUPPORT-REAR
-
10698761 SEAL, REAR BRACKET AND TOP BRACKETSEAL, REAR BRACKET AND TOP BRACKET
-
1190435 MOUNT, RUBBERMOUNT, RUBBER
-
1212-69057 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
1311-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
14269011 BUMPER, RUBBER-REAR SUPPORT BRACKETBUMPER, RUBBER-REAR SUPPORT BRACKET
-
1560116 BRACE, COWL SUPPORT BRACKET (TOP)BRACE, COWL SUPPORT BRACKET (TOP)
-
1610-76596 SCREW, (.250-20 x 1.250), SUPPORT BRACKETSCREW, (.250-20 x 1.250), SUPPORT BRACKET
-
1787764 BRACKET, REAR LOWER MOUNTBRACKET, REAR LOWER MOUNT
-
1810-76596 SCREW, (.250-20 x 1.250), REAR BRACKET ATTACHINGSCREW, (.250-20 x 1.250), REAR BRACKET ATTACHING
-
1971097 BRACKET, RUBBER MOUNTBRACKET, RUBBER MOUNT
-
2010-824941 SCREW, (.312-18 x .750), BRACKET TO CRANKCASE (3/4")SCREW, (.312-18 x .750), BRACKET TO CRANKCASE (3/4")
-
21973482 ATTENUATOR, SOUNDATTENUATOR, SOUND
-
2288684 COVER, MANUAL CHOKECOVER, MANUAL CHOKE
-
2310-32293 SCREW, (.312-24 x 1.75), COVER TO TOP COVERSCREW, (.312-24 x 1.75), COVER TO TOP COVER
-
2412-814806 WASHER, COVER SCREWWASHER, COVER SCREW
-
2573986 MANIFOLD, AirMANIFOLD, Air
-
2610-69093 SCREW, (.250-20 x 1.50), AIR MANIFOLDSCREW, (.250-20 x 1.50), AIR MANIFOLD
-
2714915T COVER, SOUND ATTENUATOR (FRONT)COVER, SOUND ATTENUATOR (FRONT)
-
2810-37655 SCREW, (#10-32 x .500), FRONT COVERSCREW, (#10-32 x .500), FRONT COVER
-
2919-73336 PLUG, FRONT COVERPLUG, FRONT COVER
-
3041128A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
31698761 SEAL, PLATESEAL, PLATE
-
3210-20540 SCREW, COVER PLATE TO SUPPORT BRACKETSCREW, COVER PLATE TO SUPPORT BRACKET
-
3325-14169 GROMMET, ELECTRICAL CABLESGROMMET, ELECTRICAL CABLES
-
3414160 CAP, RETAININGCAP, RETAINING
-
3510-14168 SCREW, (.250-20 x 1.00), CAPSCREW, (.250-20 x 1.00), CAP
-
3688238A3 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3784-65999A2 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
3811-36069 NUTNUT
-
3913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
4019686 BRACKET
SN# 0C160936 & UpBRACKET
SN# 0C160936 & Up -
4184-19758A3 HARNESS ASSEMBLY
SN# 0C160936 & UpHARNESS ASSEMBLY
SN# 0C160936 & Up -
4287-18211 RELAY SWITCH
SN# 0C160936 & UpRELAY SWITCH
SN# 0C160936 & Up -
4310-20401 SCREW, (.190-24 x .38)
SN# 0C160936 & UpSCREW, (.190-24 x .38)
SN# 0C160936 & Up
