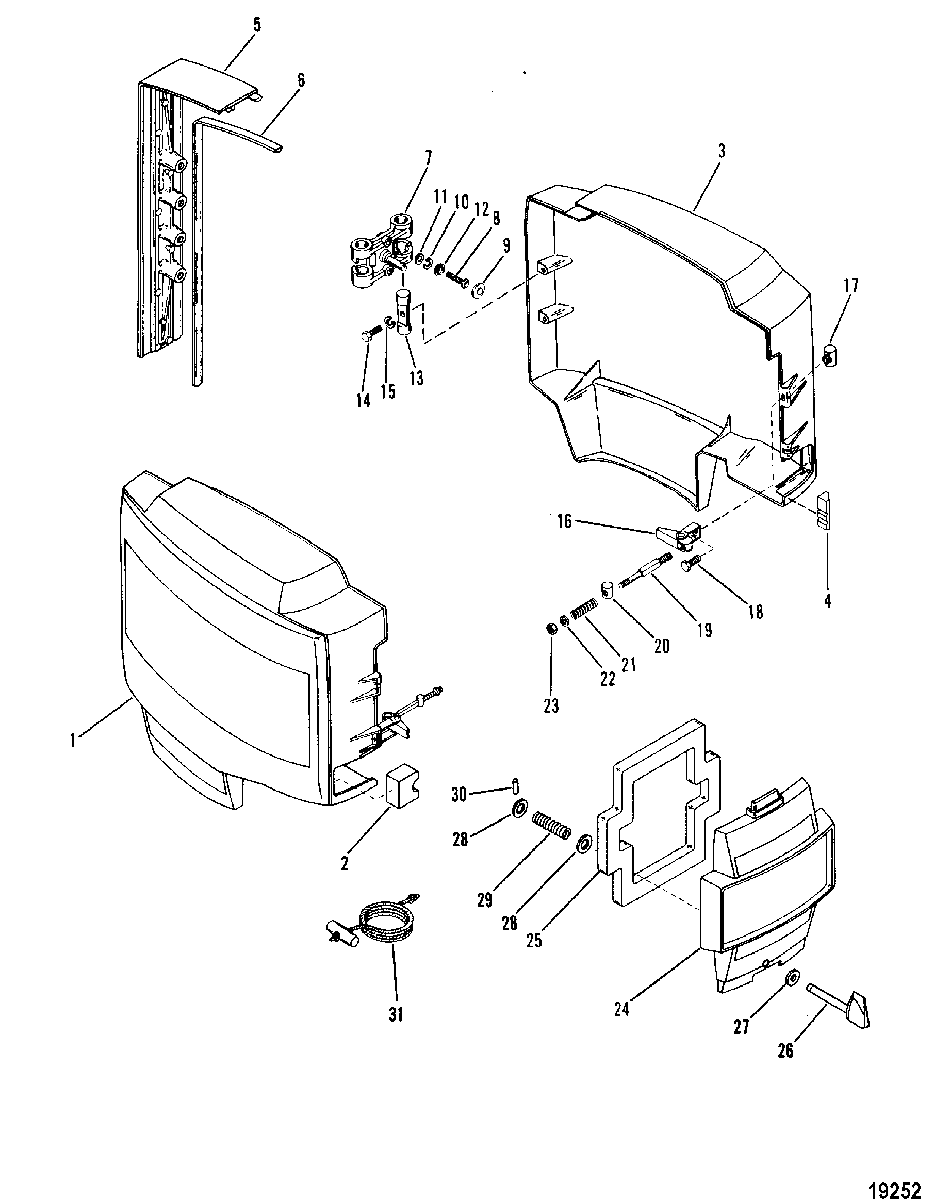

Cowling and Front Cover для Mercury - 60 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
12142-6228A1 TOP COWL ASSEMBLY (STARBOARD BLACK)TOP COWL ASSEMBLY (STARBOARD BLACK)
-
12142-6228A3 TOP COWL ASSEMBLY (STARBOARD GRAY)TOP COWL ASSEMBLY (STARBOARD GRAY)
-
226-60297 SEAL, FUEL CONNECTOR -COWLSEAL, FUEL CONNECTOR -COWL
-
32141-6227A1 TOP COWL ASSEMBLY (PORT BLACK)TOP COWL ASSEMBLY (PORT BLACK)
-
32141-6227A17 TOP COWL ASSEMBLY (PORT GRAY)TOP COWL ASSEMBLY (PORT GRAY)
-
426-60298 SEAL, CONTROL CABLES-COWLSEAL, CONTROL CABLES-COWL
-
589717T BRACKET, COWL SEALING-REARBRACKET, COWL SEALING-REAR
-
6698761 SEAL, REAR BRACKETSEAL, REAR BRACKET
-
790980 BRACKET, COWL HINGEBRACKET, COWL HINGE
-
810-455611 SCREW, (.250-20 x 1.12), HINGE BRACKET-LOWERSCREW, (.250-20 x 1.12), HINGE BRACKET-LOWER
-
810-75794 SCREW, HINGE BRACKET-UPPER (1-1/8")SCREW, HINGE BRACKET-UPPER (1-1/8")
-
975805 CAP, HINGE BRACKET SCREW (UPPER)CAP, HINGE BRACKET SCREW (UPPER)
-
1013-26992 LOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREW
-
1112-37998 WASHER, HINGE BRACKET SCREWWASHER, HINGE BRACKET SCREW
-
1212-75806 WASHER, HINGE BRACKET SCREW (UPPER)WASHER, HINGE BRACKET SCREW (UPPER)
-
1390979 PIN, COWL HINGEPIN, COWL HINGE
-
1410-28782 SCREW, (.312-18 x .880) Stainless Steel, PIN TO COWLSCREW, (.312-18 x .880) Stainless Steel, PIN TO COWL
-
1513-26993 LOCKWASHER, (.312), PIN ATTACHING SCREWLOCKWASHER, (.312), PIN ATTACHING SCREW
-
1646785A5 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1762628 BARREL, COWL LATCHBARREL, COWL LATCH
-
1810-31312 SCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARRELSCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARREL
-
1915222 BAR, ADJUSTMENT-COWL LATCHBAR, ADJUSTMENT-COWL LATCH
-
2062629 BARREL, COWL LATCHBARREL, COWL LATCH
-
2124-62624 SPRING, TENSION-COWL LATCHSPRING, TENSION-COWL LATCH
-
2212-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, ADJUSTMENT BAR TO BARRELWASHER, (.192 x .375 x .0312) Stainless Steel, ADJUSTMENT BAR TO BARREL
-
2311-859124 NUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARRELNUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARREL
-
242143-8774A6 FRONT COVER (BLACK)FRONT COVER (BLACK)
-
242143-8774A7 FRONT COVER (GRAY)FRONT COVER (GRAY)
-
25795511 BLANKET, SOUND ABSORBINGBLANKET, SOUND ABSORBING
-
2614333 KNOBKNOB
-
2712-30771 WASHERWASHER
-
2812-75246 WASHERWASHER
-
2924-30772 SPRINGSPRING
-
3017-29077 PIN, RollPIN, Roll
-
3147341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING ONLY)
