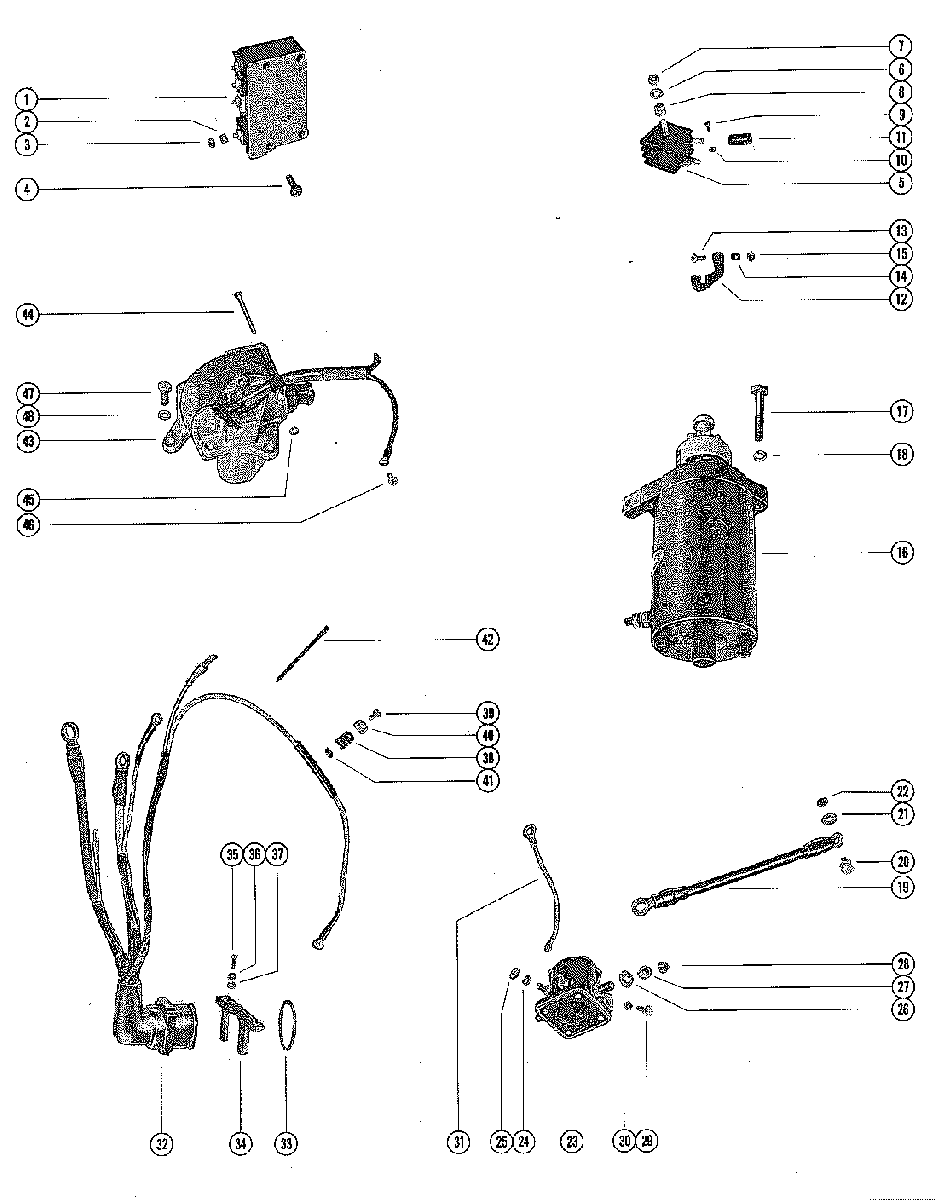

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 500 9001581 THRU 9082513

  • №
    Артикул
    Название
  • 1
    333-3213A3 SWITCH BOX ASSEMBLY, COMPLETE
    SWITCH BOX ASSEMBLY, COMPLETE
    48 180 ₽
  • 2
    12-45075 WASHER, SWITCH BOX TERMINAL
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    WASHER, SWITCH BOX TERMINAL
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 3
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
    120 ₽
  • 4
    10-69030 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8")
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8")
    0 ₽
  • 5
    8M0058226 RECTIFIER ELECTRIC
    RECTIFIER ELECTRIC
    8 500 ₽
  • 6
    13-26993 LOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRIC
    LOCKWASHER, RECTIFIER TO FRONT BRACKET ELECTRIC
    140 ₽
  • 7
    11-20922 NUT, RECTIFIER TO FRONT BRACKET ELECTRIC
    NUT, RECTIFIER TO FRONT BRACKET ELECTRIC
    0 ₽
  • 8
    23-28458 SPACER, RECTIFIER TO FRONT BRACKET ELECTRIC
    SPACER, RECTIFIER TO FRONT BRACKET ELECTRIC
    0 ₽
  • 9
    10-20055 SCREW, RECTIFIER TERMINALS (3/8") ELECTRIC
    SCREW, RECTIFIER TERMINALS (3/8") ELECTRIC
    0 ₽
  • 10
    11-826709106 NUT, RECTIFIER TERMINALS ELECTRIC
    NUT, RECTIFIER TERMINALS ELECTRIC
    340 ₽
  • 11
    32-28373 SLEEVE, RECTIFIER TERMINALS ELECTRIC
    SLEEVE, RECTIFIER TERMINALS ELECTRIC
    0 ₽
  • 12
    59757 BRACKET, RETAINER - HIGH TENSION LEAD
    BRACKET, RETAINER - HIGH TENSION LEAD
    0 ₽
  • 13
    10-24933 SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2")
    SCREW, RETAINER BRACKET TO SUPPORT BRACKET (1 1/2")
    0 ₽
  • 14
    23-33070 SPACER, RETAINER BRACKET TO SUPPORT BRACKET
    SPACER, RETAINER BRACKET TO SUPPORT BRACKET
    0 ₽
  • 15
    11-20184 NUT, RETAINER BRACKET SCREW
    NUT, RETAINER BRACKET SCREW
    120 ₽
  • 16
    50-55601A2 STARTER MOTOR ASSEMBLY - ELECTRIC
    UNITED STATES 2858814 THRU 3091050
    AUSTRALIA 2863739 THRU 3099125
    CANADA 2742142 THRU 3098195
    STARTER MOTOR ASSEMBLY - ELECTRIC
    UNITED STATES 2858814 THRU 3091050
    AUSTRALIA 2863739 THRU 3099125
    CANADA 2742142 THRU 3098195
    55 620 ₽
  • 16
    50-55601A2 STARTER MOTOR ASSEMBLY - ELECTRIC
    UNITED STATES 3091051 AND UP
    AUSTRALIA 3099126 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3098196 AND UP
    STARTER MOTOR ASSEMBLY - ELECTRIC
    UNITED STATES 3091051 AND UP
    AUSTRALIA 3099126 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3098196 AND UP
    55 620 ₽
  • 17
    10-52446 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRIC
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 5/8") ELECTRIC
    0 ₽
  • 18
    13-26993 LOCKWASHER, STARTER MOTOR SCREW ELECTRIC
    LOCKWASHER, STARTER MOTOR SCREW ELECTRIC
    140 ₽
  • 19
    84-93389A12 WIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRIC
    WIRE, STARTER MOTOR TO SOLENOID AND TOP MOUNT ELECTRIC
    750 ₽
  • 20
    10-69035 SCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRIC
    SCREW, GROUND WIRE TO STARTER MOTOR (5/8") ELECTRIC
    140 ₽
  • 21
    13-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRIC
    LOCKWASHER, GROUND WIRE FASTENING SCREW ELECTRIC
    70 ₽
  • 22
    11-20890 NUT, GROUND WIRE SCREW ELECTRIC
    NUT, GROUND WIRE SCREW ELECTRIC
    120 ₽
  • 23
    32445A1 STARTER SOLENOID - ELECTRIC
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    STARTER SOLENOID - ELECTRIC
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    7 040 ₽
  • 23
    25661T1 STARTER SOLENOID - ELECTRIC
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    STARTER SOLENOID - ELECTRIC
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    7 110 ₽
  • 24
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10) ELECTRIC
    LOCKWASHER, SOLENOID TERMINAL (#10) ELECTRIC
    60 ₽
  • 25
    11-68219 NUT, SOLENOID TERMINAL (#10) ELECTRIC
    NUT, SOLENOID TERMINAL (#10) ELECTRIC
    50 ₽
  • 26
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16") ELECTRIC
    LOCKWASHER, SOLENOID TERMINAL (5/16") ELECTRIC
    140 ₽
  • 27
    11-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16") ELECTRIC
    NUT, SOLENOID TERMINAL - INSIDE (5/16") ELECTRIC
    180 ₽
  • 28
    11-26062 NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16") ELECTRIC
    NUT, CAP - SOLENOID TERMINAL - OUTSIDE (5/16") ELECTRIC
    0 ₽
  • 29
    10-29238 SCREW, SOLENOID TO STARTER MOTOR (5/8")
    ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    SCREW, SOLENOID TO STARTER MOTOR (5/8")
    ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    0 ₽
  • 29
    10-69028 SCREW, SOLENOID TO SUPPORT BRACKET (3/4")
    ELECTRIC UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    SCREW, SOLENOID TO SUPPORT BRACKET (3/4")
    ELECTRIC UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    180 ₽
  • 30
    11-20184 NUT, STARTER SOLENOID SCREW ELECTRIC
    ELECTRIC
    NUT, STARTER SOLENOID SCREW ELECTRIC
    ELECTRIC
    120 ₽
  • 31
    46715 GROUND STRAP ASSEMBLY ELECTRIC
    GROUND STRAP ASSEMBLY ELECTRIC
    0 ₽
  • 32
    52770A1 WIRING HARNESS (INTERNAL) ELECTRIC
    WIRING HARNESS (INTERNAL) ELECTRIC
    10 060 ₽
  • 33
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS ELECTRIC
    SPRING, GARTER - INTERNAL WIRING HARNESS ELECTRIC
    0 ₽
  • 34
    54-76368 CLAMP, WIRING HARNESS ELECTRIC
    CLAMP, WIRING HARNESS ELECTRIC
    0 ₽
  • 35
    10-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRIC
    SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") ELECTRIC
    90 ₽
  • 36
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRIC
    LOCKWASHER, WIRING HARNESS CLAMP SCREW ELECTRIC
    60 ₽
  • 37
    12-847883 WASHER, WIRING HARNESS CLAMP SCREW ELECTRIC
    WASHER, WIRING HARNESS CLAMP SCREW ELECTRIC
    330 ₽
  • 38
    54-26550 CLIP, WIRING HARNESS LEAD
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    CLIP, WIRING HARNESS LEAD
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    190 ₽
  • 39
    10-29072 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    SCREW, WIRING HARNESS LEAD CLIP ATTACHING (5/8")
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    350 ₽
  • 40
    8M0084613 "D" WASHER, HARNESS LEAD CLIP ATTACHING SCREW
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    "D" WASHER, HARNESS LEAD CLIP ATTACHING SCREW
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    100 ₽
  • 41
    11-24656 NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    NUT, WIRING HARNESS LEAD CLIP ATTACHING SCREW
    , ELECTRIC UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3244337
    CANADA 2742142 THRU 3243512
    0 ₽
  • 42
    61990 STA-STRAP, WIRING HARNESS ELECTRIC
    STA-STRAP, WIRING HARNESS ELECTRIC
    120 ₽
  • 43
    332-4895A6 IGNITION COIL ASSEMBLY, COMPLETE
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    IGNITION COIL ASSEMBLY, COMPLETE
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    0 ₽
  • 43
    332-4895A6 IGNITION COIL ASSEMBLY, COMPLETE
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    IGNITION COIL ASSEMBLY, COMPLETE
    UNITED STATES 9008819 AND UP
    AUSTRALIA 3015354 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3015454 AND UP
    0 ₽
  • 44
    10-46368 SCREW, IGNITION COIL CLAMPING
    SCREW, IGNITION COIL CLAMPING
    0 ₽
  • 45
    11-8267086 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
    130 ₽
  • 46
    10-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
    SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
    0 ₽
  • 47
    10-36137 SCREW, IGNITION COIL TO BOTTOM COWL (1")
    SCREW, IGNITION COIL TO BOTTOM COWL (1")
    190 ₽
  • 48
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
    70 ₽
