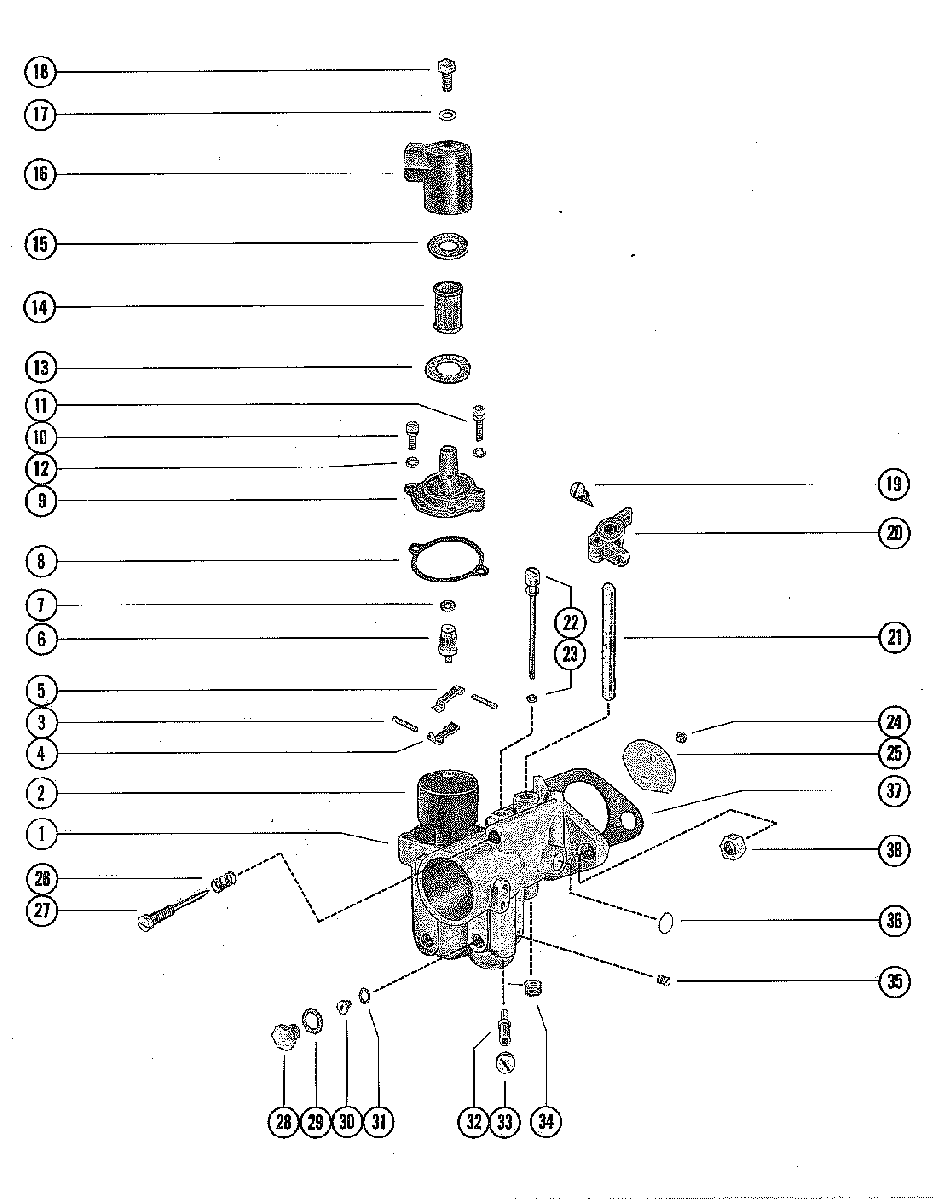

CARBURETOR ASSEMBLY, COMPLETE для Mercury - 500 9001581 THRU 9082513
-
№АртикулНазвание
-
11333-3709 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
11333-5818 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN FILTERSCREEN FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-1135 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
211399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2390-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2490-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
251399-3392 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
271399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2810-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2990-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
301399-1465 JET, MAIN FUEL (.065)JET, MAIN FUEL (.065)
-
301399-1463 JET, MAIN FUEL (.063) - STANDARDJET, MAIN FUEL (.063) - STANDARD
-
301399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
301399-1459 JET, MAIN FUEL (.059)JET, MAIN FUEL (.059)
-
3190-8M0143356 GASKET, MAIN FUEL JET (EARLY MODELS ONLY)GASKET, MAIN FUEL JET (EARLY MODELS ONLY)
-
3290-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
3310-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3510-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3690-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPREPAIR PARTS KIT (1 PER CARBURETOR)
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
3727-31402 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3811-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
