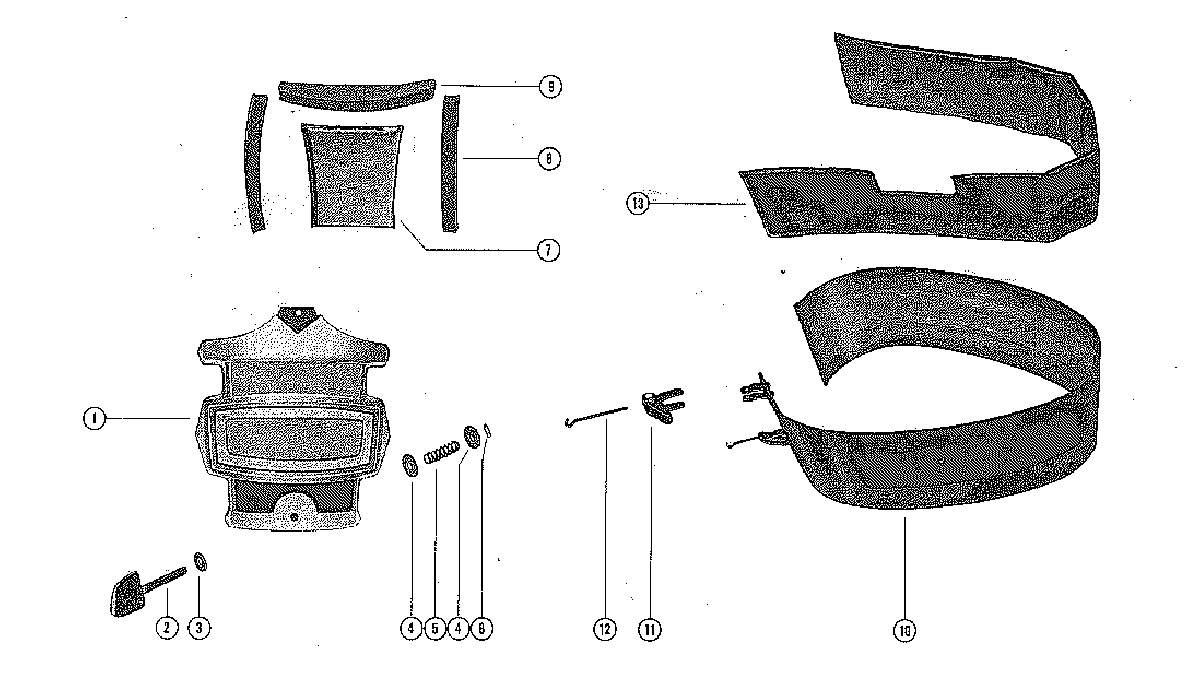

COWLING AND FRONT COVER для Mercury - 500 9001581 THRU 9082513

  • №
    Артикул
    Название
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
    COWL FRONT COVER ASSEMBLY
    UNITED STATES 2858814 THRU 3235062
    AUSTRALIA 2863739 THRU 3015353
    CANADA 2742142 THRU 3015453
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
    COWL FRONT COVER ASSEMBLY
    UNITED STATES 3008819 THRU 3235062
    AUSTRALIA 3015354 THRU 3244337
    CANADA 3015454 THRU 3243512
  • 1
    2182-7927A5 COWL FRONT COVER ASSEMBLY
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
    COWL FRONT COVER ASSEMBLY
    UNITED STATES 3235063 AND UP
    AUSTRALIA 3244338 AND UP
    BELGIUM 9001581 AND UP
    CANADA 3243513 AND UP
  • 2
    56848 KNOB, COWL FRONT COVER FASTENING
    KNOB, COWL FRONT COVER FASTENING
  • 3
    12-30771 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 4
    12-59572 WASHER, COVER FASTENING KNOB
    WASHER, COVER FASTENING KNOB
  • 5
    24-30772 SPRING, TENSION - COVER FASTENING KNOB
    SPRING, TENSION - COVER FASTENING KNOB
  • 6
    17-29077 PIN, ROLL - TENSION SPRING TO KNOB
    PIN, ROLL - TENSION SPRING TO KNOB
  • 7
    38674 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • 8
    31095 SEAL, SOUND - LOWER SECTION
    SEAL, SOUND - LOWER SECTION
  • 9
    38133 SEAL, SOUND - UPPER SECTION
    SEAL, SOUND - UPPER SECTION
  • 10
    2118-3247A3 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 11
    46785A1 COWL LATCH ASSEMBLY
    COWL LATCH ASSEMBLY
  • 12
    30413 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 13
    37794 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • --
    92-86166Q1 GLUE (BLANKET ADHESIVE)
    GLUE (BLANKET ADHESIVE)
