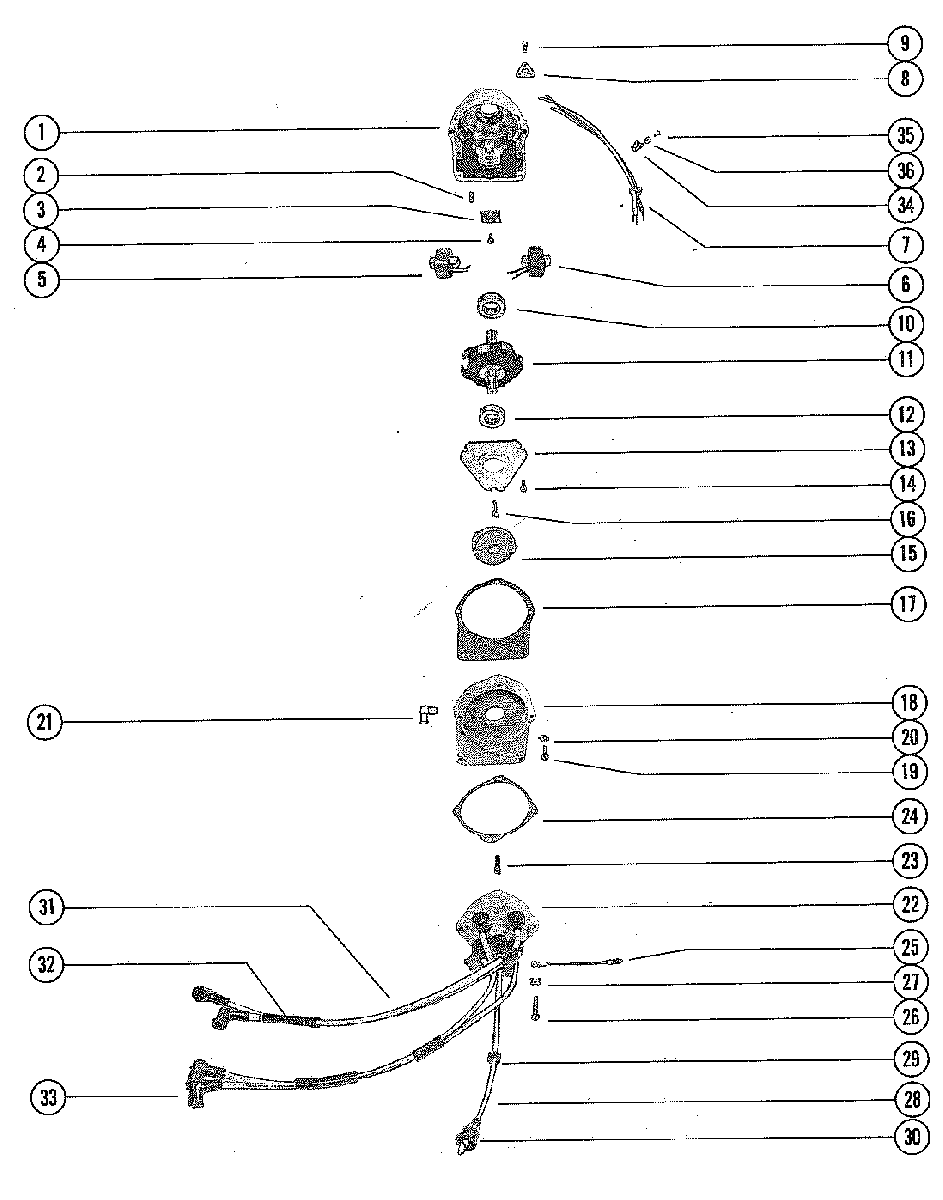

IGNITION DRIVER ASSEMBLY, COMPLETE для Mercury - 500 4141000 THRU 4357639
-
№АртикулНазвание
-
-333-4674A3 IGNITION DRIVER ASEMBLY, COMPLETEIGNITION DRIVER ASEMBLY, COMPLETE
-
1333-4674A3 HOUSING, IGNITION DRIVERHOUSING, IGNITION DRIVER
-
210-47183 SCREW, SET - COIL ASSEMBLY FASTENINGSCREW, SET - COIL ASSEMBLY FASTENING
-
3333-3172A1 TERMINAL BOARD ASSEMBLY, IGNITION DRIVERTERMINAL BOARD ASSEMBLY, IGNITION DRIVER
-
410-47182 SCREW, TERMINAL BOARD ASSEBMLY FASTENING (1/2")SCREW, TERMINAL BOARD ASSEBMLY FASTENING (1/2")
-
5333-3175 COIL ASSEMBLY, IGNITION DRIVER (RED)COIL ASSEMBLY, IGNITION DRIVER (RED)
-
6333-3176 COIL ASSEMBLY, IGNITION DRIVE (BLUE)COIL ASSEMBLY, IGNITION DRIVE (BLUE)
-
7333-3173 HARNESS, PRIMARY CABLE - IGNITION DRIVERHARNESS, PRIMARY CABLE - IGNITION DRIVER
-
854-47188 CLAMP, PRIMARY HARNESS CABLE - IGNITIN DRIVERCLAMP, PRIMARY HARNESS CABLE - IGNITIN DRIVER
-
910-28259 SCREW, PRIMARY HARNESS CABLE FASTENING (5/8")SCREW, PRIMARY HARNESS CABLE FASTENING (5/8")
-
1030-24998 BEARING, BALL - DRIVER END (1 3/8" O.D.)BEARING, BALL - DRIVER END (1 3/8" O.D.)
-
11333-4674A3 SHAFT ASSEMBLY, IGNITION DRIVERSHAFT ASSEMBLY, IGNITION DRIVER
-
1230-49090 BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)BEARING, BALL - IGNITION DRIVER END (1 1/4" O.D.)
-
13333-3166 CAP, BEARING - IGNITION DRIVER HOUSINGCAP, BEARING - IGNITION DRIVER HOUSING
-
1410-37656 SCREW, BEARING CAP FASTENING (9/16")SCREW, BEARING CAP FASTENING (9/16")
-
15333-3143 ROTOR ASSEMBLY, IGNITION DRIVERROTOR ASSEMBLY, IGNITION DRIVER
-
1654-47187 SPRING, CLIP - IGNIITION DRIVER ROTORSPRING, CLIP - IGNIITION DRIVER ROTOR
-
1727-61031 GASKET, IGNITION DRIVER COVERGASKET, IGNITION DRIVER COVER
-
18333-4639A1 COVER, IGNITION DRIVERCOVER, IGNITION DRIVER
-
1910-20189 SCREW, IGNITION DRIVER COVER FASTENING 3/4"SCREW, IGNITION DRIVER COVER FASTENING 3/4"
-
2014-29157 TAB WASHER, IGNITION DRIVER COVER FASTENING SCREWTAB WASHER, IGNITION DRIVER COVER FASTENING SCREW
-
2158807A1 FLAME ARRESTOR, IGNITION DRIVER COVERFLAME ARRESTOR, IGNITION DRIVER COVER
-
22333-3142A3 CAP ASSEMBLY, IGNITION DRIVERCAP ASSEMBLY, IGNITION DRIVER
-
23333-3165A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2427-47190 GASKET, IGNITION DRIVER CAPGASKET, IGNITION DRIVER CAP
-
25394-1134A2 GROUND STRAP ASSEMBLYGROUND STRAP ASSEMBLY
-
2610-47181 SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")SCREW, IGNITION DRIVER CAP FASTENING (1 7/8")
-
2610-73013 SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")SCREW, IGNITION DRIVER CAP FASTENING (1 1/2")
-
2714-29157 TAB WASHER, IGNITION DRIVER CAP FASTENING SCREWTAB WASHER, IGNITION DRIVER CAP FASTENING SCREW
-
281504-250A1 LEAD ASSEMBLY, HIGH TENSION DRIVER TO COILLEAD ASSEMBLY, HIGH TENSION DRIVER TO COIL
-
--8M0084600 TERMINAL, HIGH TENSION LEADTERMINAL, HIGH TENSION LEAD
-
--85-94589 SLEEVE, HIGH TENSION LEAD TERMINAL COVERSLEEVE, HIGH TENSION LEAD TERMINAL COVER
-
2925-26547 GROMMET, COIL WIRE BRACKETGROMMET, COIL WIRE BRACKET
-
30332-2854T01 BOOT, HIGH TENSION LEAD CABLEBOOT, HIGH TENSION LEAD CABLE
-
3184-813715A1 SPARK PLUG LEAD ASSEMBLY (27 1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (27 1/2")
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
--85-94589 SLEEVE, SPARK PLUG LEAD TO IGNITION DRIVERSLEEVE, SPARK PLUG LEAD TO IGNITION DRIVER
-
3232-46768 SLEEVE, SPARK PLUG LEAD (6")SLEEVE, SPARK PLUG LEAD (6")
-
3385-63709A1 PROTECTOR ASSEMBLY, SPARK PLUG LEADSPROTECTOR ASSEMBLY, SPARK PLUG LEADS
-
--59126 SEPARATOR, IGNITION LEADSSEPARATOR, IGNITION LEADS
-
3454-22627 CLIP, IGNITION DRIVER LEADCLIP, IGNITION DRIVER LEAD
-
3510-25764 SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")SCREW, IGNITION DRIVE LEAD TO SWITCH BOX (1/2")
-
368M0084613 "D" WASHER, IGNITION DRIVER LEAD SCREW"D" WASHER, IGNITION DRIVER LEAD SCREW
