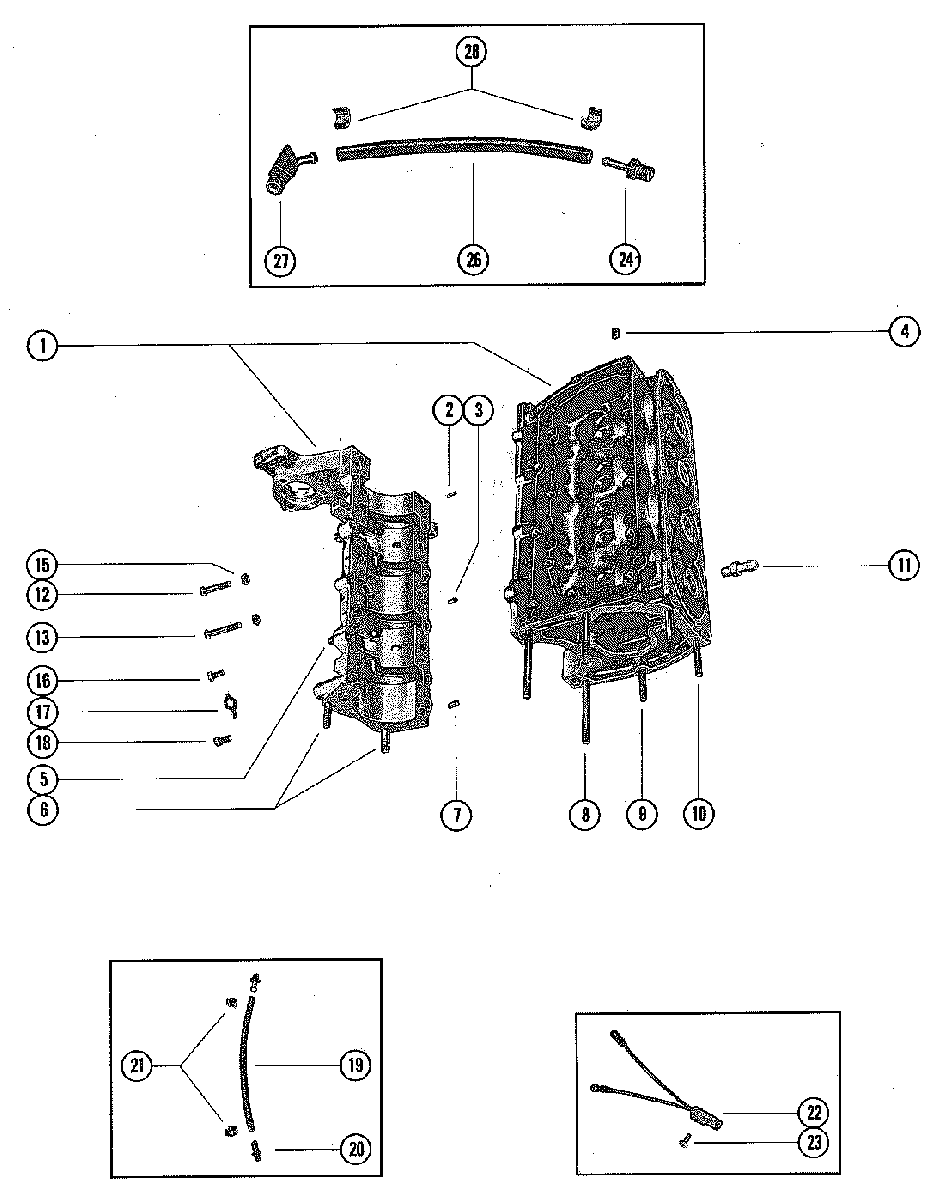

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 500 4141000 THRU 4357639

  • №
    Артикул
    Название
  • 1
    831-5347A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    17-20032 DOWEL PIN. CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN. CYLINDER BLOCK TO MAIN BEARING
  • 3
    17-20323 DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO CENTER MAIN BEARING
  • 4
    22-328022 PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
    PLUG, PIPE - WATER PRESSURE AND BALANCE TUBE HOLES
  • 5
    16-64936 STUD, CARBURETOR MOUNTING (1 1/4")
    STUD, CARBURETOR MOUNTING (1 1/4")
  • 6
    16-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 9/16")
  • 7
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 8
    16-68168 STUD CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
    STUD CYL. BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
  • 9
    16-68166 STUD, CYL. BLOCK TO DRIVE SHAFT HOUSING 3 5/16")
    STUD, CYL. BLOCK TO DRIVE SHAFT HOUSING 3 5/16")
  • 10
    16-68167 STUD, CYL. CLOCK TO DRIVE SHAFT HOUSING (1 15/16")
    STUD, CYL. CLOCK TO DRIVE SHAFT HOUSING (1 15/16")
  • 11
    22-291112 CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK
    CONNECTOR, WATER TELL TALE HOLE - CYLINDER BLOCK
  • 12
    10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 12
    10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")
  • 13
    10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
  • 15
    11-29250 NUT, CRANKCASE SCREW
    NUT, CRANKCASE SCREW
  • 16
    10-98260 SCREW, MAIN BEARING LOCKING (5/8")
    SCREW, MAIN BEARING LOCKING (5/8")
  • 17
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 18
    10-20359 SCREW, CENTER MAIN BEARING LOCKING (1")
    SCREW, CENTER MAIN BEARING LOCKING (1")
  • 19
    32-8M0108355 TUBE, BALANCE - MAIN BEARING (8")
    TUBE, BALANCE - MAIN BEARING (8")
  • 20
    22-291112 CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
    CONNECTOR, BALANCE TUBE TO CYLINDER BLOCK
  • 21
    54-20386 CLAMP, BALANCE TUBE TO CONNECTORS
    CLAMP, BALANCE TUBE TO CONNECTORS
  • 22
    58124A8 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 23
    10-48408 SCREW, MERCURY SWITCH TO EXH. MANIFORLD COVER (1/2")
    SCREW, MERCURY SWITCH TO EXH. MANIFORLD COVER (1/2")
  • 24
    21-64871A2 CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)
    CHECK VALVE ASSEMBLY, BLEED HOSE (UPPER)
  • 26
    32-9938779 HOSE, CYLINDER BLEED
    HOSE, CYLINDER BLEED
  • 27
    22-56759 CONNECTOR, CYLINDER BLEED HOSE (LOWER)
    CONNECTOR, CYLINDER BLEED HOSE (LOWER)
  • 28
    54-20387 CLAMP, BLEED HOSE ATTACHING
    CLAMP, BLEED HOSE ATTACHING
