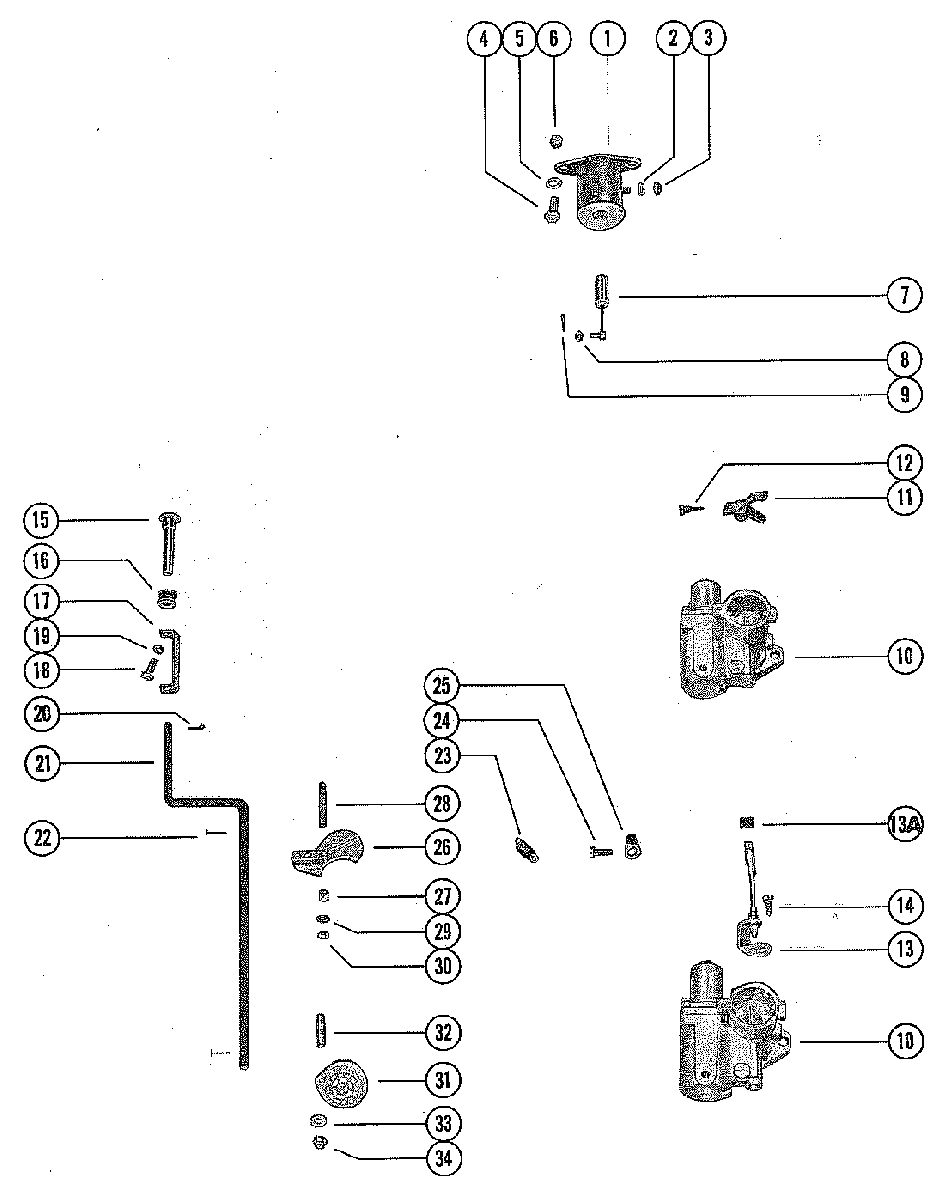

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 500 4141000 THRU 4357639

№

Артикул

Название
1

89-889274 CHOKE SOLENOID-ELECTRIC

CHOKE SOLENOID-ELECTRIC

0 ₽
2

13-26996 LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC

LOCKWASHER, CHOKE SOLENOID TERMINAL ELECTRIC

60 ₽
3

11-68219 NUT, CHOKE SOLENOID TERMINAL ELECTRIC

NUT, CHOKE SOLENOID TERMINAL ELECTRIC

50 ₽
4

10-26066 SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC

SCREW, CHOKE SOLENOID TO FRONT BRACKET ELECTRIC

0 ₽
5

13-26993 LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC

LOCKWASHER, CHOKE SOLENOID SCREW ELECTRIC

140 ₽
6

11-22053 NUT, CHOKE SOLENOID SCREW ELECTRIC

NUT, CHOKE SOLENOID SCREW ELECTRIC

180 ₽
7

54283A2 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC

PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID ELECTRIC

0 ₽
8

12-30164 WASHER, PLUNGER AND LINK ELECTRIC

WASHER, PLUNGER AND LINK ELECTRIC

130 ₽
9

18-26953 COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC

COTTER PIN, LINK TO UPPER CHOKE SHUTTER ELECTRIC

320 ₽
10

1333-5818 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607

CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4141000 THRU 4280269
AUSTRALIA 8029515 THRU 8030089 BELGIUM 9082514 THRU 9100588 CANADA 7051983 THRU 7060607

0 ₽
10

1333-5921 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP

CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4280270 AND UP
AUSTRALIA NONE BUILT
BELGIUM 9100589 AND UP
CANADA 7060608 AND UP

0 ₽
11

74371 CLUSTER, THROTTLE LEVER (UPPER CARB.)

CLUSTER, THROTTLE LEVER (UPPER CARB.)

0 ₽
12

1395-6027 SCREW, CLUSTER TO THROTTLE LEVER

SCREW, CLUSTER TO THROTTLE LEVER

250 ₽
13

53719A2 PICK-UP BRACKET ASSEMBLY

PICK-UP BRACKET ASSEMBLY

5 020 ₽
13A

28-89694 INSET COUPLING, THROTTLE SHAFT

INSET COUPLING, THROTTLE SHAFT

480 ₽
14

10-53651 SCREW, PICK-UP BRACKET (3/4")

SCREW, PICK-UP BRACKET (3/4")

0 ₽
15

90242A1 KNOB, CHOKE ROD

KNOB, CHOKE ROD

0 ₽
16

25-20116 GROMMET, CHOKE KNOB

GROMMET, CHOKE KNOB

280 ₽
17

22462 "U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)

"U" LINK, CHOKE ROD TO CHOKE KNOB (MANUAL)

0 ₽
17

46303 "U"LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)

"U"LINK, CHOKE ROD TO CHOKE KNOB (ELECTRIC)

0 ₽
18

10-69022 SCREW, "U" LINK TO CHOKE KNOB

SCREW, "U" LINK TO CHOKE KNOB

100 ₽
19

13-26996 LOCKWASHER, "U" LINK SCREW

LOCKWASHER, "U" LINK SCREW

60 ₽
20

18-26811 COTTER PIN, "U" LINK TO CHOKE ROD

COTTER PIN, "U" LINK TO CHOKE ROD

110 ₽
21

47958 ROD, CHOKE(MANUAL)

ROD, CHOKE(MANUAL)

0 ₽
21

46304 ROD, CHOKE(ELECTRIC)

ROD, CHOKE(ELECTRIC)

0 ₽
22

17-25391 RIVET, CHOKE SHUTTER TO CHOKE ROD

RIVET, CHOKE SHUTTER TO CHOKE ROD

0 ₽
23

24-28965 SPRING, TENSION - CHOKE ROD TO CARBURETOR

SPRING, TENSION - CHOKE ROD TO CARBURETOR

0 ₽
24

10-28713 SCREW, TENSION SPRING TO CARBURETOR

SCREW, TENSION SPRING TO CARBURETOR

0 ₽
25

27711 RETAINER, SPRING

RETAINER, SPRING

0 ₽
26

38604 SHUTTER, CHOKE - CARBURETOR

SHUTTER, CHOKE - CARBURETOR

0 ₽
27

23-30438 BUSHING, NYLON - UPPER CHOKE SHUTTER(ELECTRIC)

BUSHING, NYLON - UPPER CHOKE SHUTTER(ELECTRIC)

0 ₽
28

16-69036 STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")

STUD, CARBURETOR - CHOKE SHUTTER PIVOT (1 3/8")

0 ₽
29

12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD

WASHER, CHOKE SHUTTER CARBURETOR STUD

130 ₽
30

11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD

NUT, CHOKE SHUTTER TO CARBURETOR STUD

120 ₽
31

35-56197 SCREEN, FILTER - CARBURETOR

SCREEN, FILTER - CARBURETOR

0 ₽
32

16-69037 STUD, FILTER SCREEN TO CARBURETOR (1 1/8")

STUD, FILTER SCREEN TO CARBURETOR (1 1/8")

0 ₽
33

12-30164 WASHER, FILTER SCREEN STUD

WASHER, FILTER SCREEN STUD

130 ₽
34

11-20110 NUT, FILTER SCREEN STUD

NUT, FILTER SCREEN STUD

120 ₽
