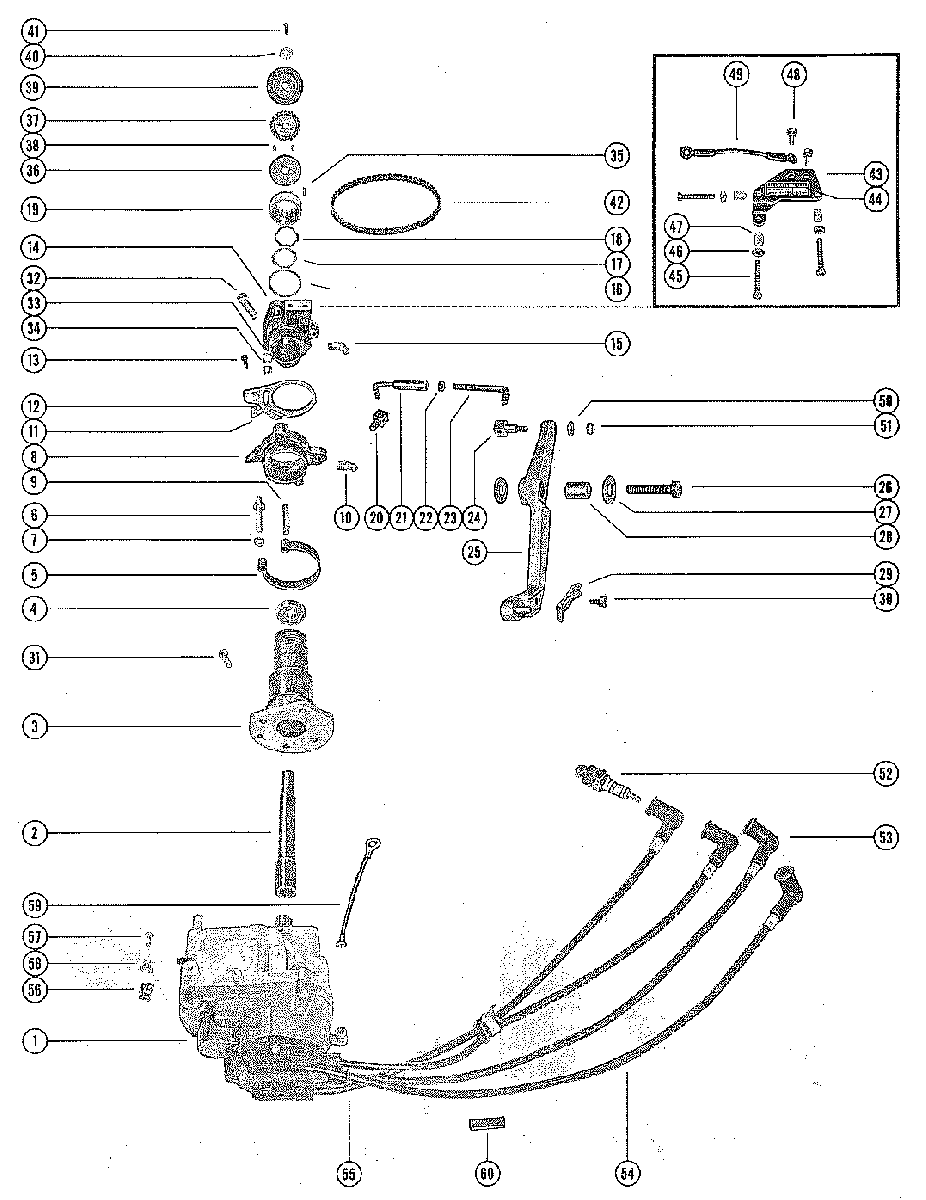

MAGNETO ADAPTOR AND PILOT ASSEMBLY для Mercury - 500 1770179 THRU 2116317
-
№АртикулНазвание
-
1394-2271A2 MAGNETO ASSEMBLY, COMPLETE (4D-4)MAGNETO ASSEMBLY, COMPLETE (4D-4)
-
245-27951 SHAFT, MAGNETO DRIVESHAFT, MAGNETO DRIVE
-
-29321A9 MAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETEMAGNETO ADAPTOR AND PILOT ASSEMBLY, COMPLETE
-
339560A1 MAGNETO PILOT ASSEMBLYMAGNETO PILOT ASSEMBLY
-
339560A1 MAGNETO PILOT ASSEMBLYMAGNETO PILOT ASSEMBLY
-
430-20066 BALL BEARING, MAGNETO PILOTBALL BEARING, MAGNETO PILOT
-
524-27944 SPRING, HORSESHOE - MAGNETO PILOTSPRING, HORSESHOE - MAGNETO PILOT
-
617-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOTPIN, ANCHOR - HORSESHOE SPRING TO PILOT
-
712-29245 WASHER, HORSESHOE SPRING TO ANCHOR PINWASHER, HORSESHOE SPRING TO ANCHOR PIN
-
827946A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
917-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
1022-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1138230A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1223-26602 BUSHING, NYLON - THROTTLE ACTUATORBUSHING, NYLON - THROTTLE ACTUATOR
-
1310-31009 SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLARSCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR
-
1466856A1 ADAPTOR, MAGNETOADAPTOR, MAGNETO
-
1522-25094 FITTING, GREASE - MAGNETO ADAPTORFITTING, GREASE - MAGNETO ADAPTOR
-
1612-27939 WASHER, MAGNETO PILOTWASHER, MAGNETO PILOT
-
1714-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
1813-27959 WASHER, WAVE - MAGNETO BALL BEARING TENSIONWASHER, WAVE - MAGNETO BALL BEARING TENSION
-
1927955 CAP, MAGNETO ADAPTOR AND PILOT FASTENINGCAP, MAGNETO ADAPTOR AND PILOT FASTENING
-
2027947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
2125996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
2211-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
2337700 ROD, LINK - UPPERROD, LINK - UPPER
-
2427948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
2553143A2 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
2610-98556 SCREW, THROTTLE LEVER TO EXHAUST COVERSCREW, THROTTLE LEVER TO EXHAUST COVER
-
2712-8M0042641 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
2823-29529 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
2924-37934 SPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVERSPRING, QUICK DISCONNECT - THROTTLE CABLE TO THROTTLE LEVER
-
3010-38069 SCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVERSCREW, ANCHOR - QUICK DISCONNECT SPRING TO THROTTLE LEVER
-
3110-30110 SCREW, ADAPTOR AND PILOT TO MAGNETOSCREW, ADAPTOR AND PILOT TO MAGNETO
-
3210-78841 SCREW ADAPTOR AND PILOT TO CRANKCASESCREW ADAPTOR AND PILOT TO CRANKCASE
-
3312-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREWWASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
3411-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREWNUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
-
3528-28657 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
3629784 HUB, DRIVEN PULLEYHUB, DRIVEN PULLEY
-
3729783A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3817-24873 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
3929785 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
4012-20138 WASHER, PULLEY CLAMPING SCREWWASHER, PULLEY CLAMPING SCREW
-
4110-32228 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
4220140 BELT, TIMINGBELT, TIMING
-
4353458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
44N.S.S. DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
-
44N.S.S. DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)DECAL, THROTTLE STOP PLATE (STOP ADJUSTMENTS)
-
4510-24933 SCREW, THROTTLE STOP ADJUSTINGSCREW, THROTTLE STOP ADJUSTING
-
4611-20088 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
4726852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
4810-69035 SCREW, THROTTLE STOP PLATE TO ADAPTORSCREW, THROTTLE STOP PLATE TO ADAPTOR
-
4937996 GROUND STRAP, THROTTLE STOP PLATE SCREWGROUND STRAP, THROTTLE STOP PLATE SCREW
-
5012-29245 WASHER, UPPER SWIVEL TO THROTTLE LEVERWASHER, UPPER SWIVEL TO THROTTLE LEVER
-
5111-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVERNUT, UPPER SWIVEL TO THROTTLE LEVER
-
5233-813413 SPARK PLUGSPARK PLUG
-
5385-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
5484-821945A46 CABLE, HIGH TENSION LEAD - SPARK PLUGCABLE, HIGH TENSION LEAD - SPARK PLUG
-
5525-25429 "O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER"O" RING, HIGH TENSION LEAD CABLE TO END CAP COVER
-
5654-25231 CLIP, HARNESS LEADS TO MAGNETOCLIP, HARNESS LEADS TO MAGNETO
-
5710-20401 SCREW, LEAD CLIP TO MAGNETOSCREW, LEAD CLIP TO MAGNETO
-
588M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
-
59394-1134A1 GROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASEGROUND STRAP ASSEMBLY, MAGNETO TO CRANKCASE
-
6032-46768 SLEEVE, HIGH TENSION LEAD (3")SLEEVE, HIGH TENSION LEAD (3")
